Harmonic Balancer - Crankshaft Pulley: Service and Repair

NOTE: When installing and tightening the pulley, follow the procedure below.

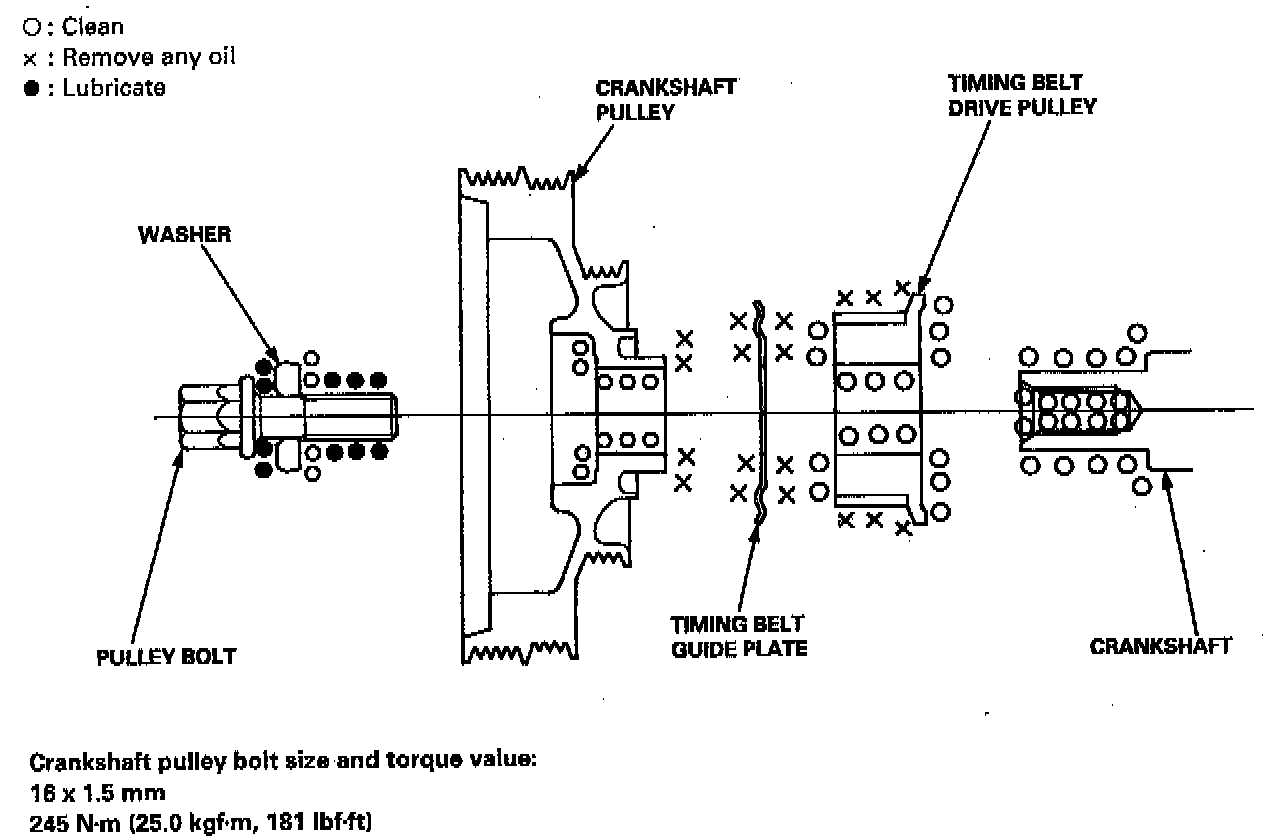

1. Clean, remove any oil and lubricate points shown.
^ Tighten the 16 X 1.5 mm crankshaft pulley bolt to 245 Nm (181 ft. lbs.)





NOTE:
^ Do not use an impact wrench when installing.
^ Make sure the thumb screw in the handle aligns with the hole in the holder attachment.
