General Specifications

TIGHTENING SPECIFICATIONS

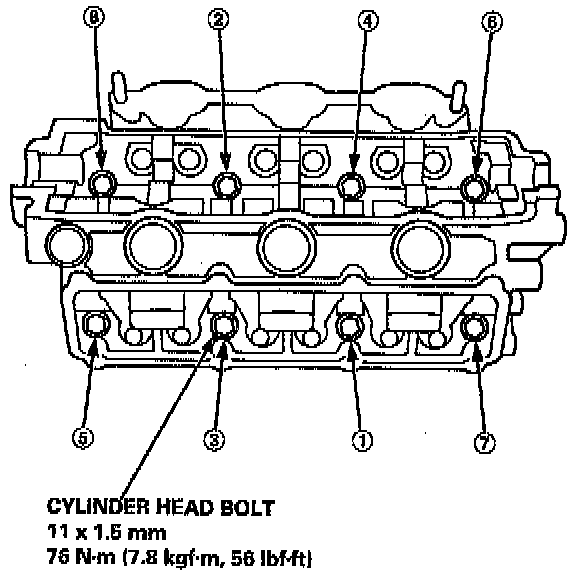

Cylinder Head Bolts; Tighten In Sequence To: 76 Nm (56 ft. lbs.)
Oil Plug Sealing Bolts: 39 Nm (29 ft. lbs.)
Top Cover Mounting Bolts: 15 Nm (11 ft. lbs.)

DIMENSIONS
Standard Head Height (New): 132.93 - 133.07 mm (5.233 - 5239 inch)
Warpage: 0.05 mm (0.002 inch)
