Valve Guide: Testing and Inspection

VALVE MOVEMENT

Traditional Method

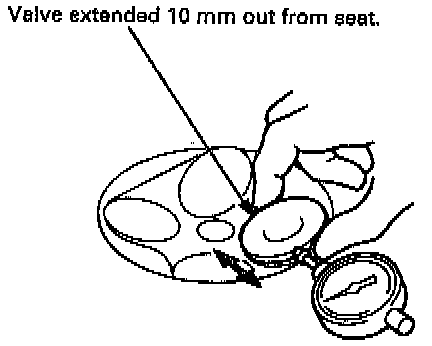

Measure the guide-to-stem clearance with a dial indicator while rocking the stem in the direction of normal thrust (wobble method).

^ Intake Valve Stem-to-Guide Clearance:
- Standard (New): 0.04-0.10 mm (0.002-0.004 in)
- Service Limit: 0.16 mm (0.006 in)
- Exhaust Valve Stem-to-Guide Clearance:
- Standard (New): 0.10-0.16 mm (0.004-0.006 in)
- Service Limit: 0.22 mm (0.009 in)

NOTE:
^ If measurement exceeds the service limit, recheck using a new valve.
^ If measurement is now within service limit, reassemble using a new valve.
^ If measurement still exceeds limit, recheck using alternate method below, then replace valve and guide, if necessary.

Alternate Method
1. Subtract the O.D. of the valve stem, measured with a micrometer, from the I.D. of the valve guide, measured with an inside micrometer or ball gauge.
2. Take the measurements in three places along the valve stem and three places inside the valve guide.
3. The difference between the largest guide measurement and the smallest stem measurement should not exceed the service limit.
^ Intake Valve Stem-to-Guide Clearance:
- Standard (New): 0.020-0.050 mm (0.0008-0.0020 in)
- Service Limit: 0.08 mm (0.003 in)
^ Exhaust Valve Stem-to-Guide Clearance:
- Standard (New): 0.050-0.080 mm (0.0020-0.0031 in)
- Service Limit: 0.11 mm (0.004 in)
