Oil Pump: Service and Repair

1. Drain engine oil, then turn crankshaft so No. 1 piston is at TDC.
2. Remove splash shield, then remove timing belt.
3. Remove CKP sensor, then remove timing belt tensioner.
4. Remove stopper plate, then remove timing belt drive pulley.
5. Remove oil filter and oil filter base.

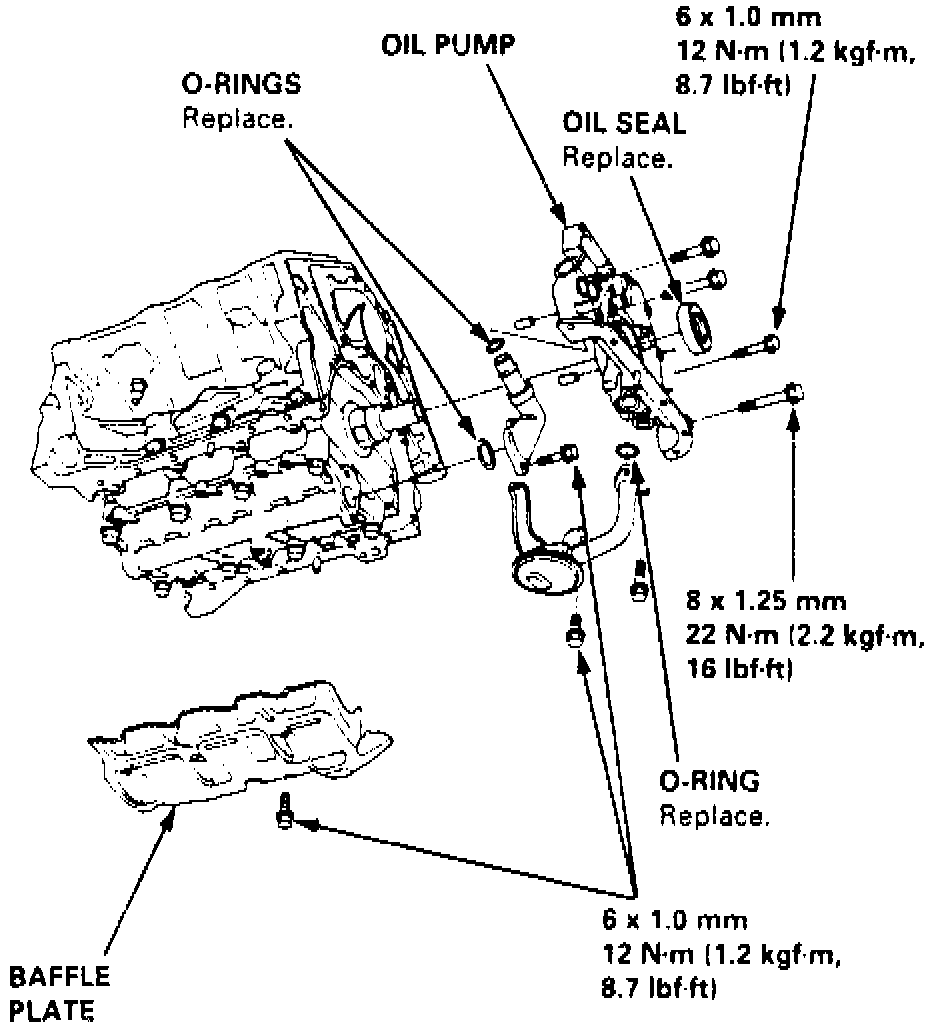

Fig. 58 Oil Pump Removal:

6. Remove oil screen baffle plate, oil pass pipe and oil pump, Fig. 58.
7. Reverse procedure to install.
