Compressor Clutch Coil: Testing and Inspection

CLUTCH FIELD COIL INSPECTION

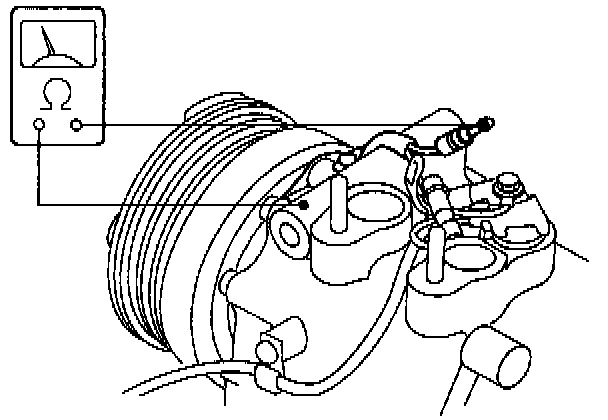

- Check the field coil for resistance.

Field Coil Resistance: 3.2 +/- 0.15 ohm at 68°F (20°C)

- If resistance is not within specifications, replace the field coil.
