Reassembly

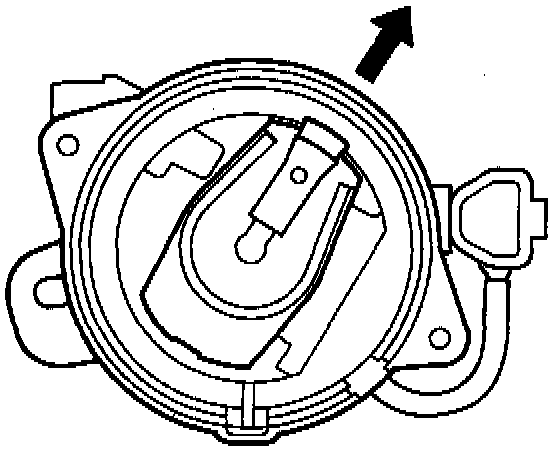

1. When reassembling the distributor, install the distributor ignition rotor so that it faces in the direction shown (toward the No. 1 cylinder).

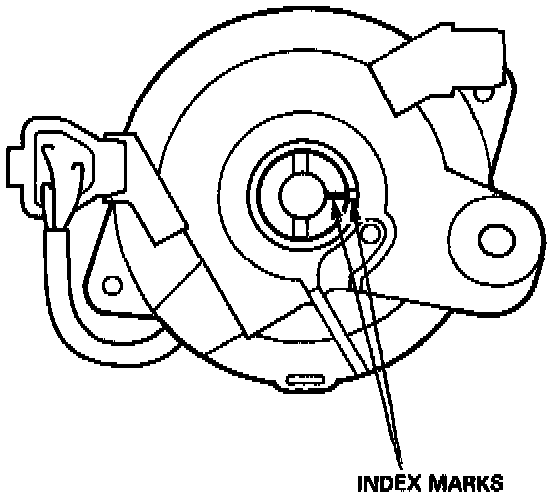

2. Align the index mark on the distributor ignition housing with the index mark on the end of the shaft.
