Removal

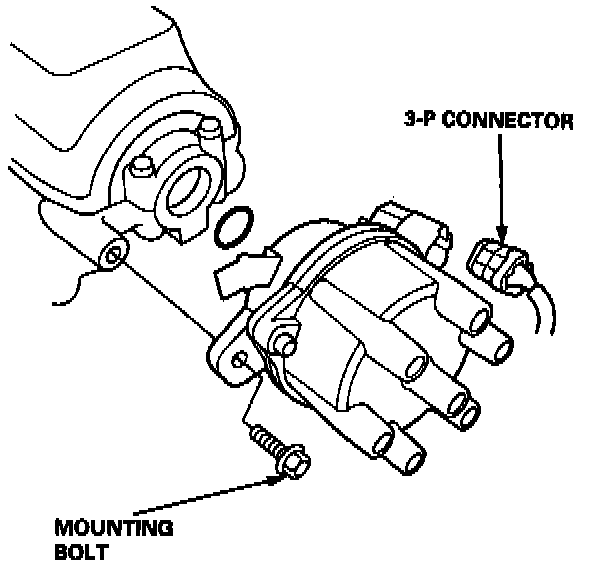

NOTE: Before you remove the distributor, bring the No. 1 piston to compression stroke TDC.




1. Disconnect the 3-P connector from the distributor.
2. Disconnect the ignition wires from the distributor ignition cap.
3. Remove the distributor mounting bolt, then remove the distributor from the cylinder head.
