Home >> Honda >> 1996 >> Accord Sedan V6-2.7L SOHC (24 Valve) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> A/T Shift Position Switch Signal

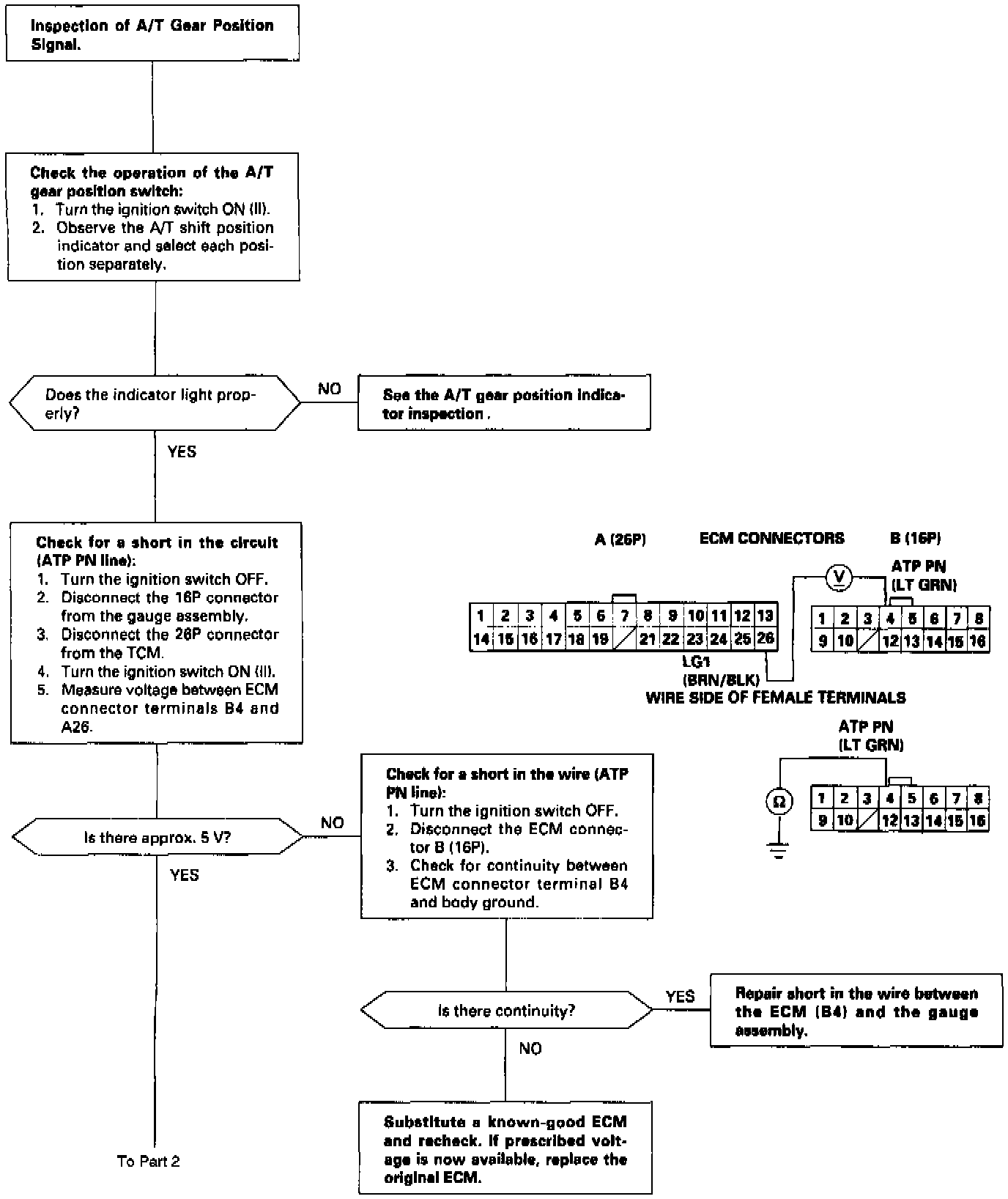

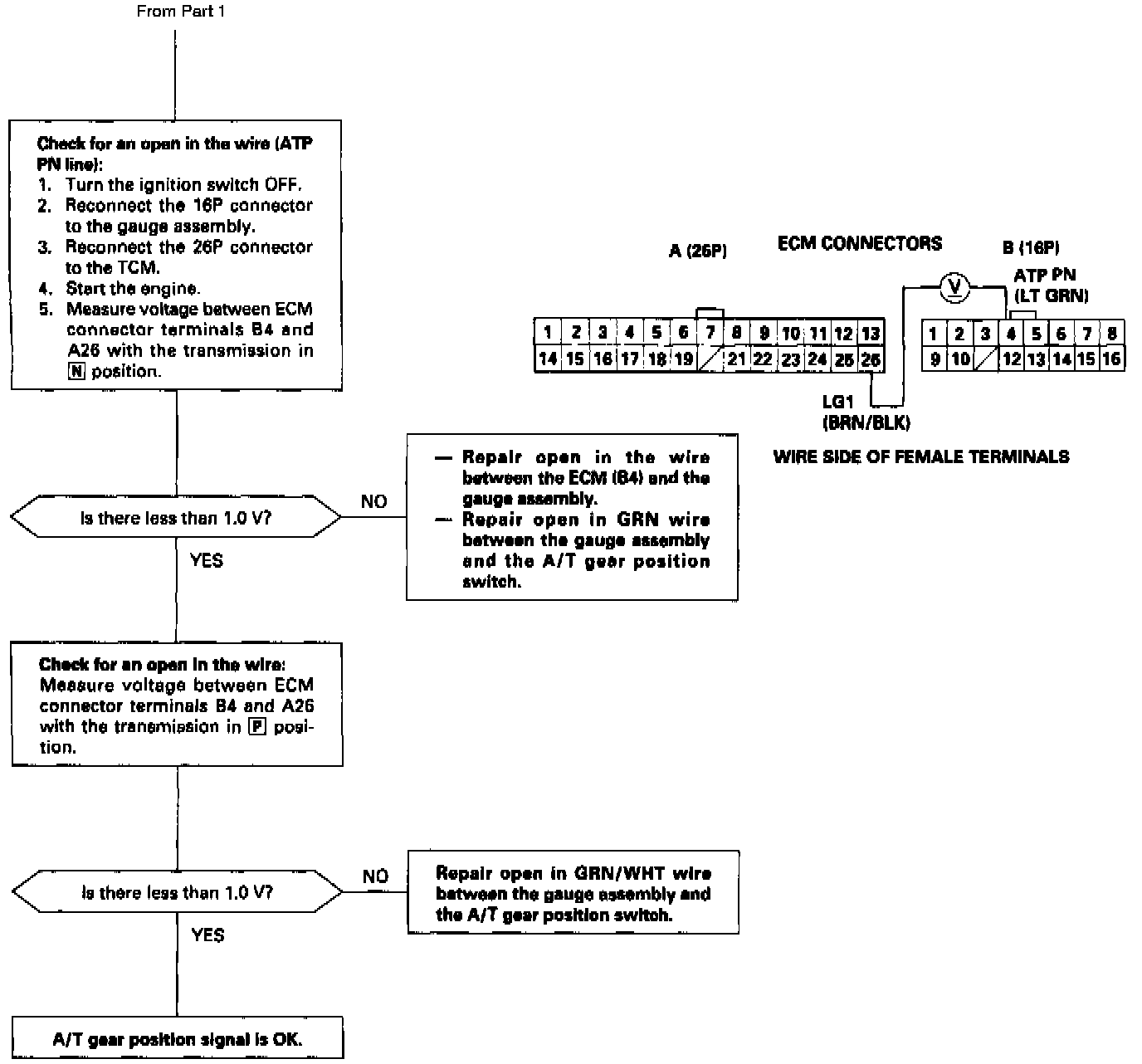

A/T Shift Position Switch Signal









This signals the ECM when the transmission is in [N] or [P] position.
