Home >> Honda >> 1996 >> Accord Sedan V6-2.7L SOHC (24 Valve) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Alternator (ALT) FR Signal

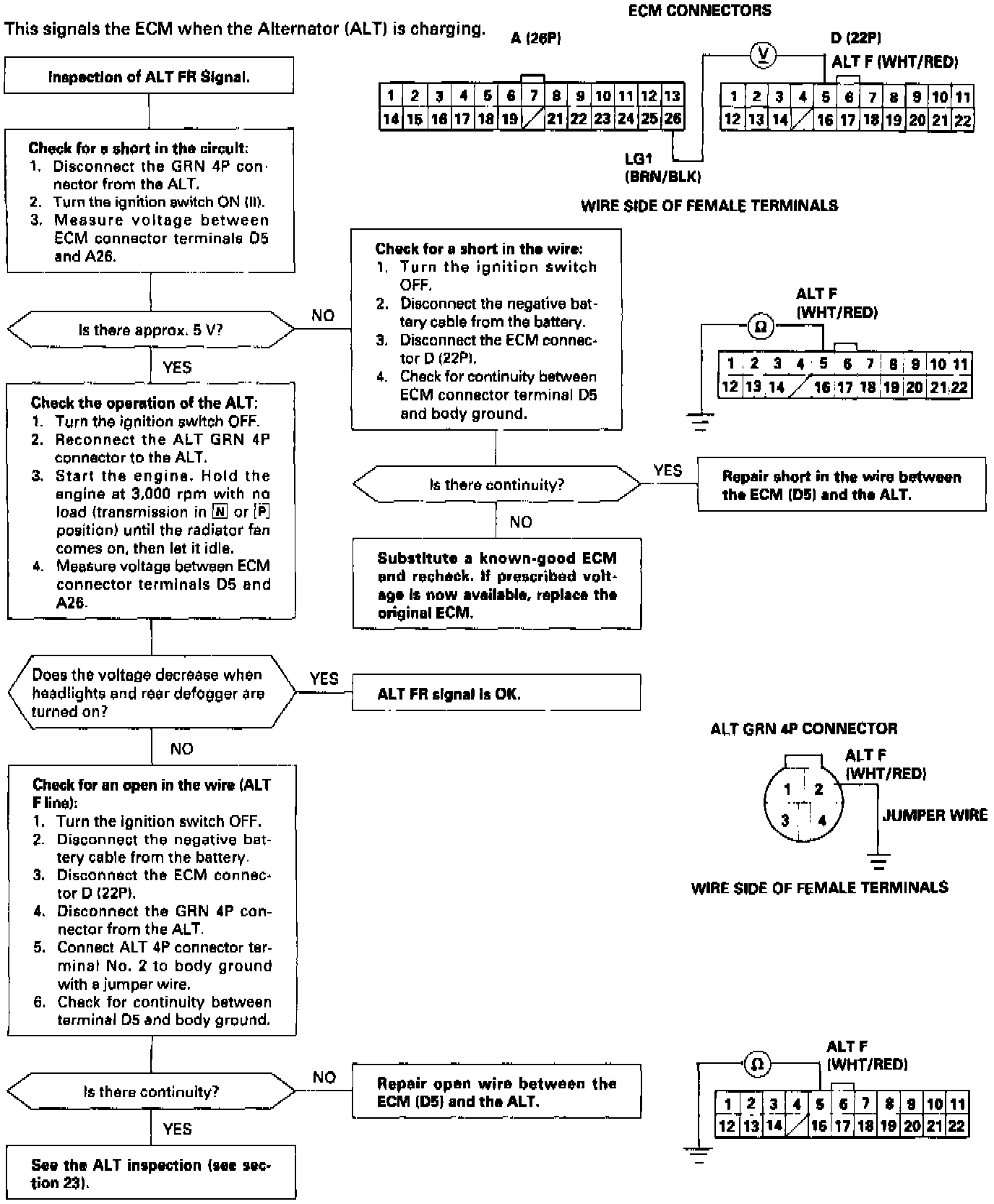

Alternator (ALT) FR Signal





This signals the ECM when the alternator is charging.
