Camshaft Position Sensor: Service and Repair

1. Set the No. 1 piston at TDC.
2. Remove the front upper cover.
3. Remove the timing belt from the front camshaft pulley.

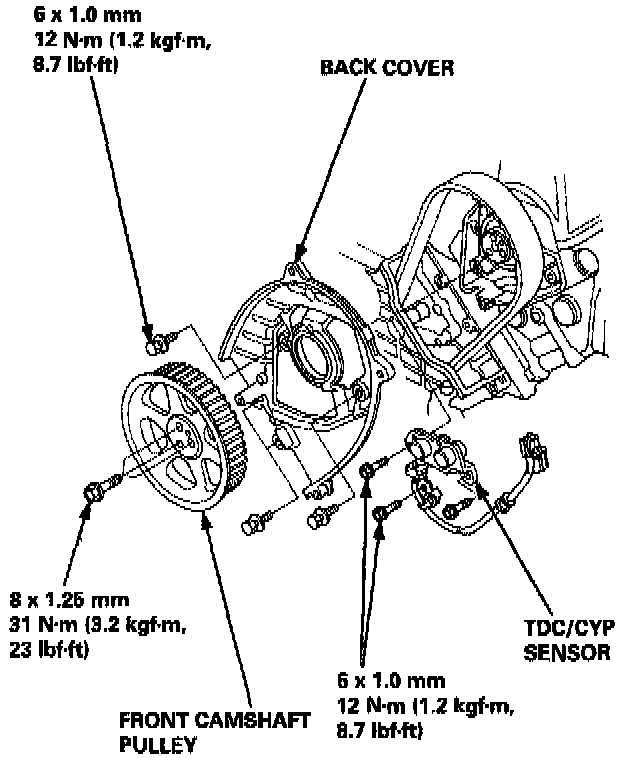

4. Remove the front camshaft pulley, back cover and TDC/CYP sensor.
5. Install the TDC/CYP sensor in reverse order of removal.
