Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Accord Sedan V6-2.7L SOHC (24 Valve)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Clutch
>>
Diagrams
>>

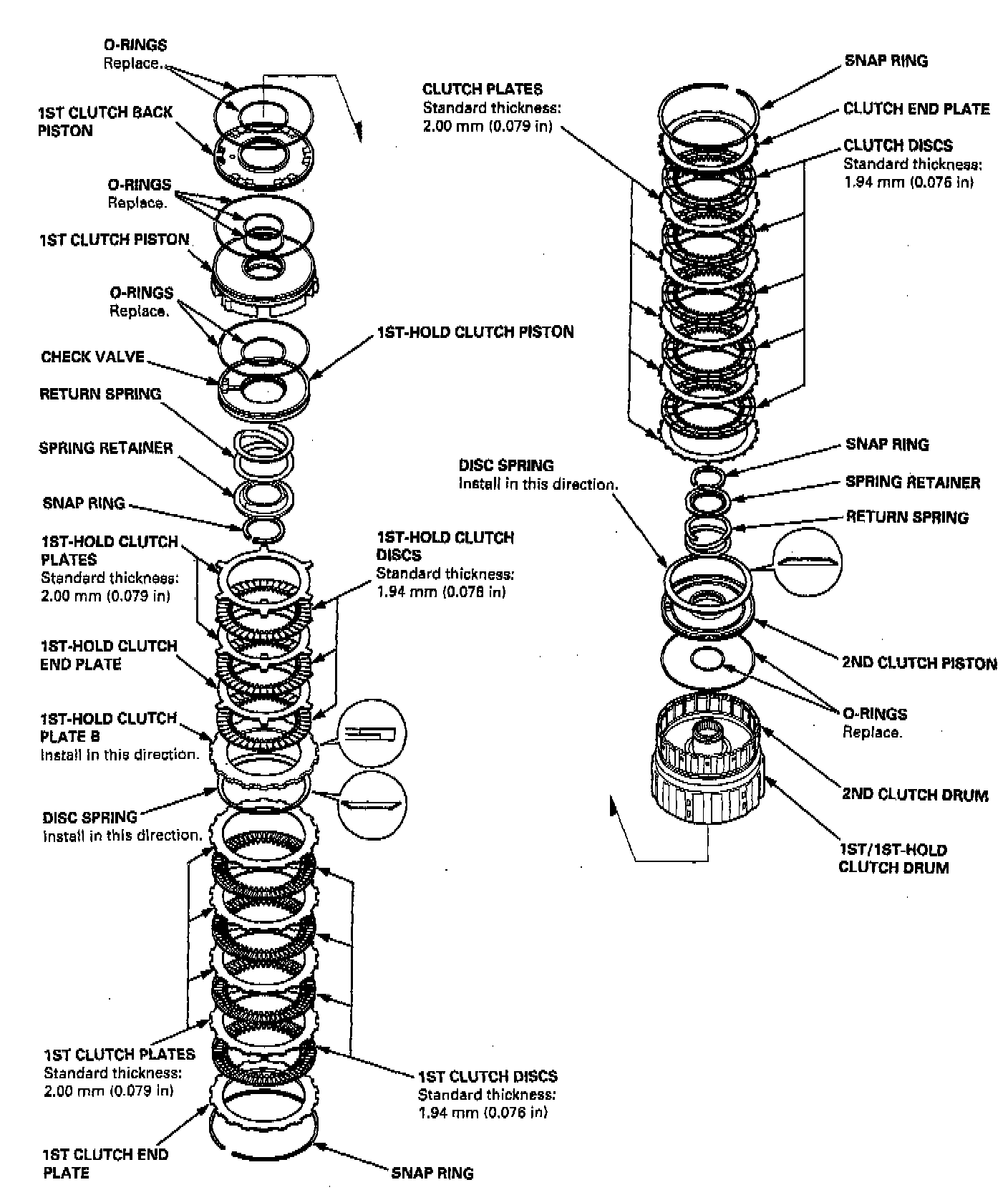

1ST/1ST-Hold/2ND Clutch Assembly
1ST/1ST-Hold/2ND Clutch Assembly
