One-Way Clutch

TOOL REQUIRED
- 07749-0010000 Driver
- 07947-6340500 Driver Attachment
- 07746-0010600 Attachment, 72 x 75 mm
- 07HAD-SF10100 Driver Attachment
- 07746-0010500 Attachment, 62 x 68 mm

DISASSEMBLE





1. Remove the 1st-hold clutch hub using the special tools and a press as shown.

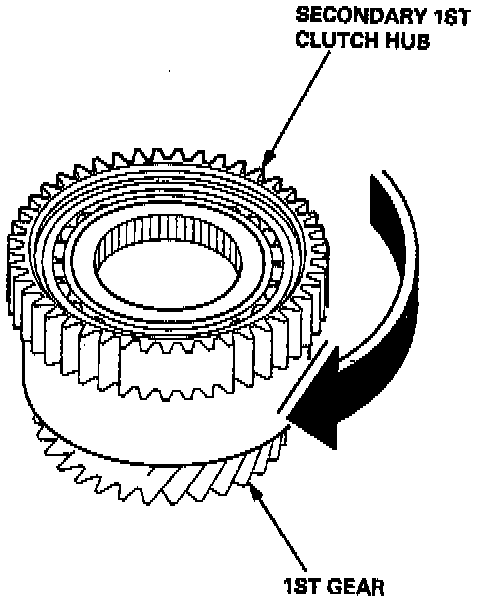

2. Separate the secondary 1st clutch hub from the 1st gear by turning the secondary 1st clutch hub in the direction shown.

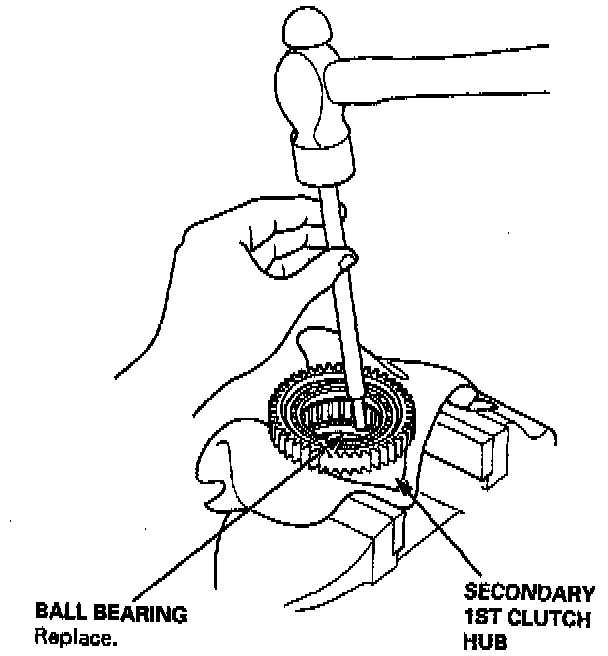

3. Drive the ball bearing out from the secondary 1st clutch hub as shown, then remove the one-way clutch plate.
4. Remove the one-way clutch from the secondary 1st clutch hub.

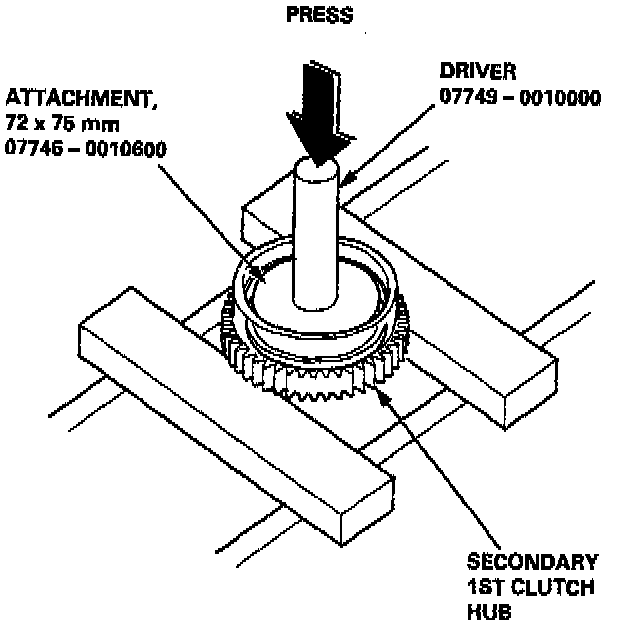

5. Remove the ball bearing from the secondary 1st clutch hub using the special tools and a press.

ASSEMBLE

NOTE: Coat all parts with ATF during assembly.

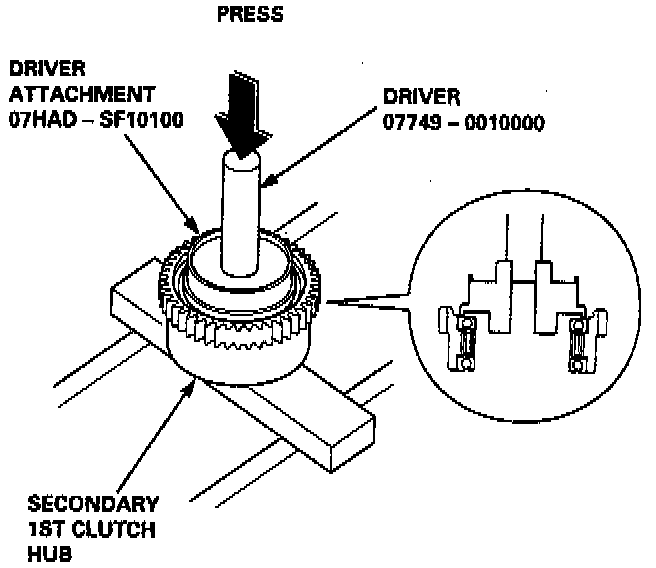

1. Install the ball bearing in the gear-side of the secondary 1st clutch hub using the special tools and a press as shown.
2. Install the one-way clutch in the secondary 1st clutch hub.
3. Install the one-way clutch plate in the secondary 1st clutch hub.

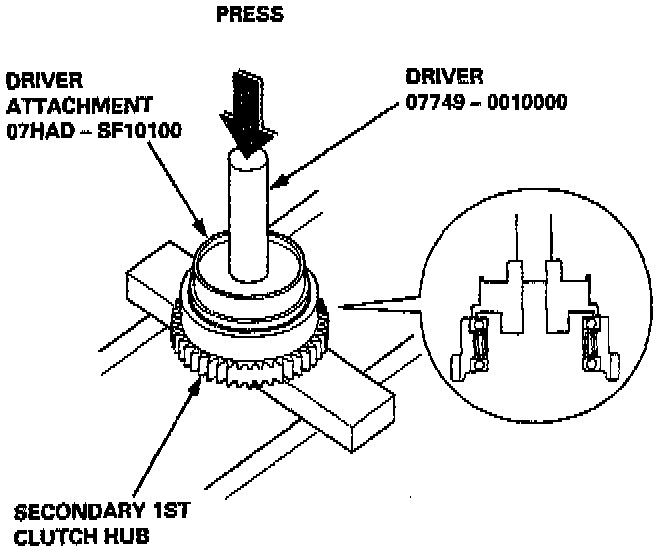

4. Install the ball bearing in the secondary 1st clutch hub using the special tools and a press.





5. Assemble the secondary 1st clutch hub and 1st gear by turning the secondary 1st clutch hub.

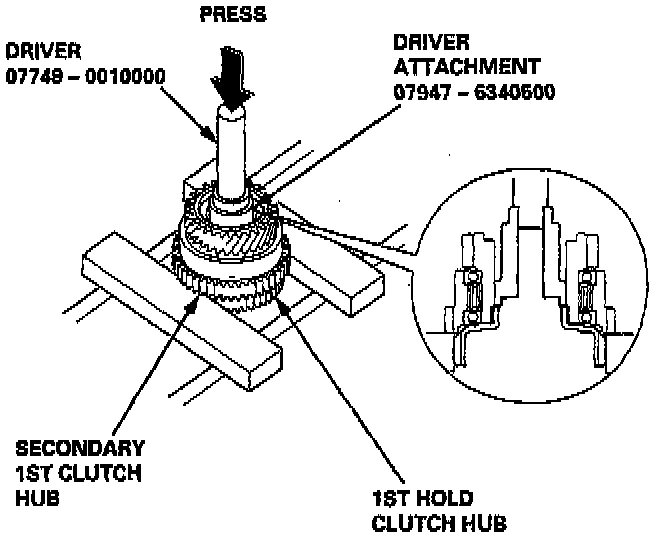

6. Install the 1st-hold clutch hub in 1st gear using the special tools and a press as shown.
7. After the parts are assembled, inspect the one-way clutch operation.
