Transmission Speed Sensor: Service and Repair

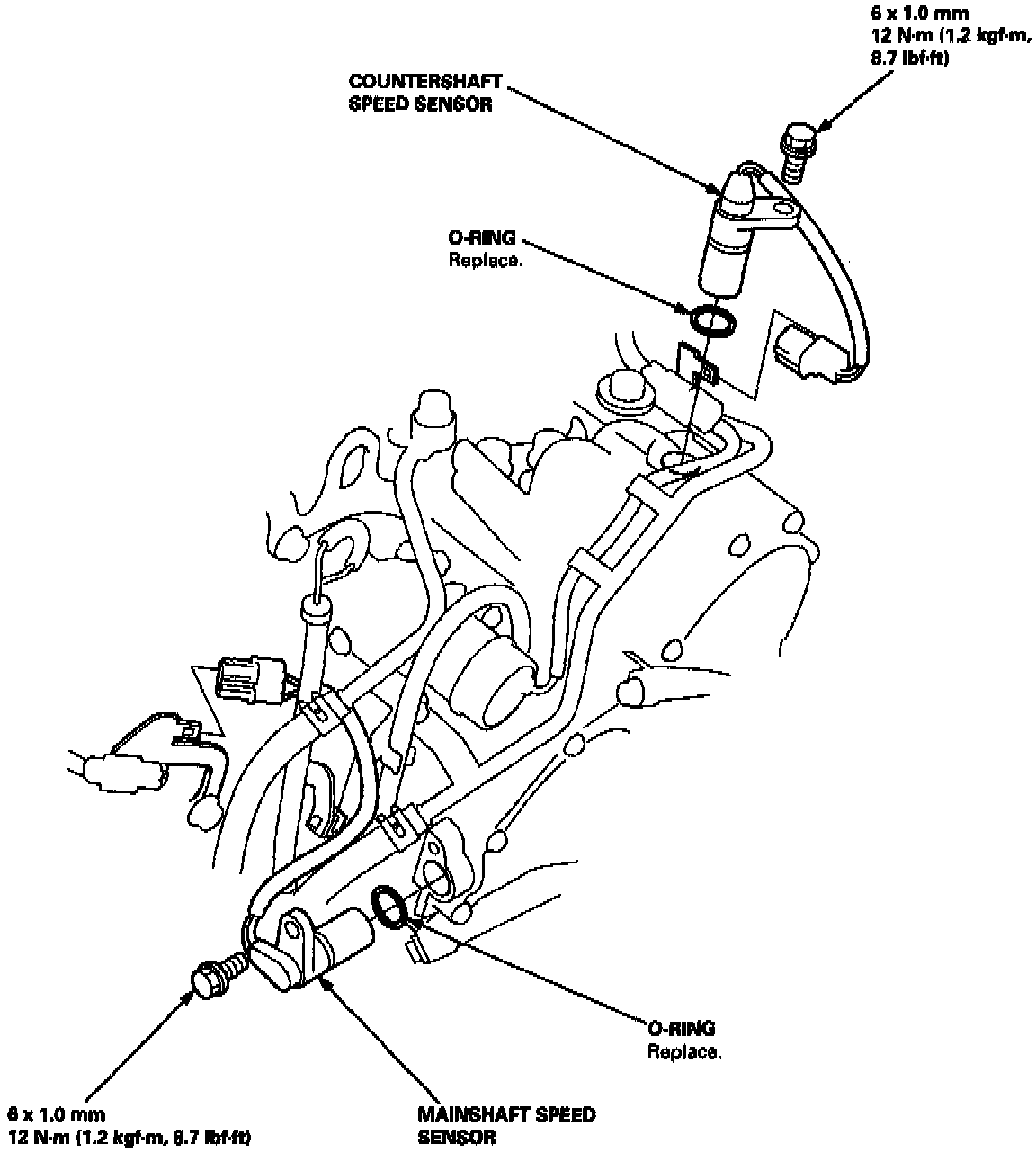

1. Remove the 6 mm bolt and mainshaft speed sensor from the left side cover. Remove the 6 mm bolt and countershaft speed sensor from the transmission housing.





2. Replace the 0-ring with a new one before reinstalling the mainshaft speed sensor or the countershaft speed sensor.
