Oil Seals

Required Tools
- 07JAD-PH80101 Driver Attachment
- 07JAD-PH80400 Pilot, 28x30 mm
- 07749-0010000 Driver

REMOVAL

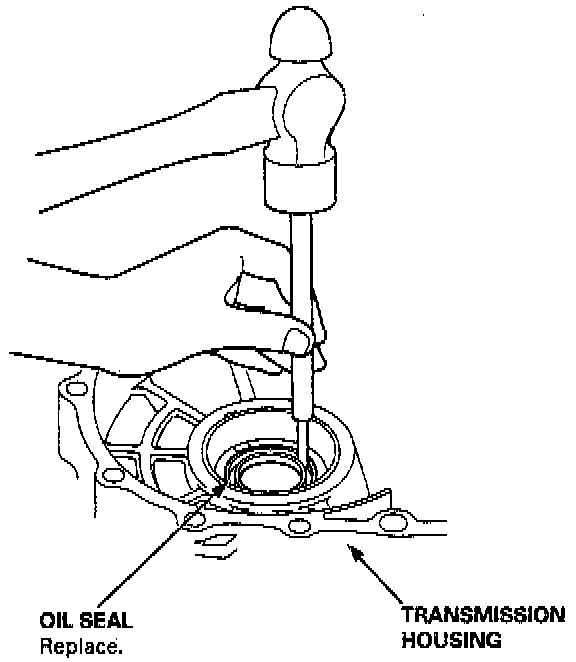

1. Remove the oil seal from the transmission housing.

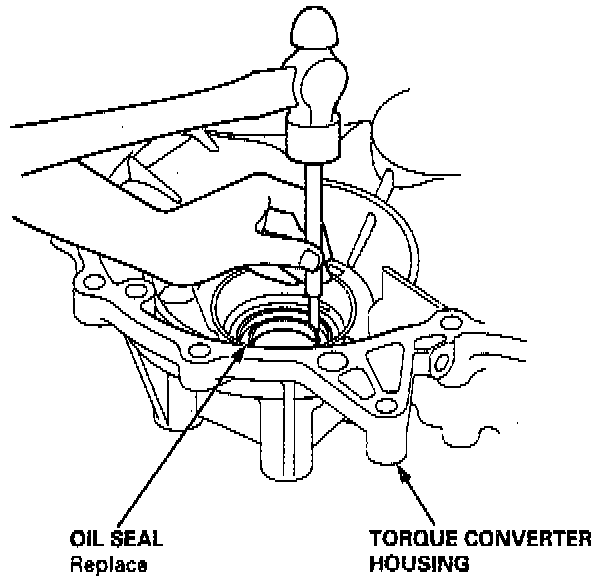

2. Remove the oil seal from the torque converter housing.

INSTALLATION

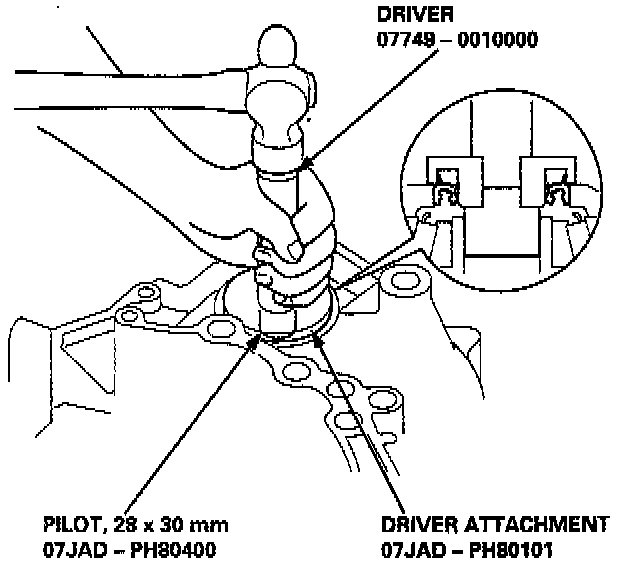

1. Install the new oil seal flush with the transmission housing using the special tools as shown.

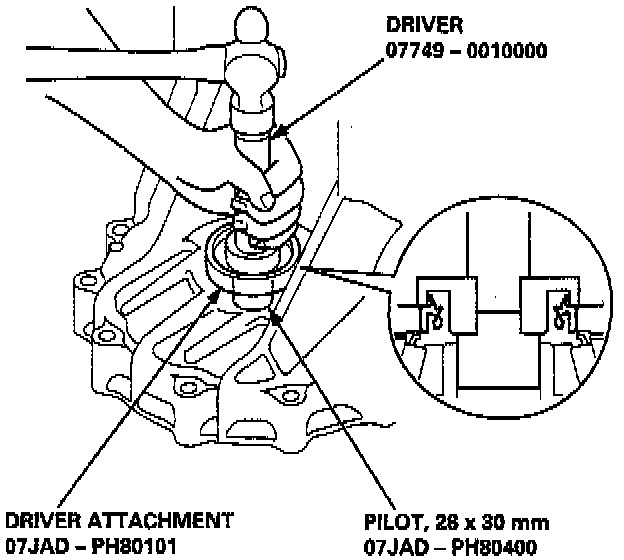

2. Install the new oil seal flush with the torque converter housing using the special tools as shown.
