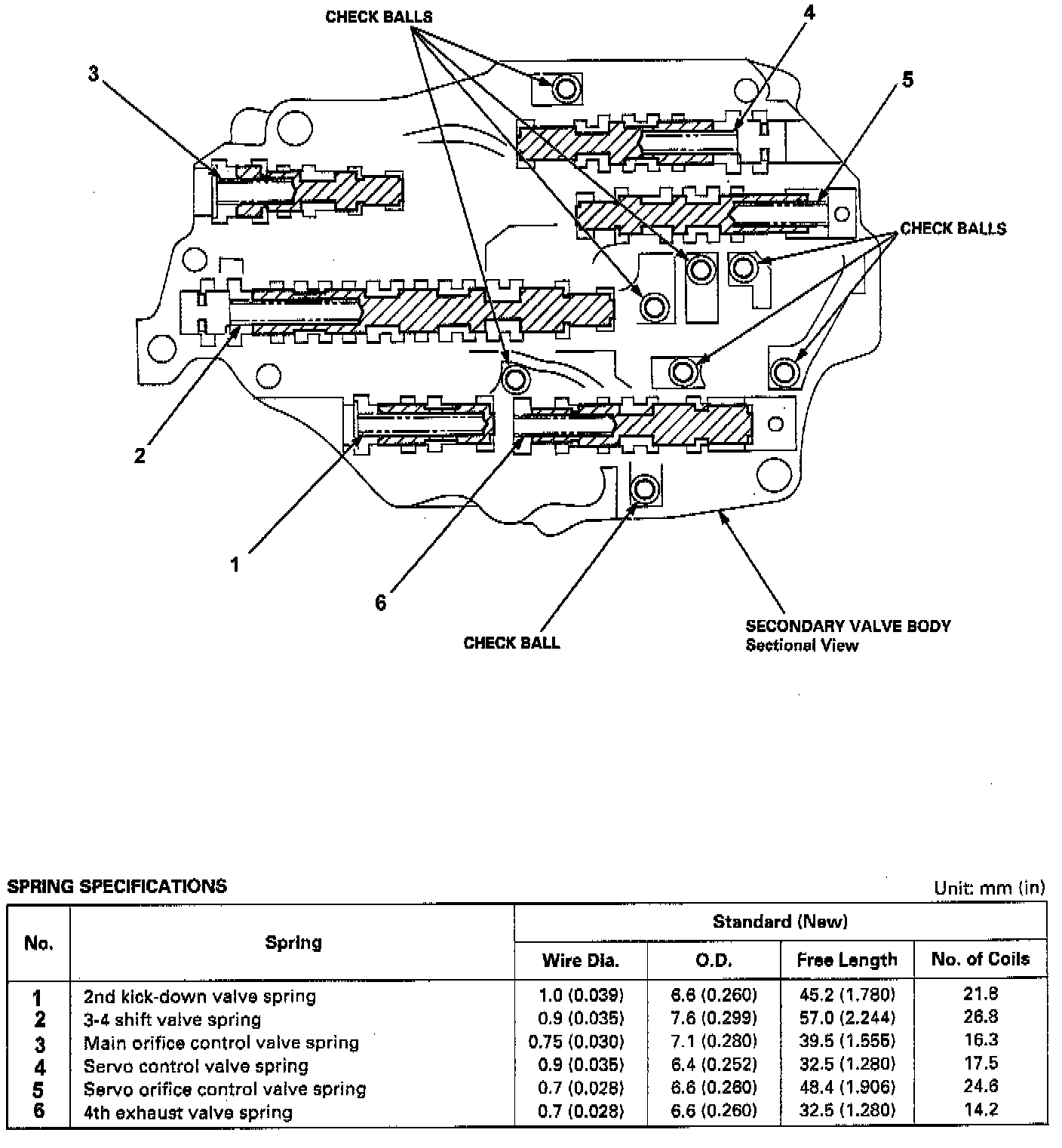

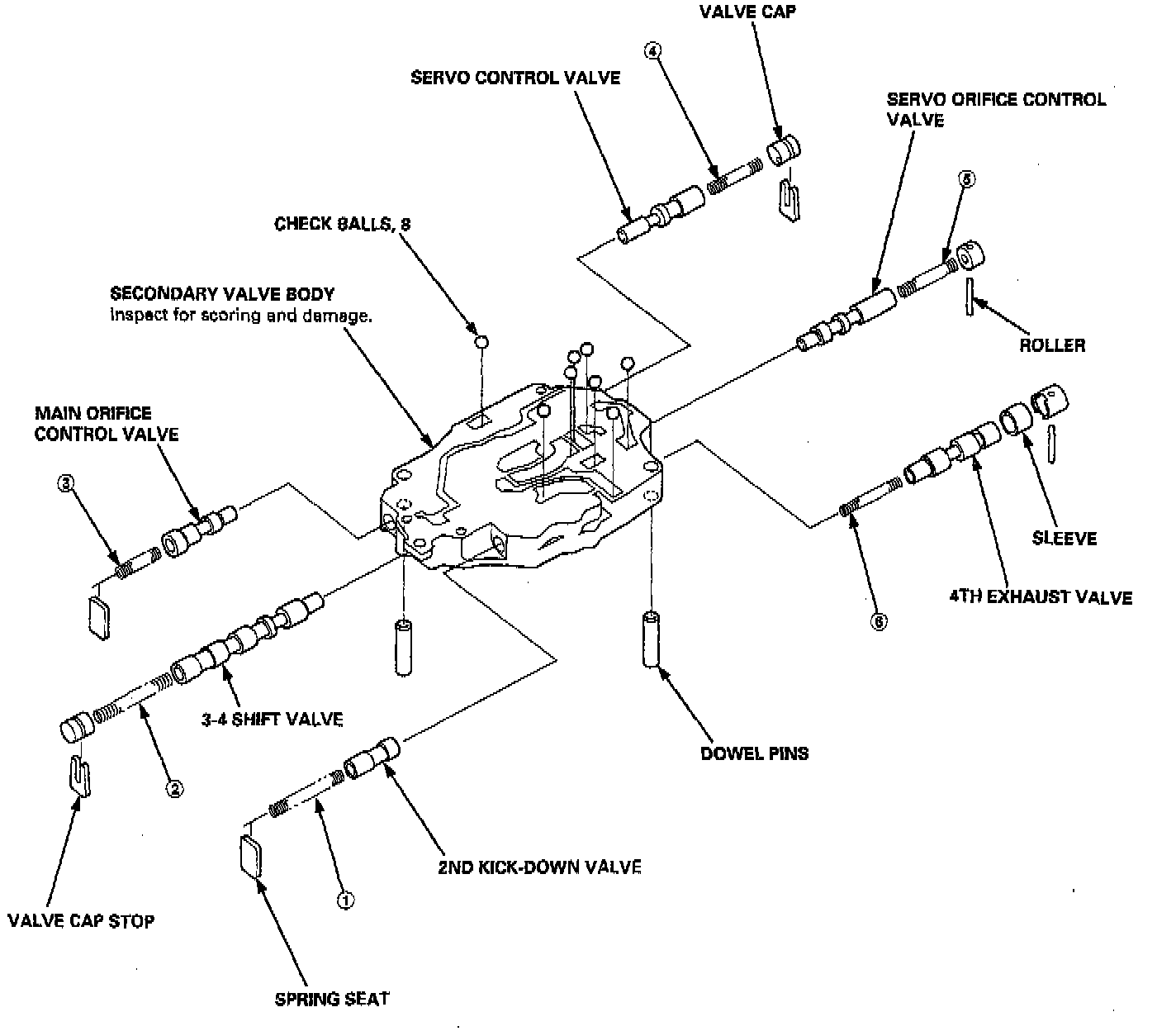

Secondary

NOTE:
- Clean all parts thoroughly in solvent or carburetor cleaner, and dry with compressed air. Blow out all passages.
- Check all valves for free movement. If any fail to slide freely, see Valve Body Servicing.
- Replace the valve body as an assembly if any parts are worn or damaged.
- Coat all parts with ATF during assembly.








CAUTION: Do not use a magnet to remove the check balls; it may magnetize the balls.
