Tightening Specifications

TIGHTENING SPECIFICATIONS
Lock-Up 12 Nm (8.7 ft. lbs.)
Servo 12 Nm (8.7 ft. lbs.)
Accumulator (6 X 1.0) 12 Nm (8.7 ft.lbs.)

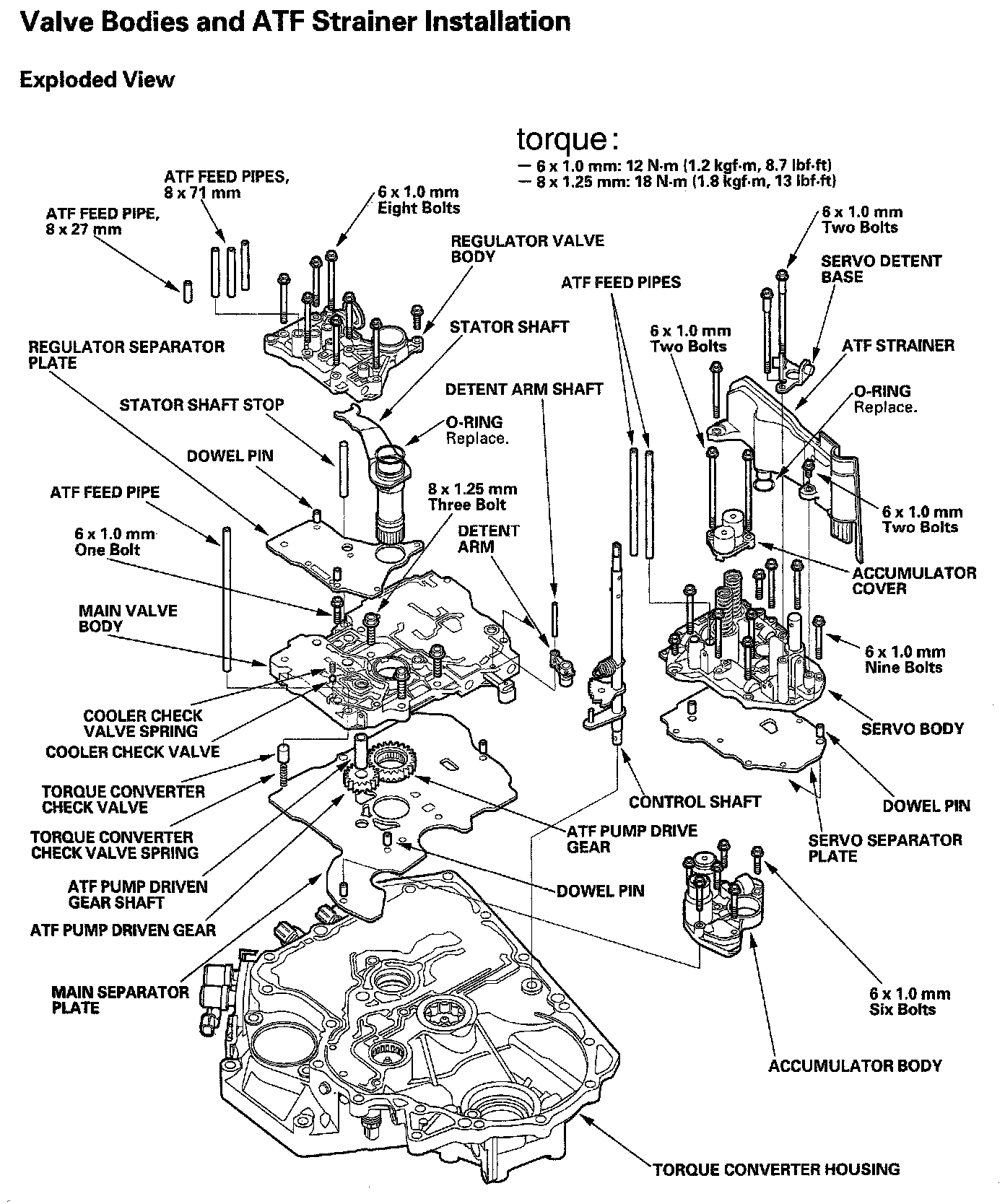

Main Valve Body:
6x1.0 mm 12 Nm (8.7 ft. lbs.)
8x1.25 mm 18 Nm (13 ft. lbs.)
