Antenna Motor: Service and Repair

1. Remove the left quarter trim panel.

Power Antenna Motor Replacement:

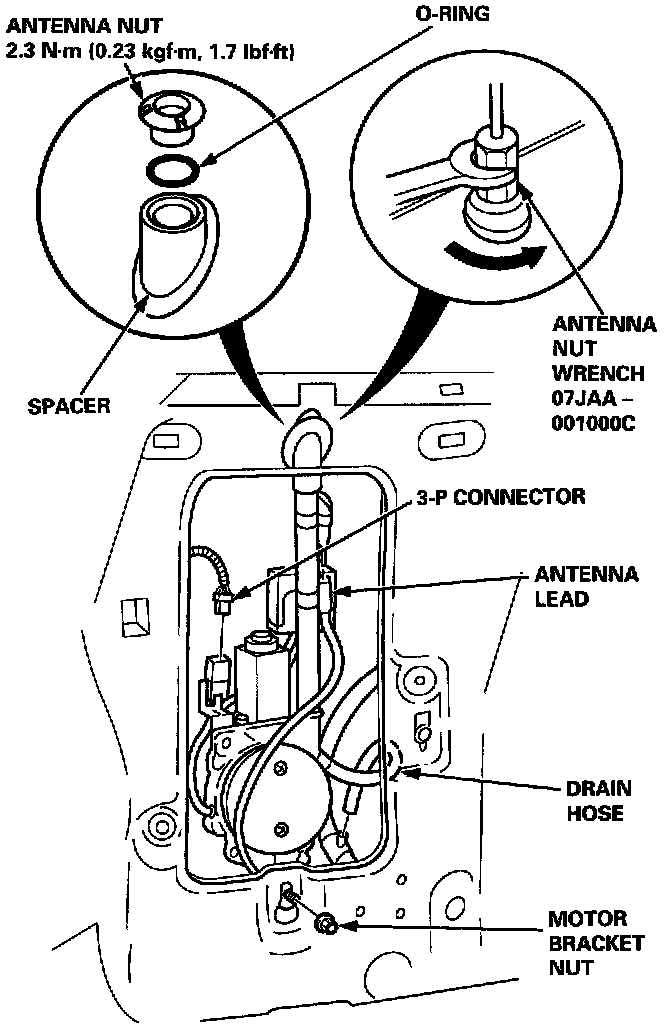

2. Disconnect the 3-P connector and antenna lead from the motor, then remove the antenna nut and motor bracket nut.

NOTE: If the antenna nut has an O-ring, check the O-ring for damage. If necessary, replace it to prevent a leak.

3. Remove the motor and antenna as an assembly.
4. Install in the reverse order of removal.

NOTE: First tighten the antenna nut, then tighten the motor bracket nut.
