Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Sunroof / Moonroof
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Moonroof (Part 1 Of 2):

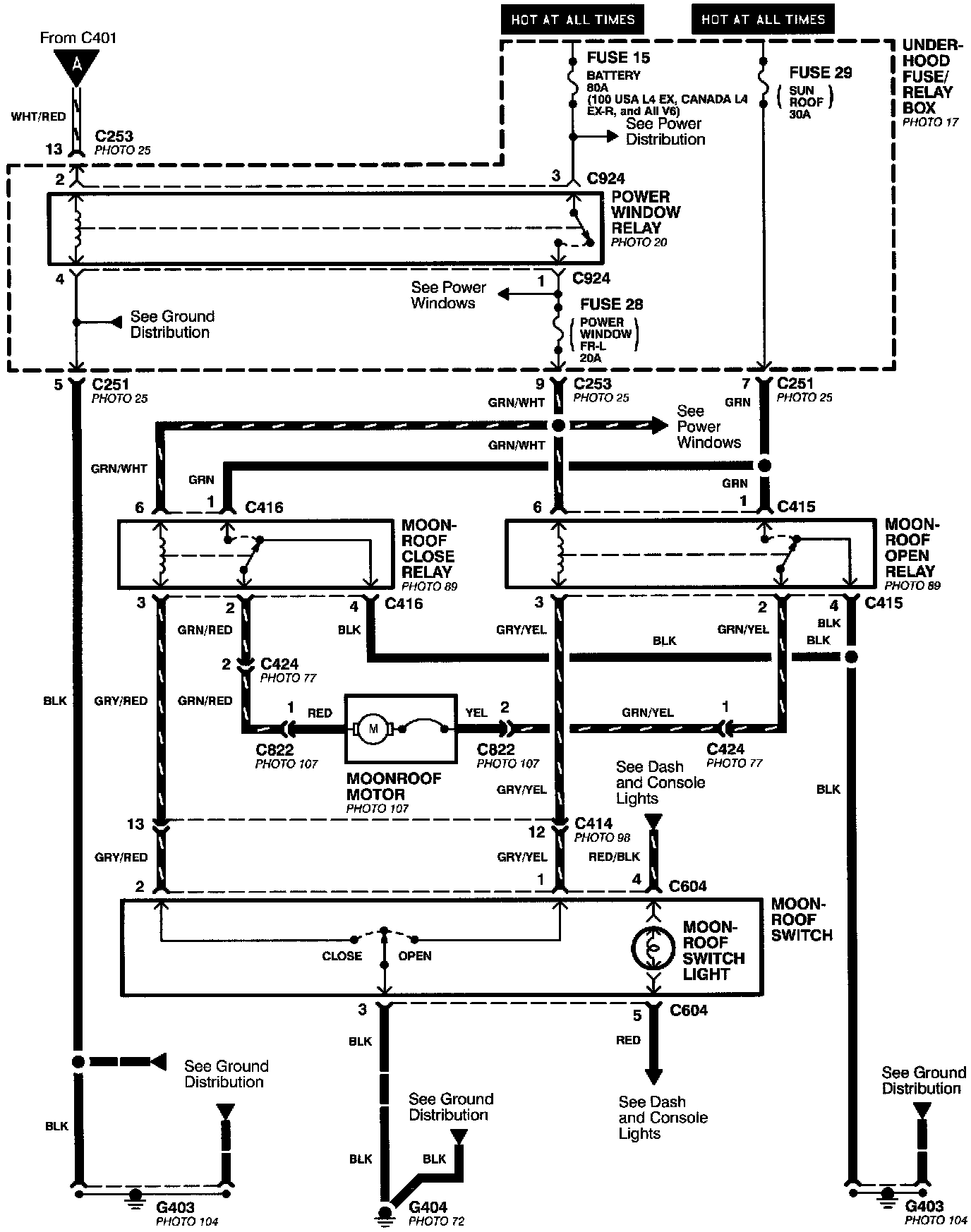

Moonroof (Part 2 Of 2):
