Wiring Diagrams

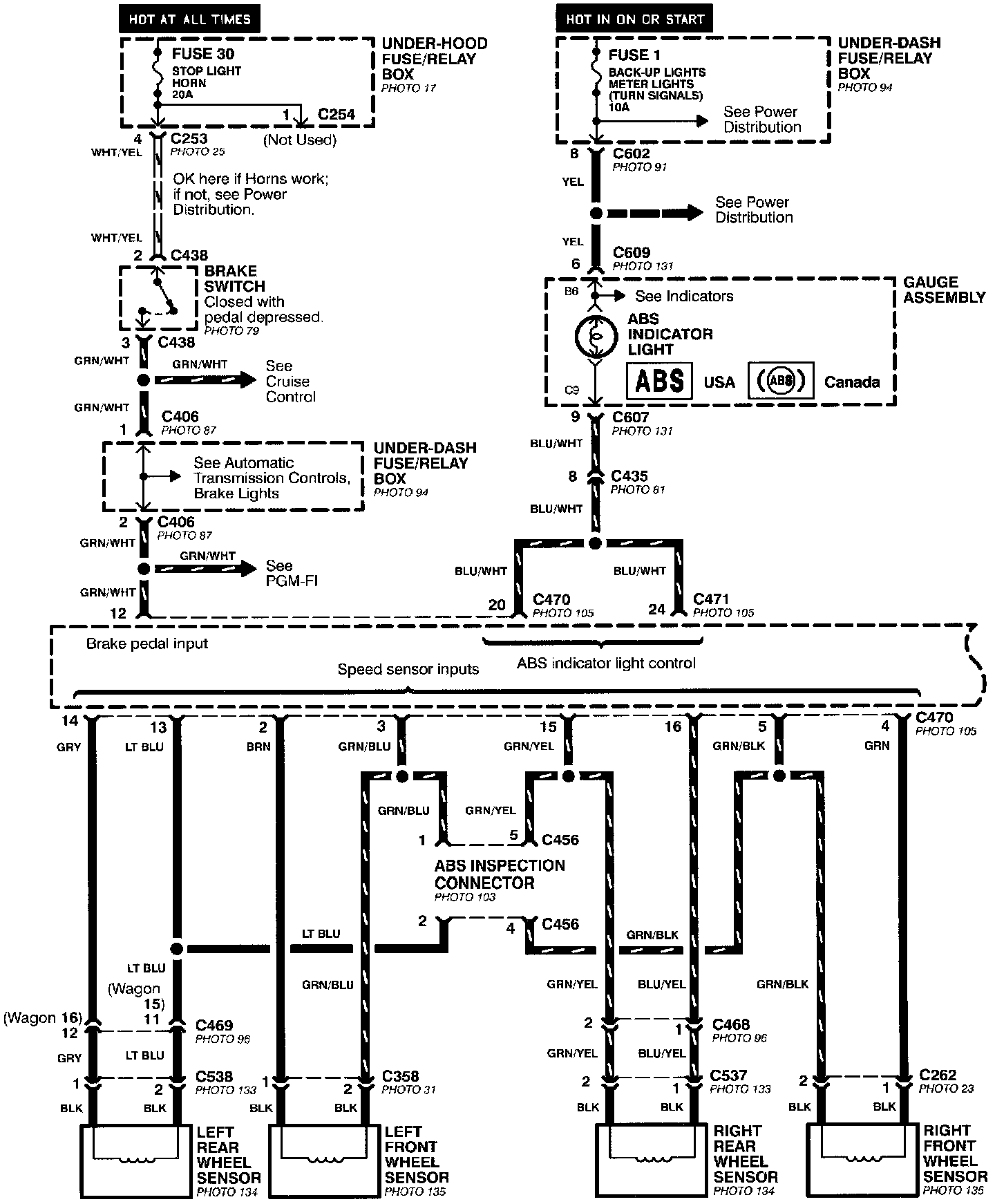

Anti-lock Brake System (ABS) (Part 1 Of 4):

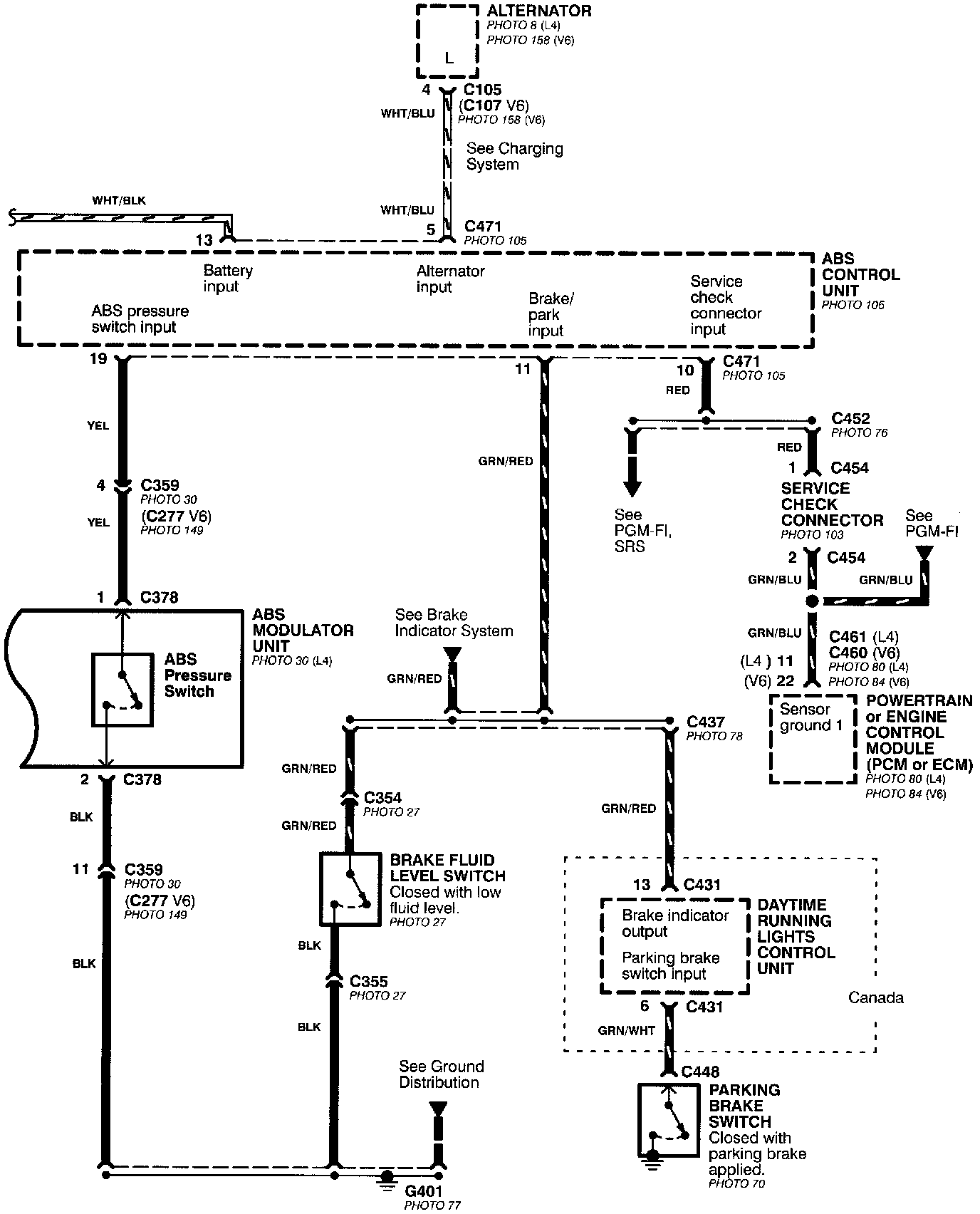

Anti-lock Brake System (ABS) (Part 2 Of 4):

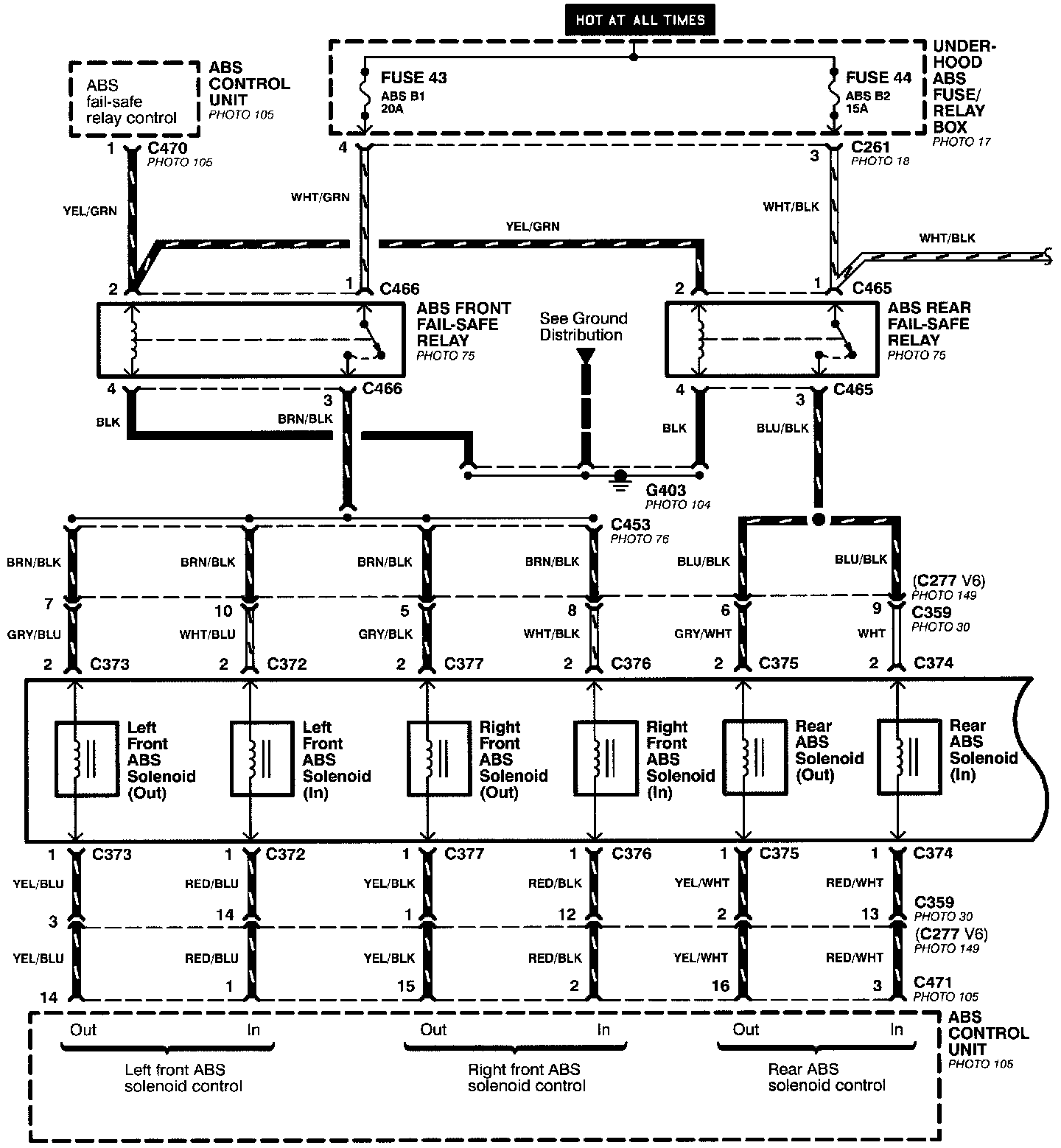

Anti-lock Brake System (ABS) (Part 3 Of 4):

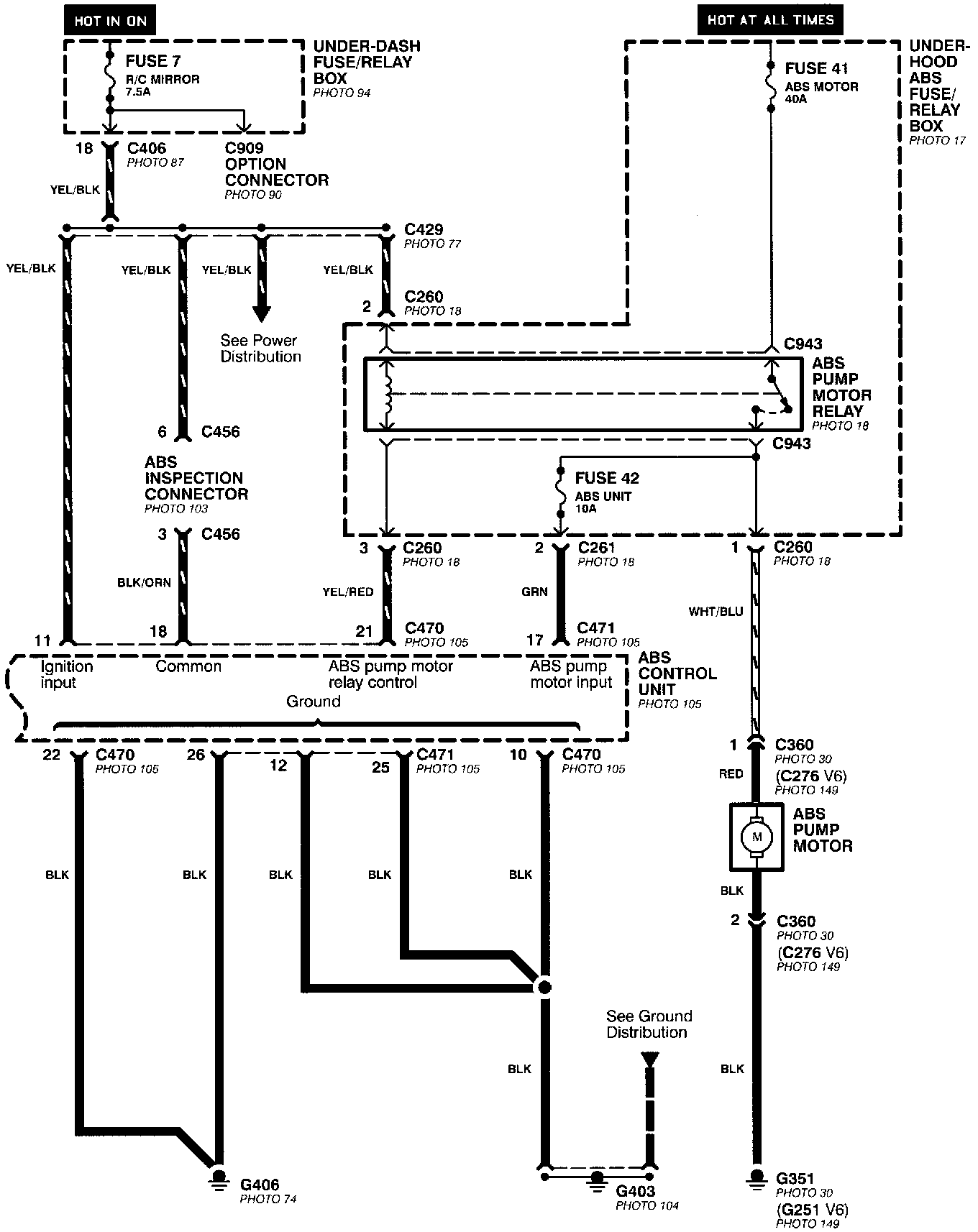

Anti-lock Brake System (ABS) (Part 4 Of 4):
