Pushrod Length

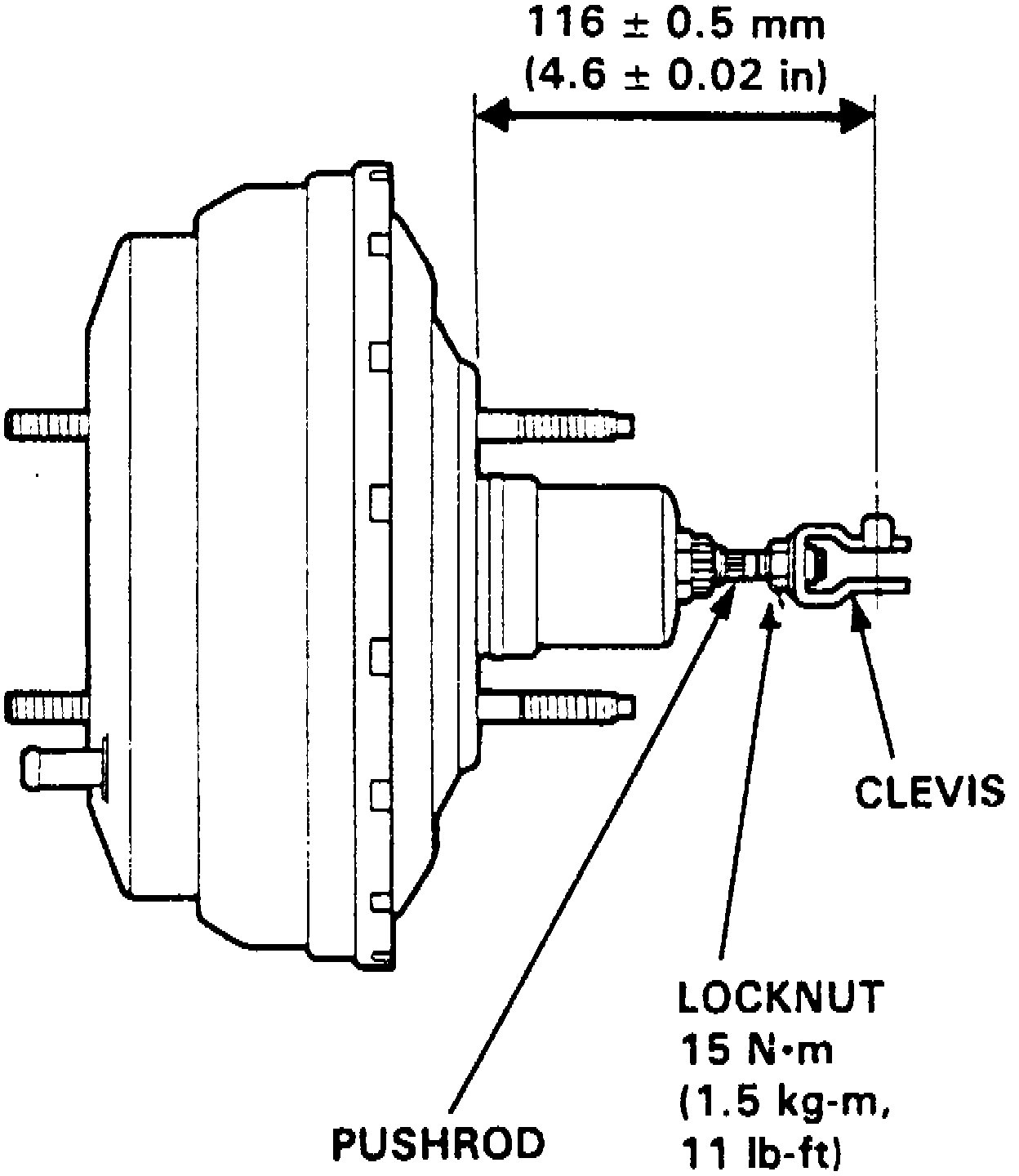

Fig. 3 Pushrod Length:





Install locknut and pushrod yoke on pushrod, then adjust pushrod length Fig. 3.
