Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Switches
>>
Headlight Switch
Headlight Switch

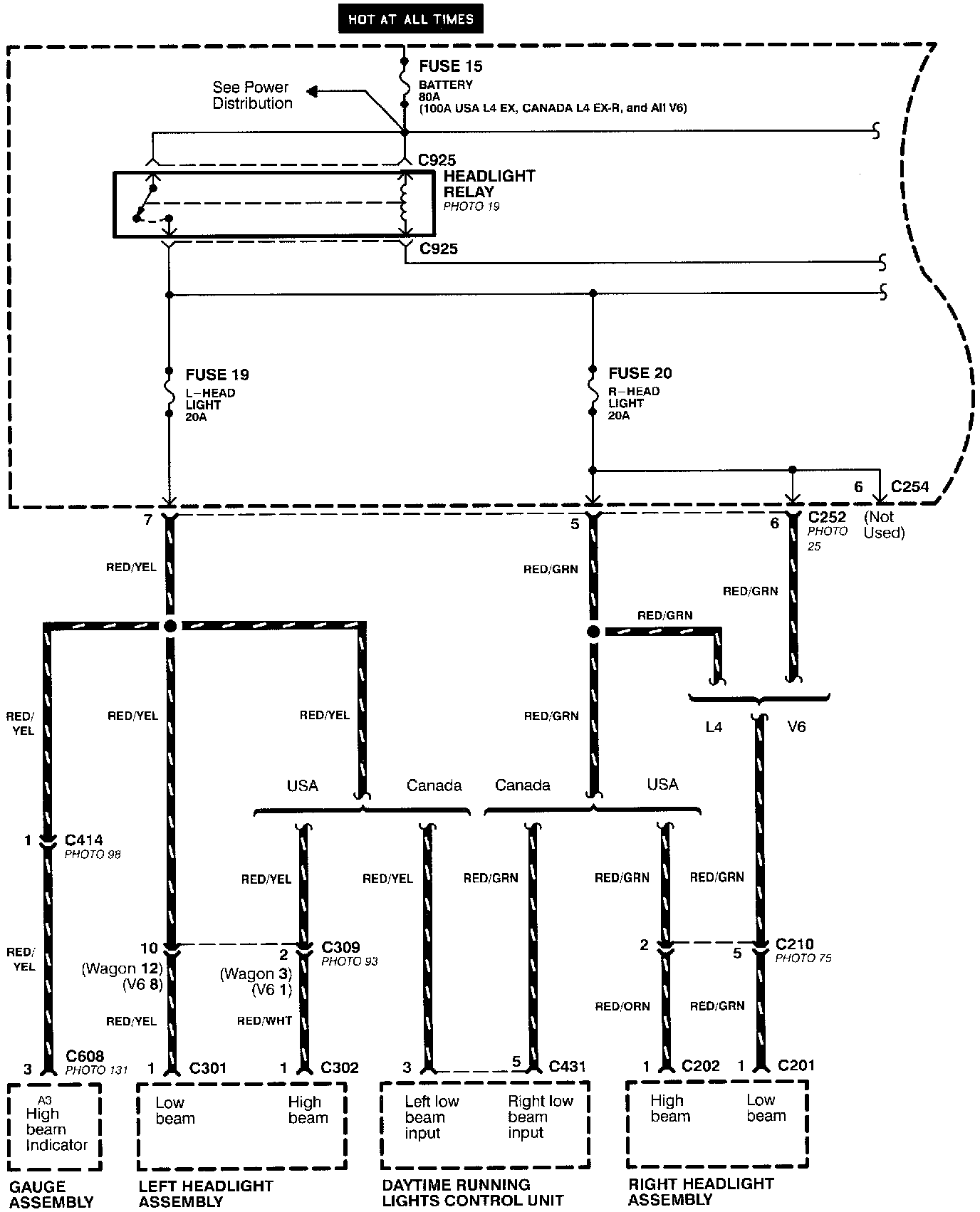

Headlight Switch (Part 1 Of 2):

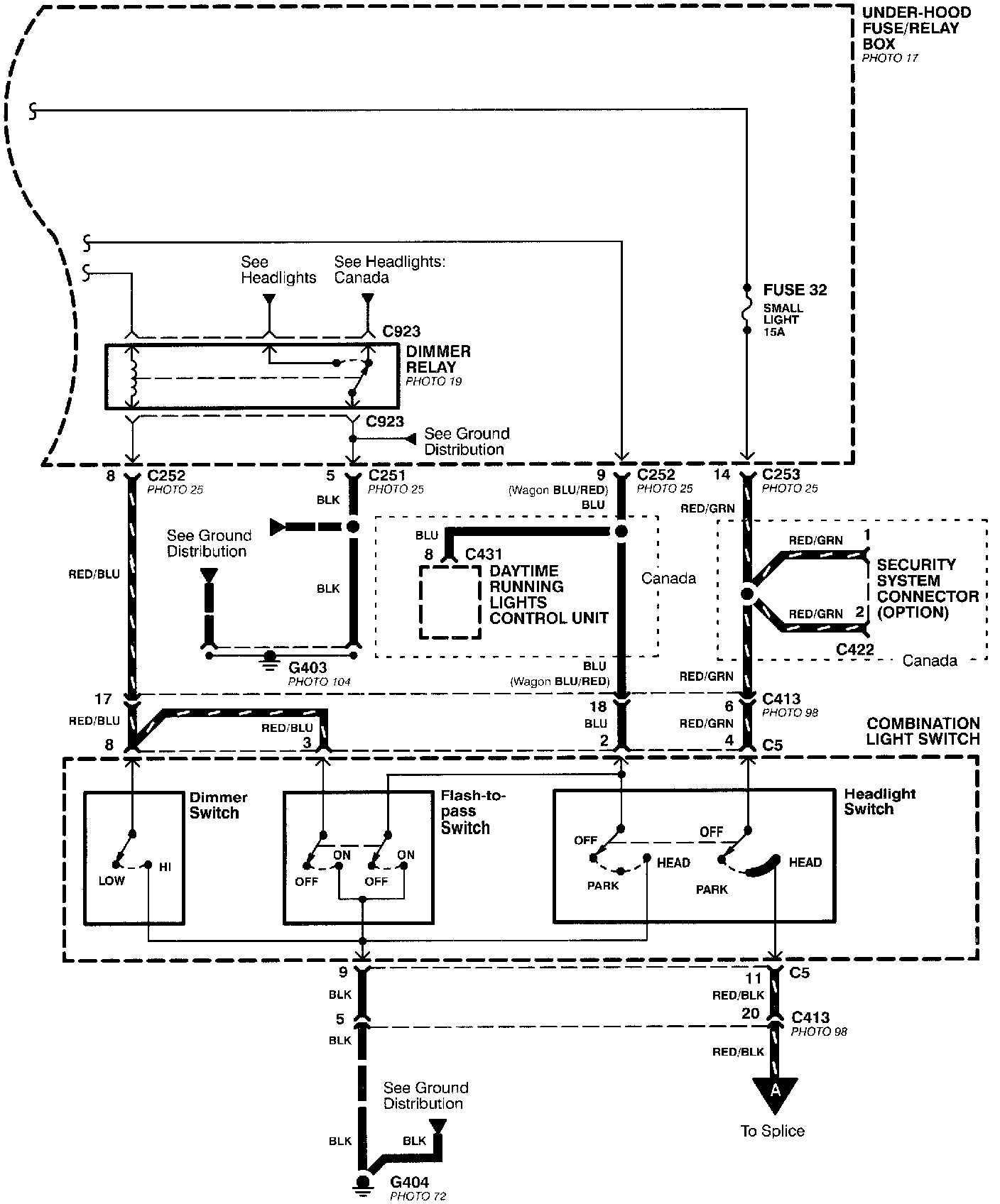

Headlight Switch (Part 2 Of 2):

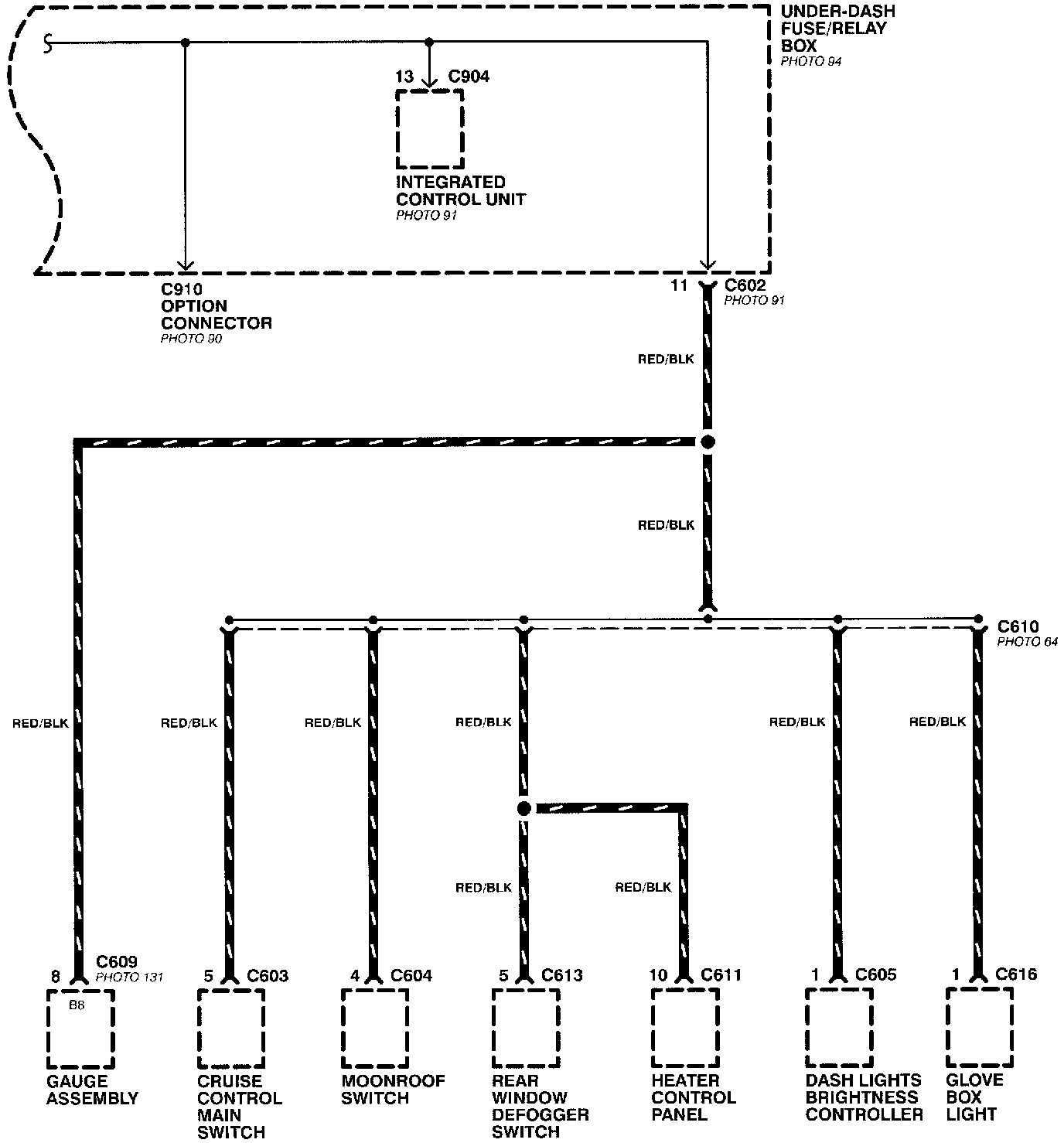

Headlight Switch (Part 1 Of 2):
Headlight Switch (Part 2 Of 2):
