Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

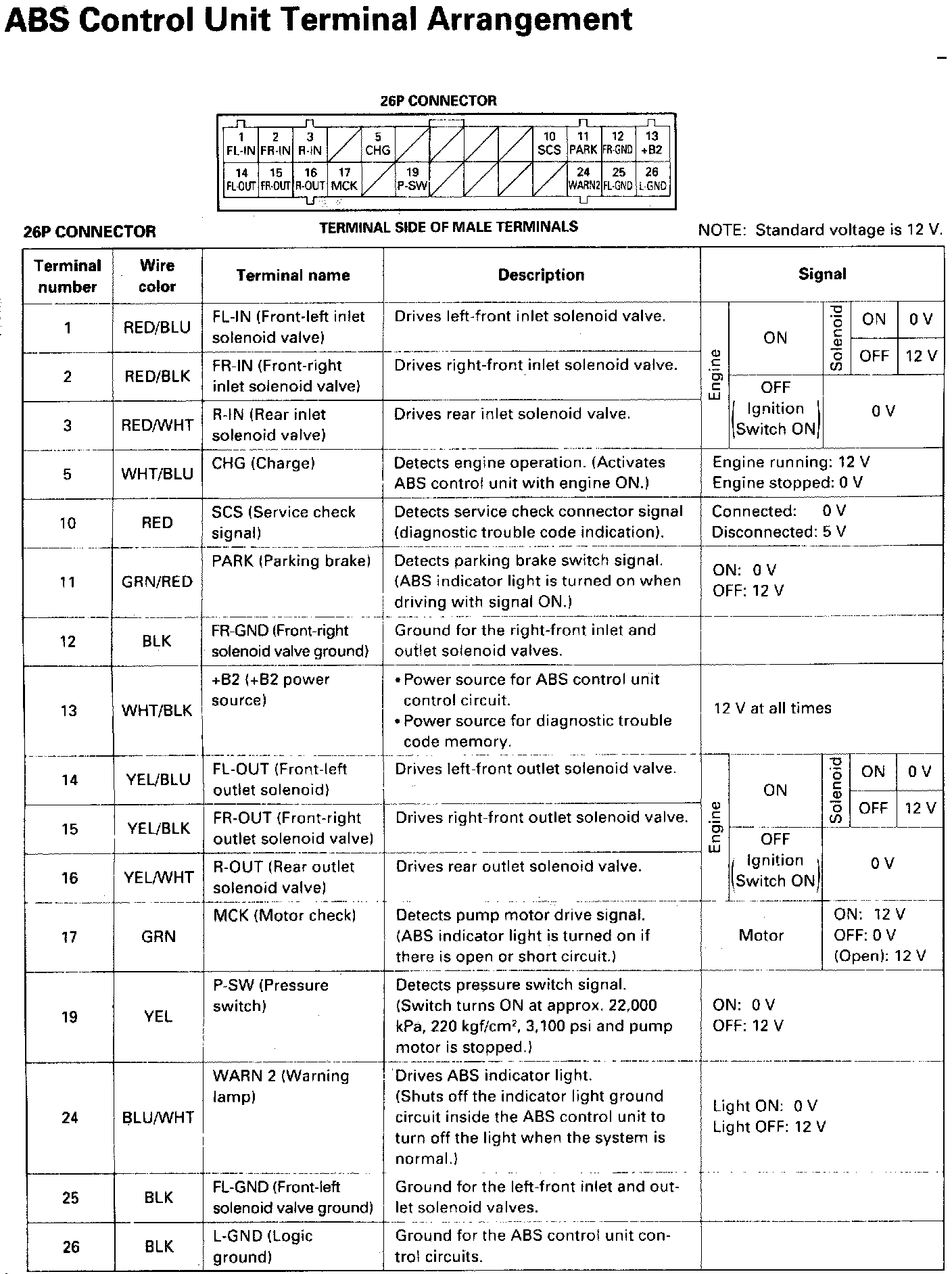

26 Pin

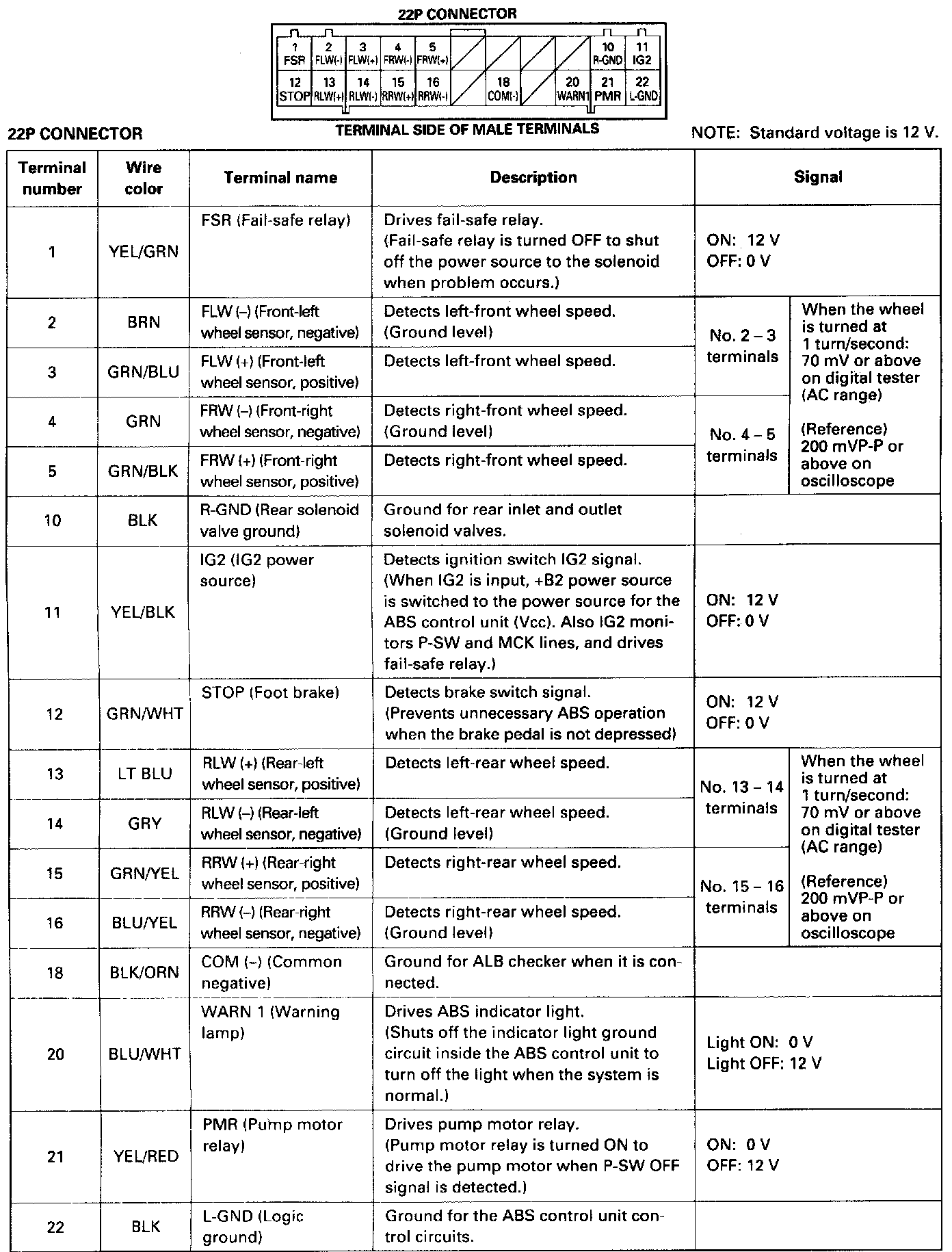

22 Pin
14 Pin
