Diesel Data: Automotive Repair

Home >> Honda >> 1996 >> Accord Wagon L4-2.2L SOHC (16 Valve) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Backup Lamp

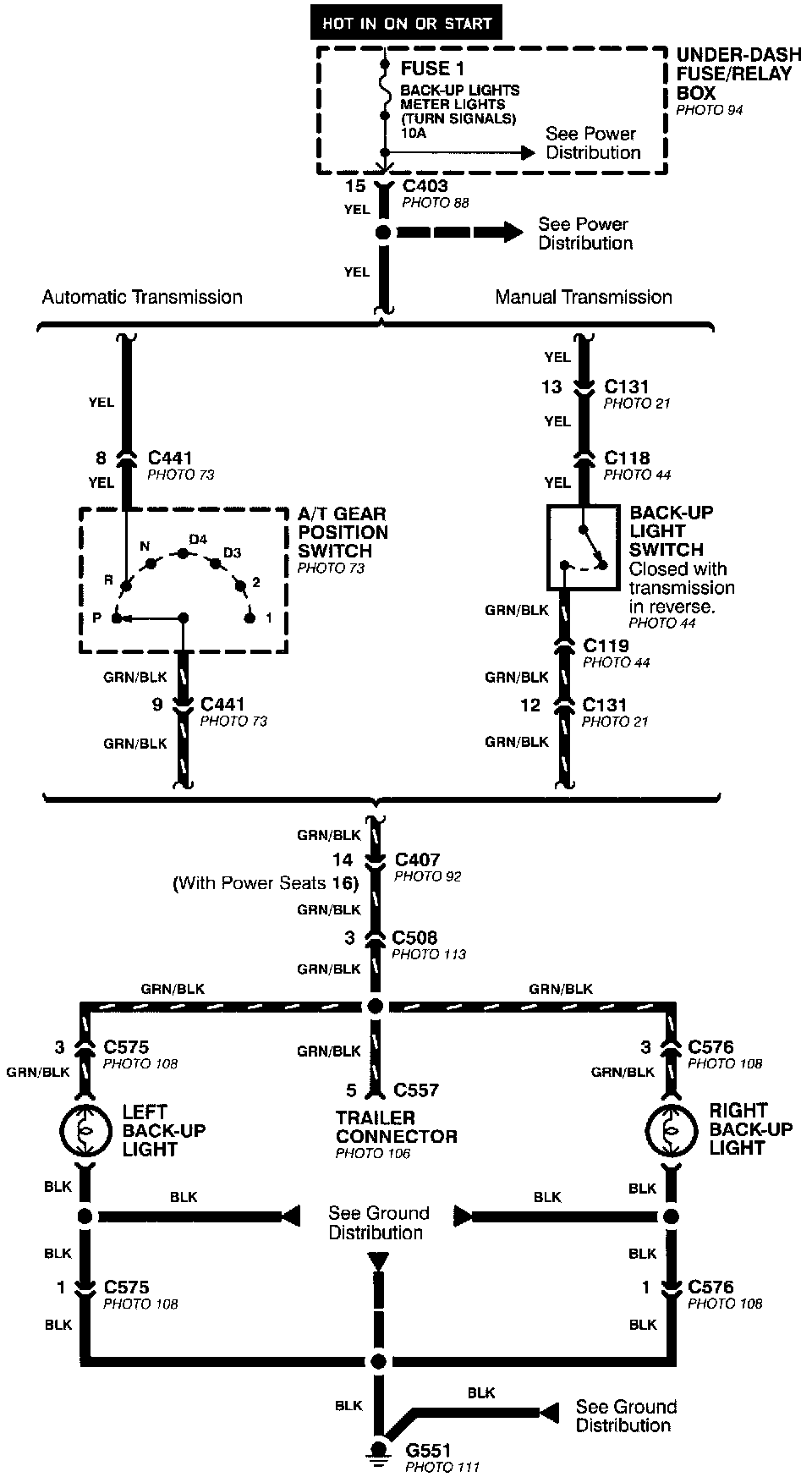

Backup Lamp

Back-Up Lights:
