Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Fog/Driving Lamp
Fog/Driving Lamp

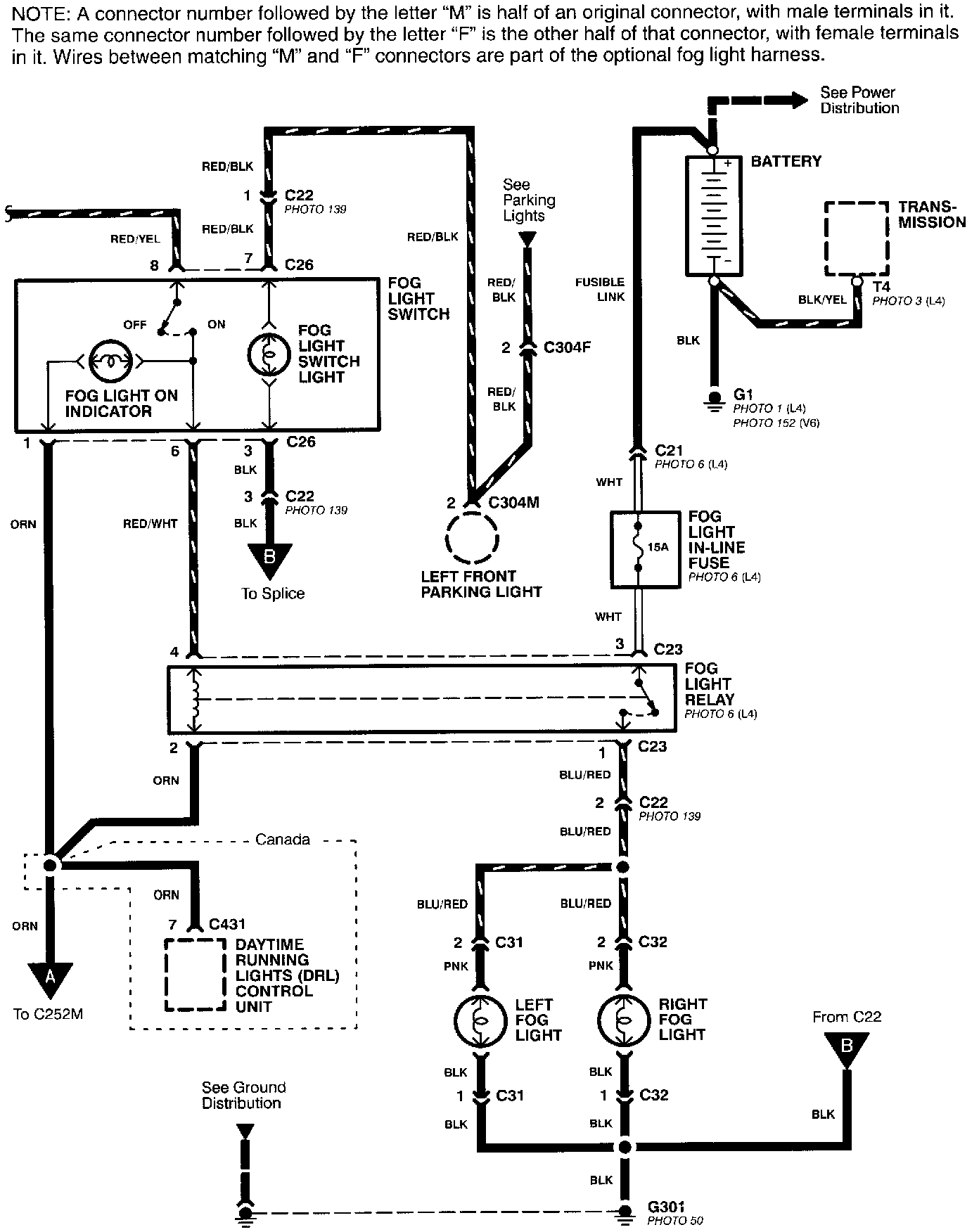

Fog Lights (Part 1 Of 2):

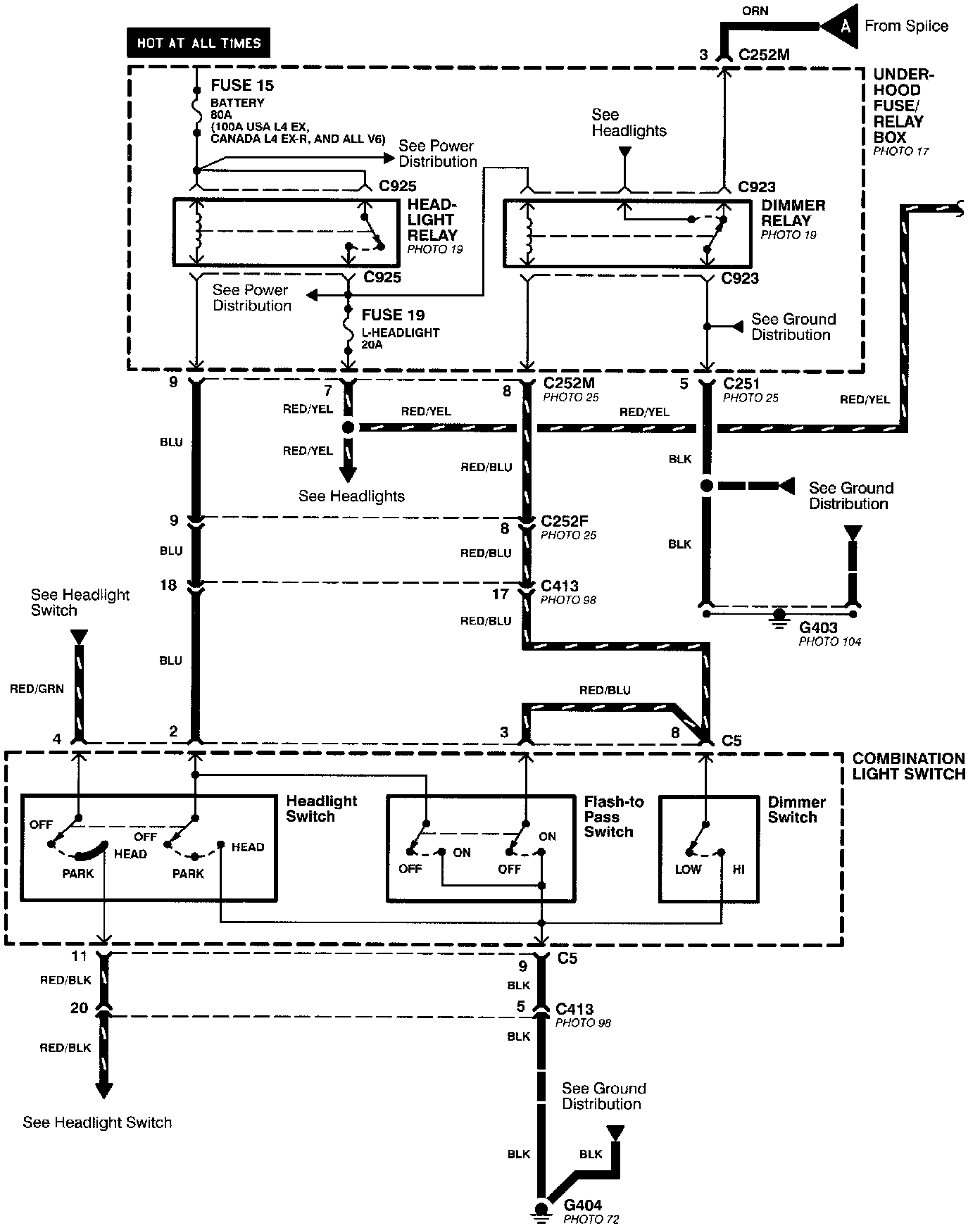

Fog Lights (Part 2 Of 2):
