Home >> Honda >> 1996 >> Accord Wagon L4-2.2L SOHC (16 Valve) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> System Diagram >> Canada

Canada

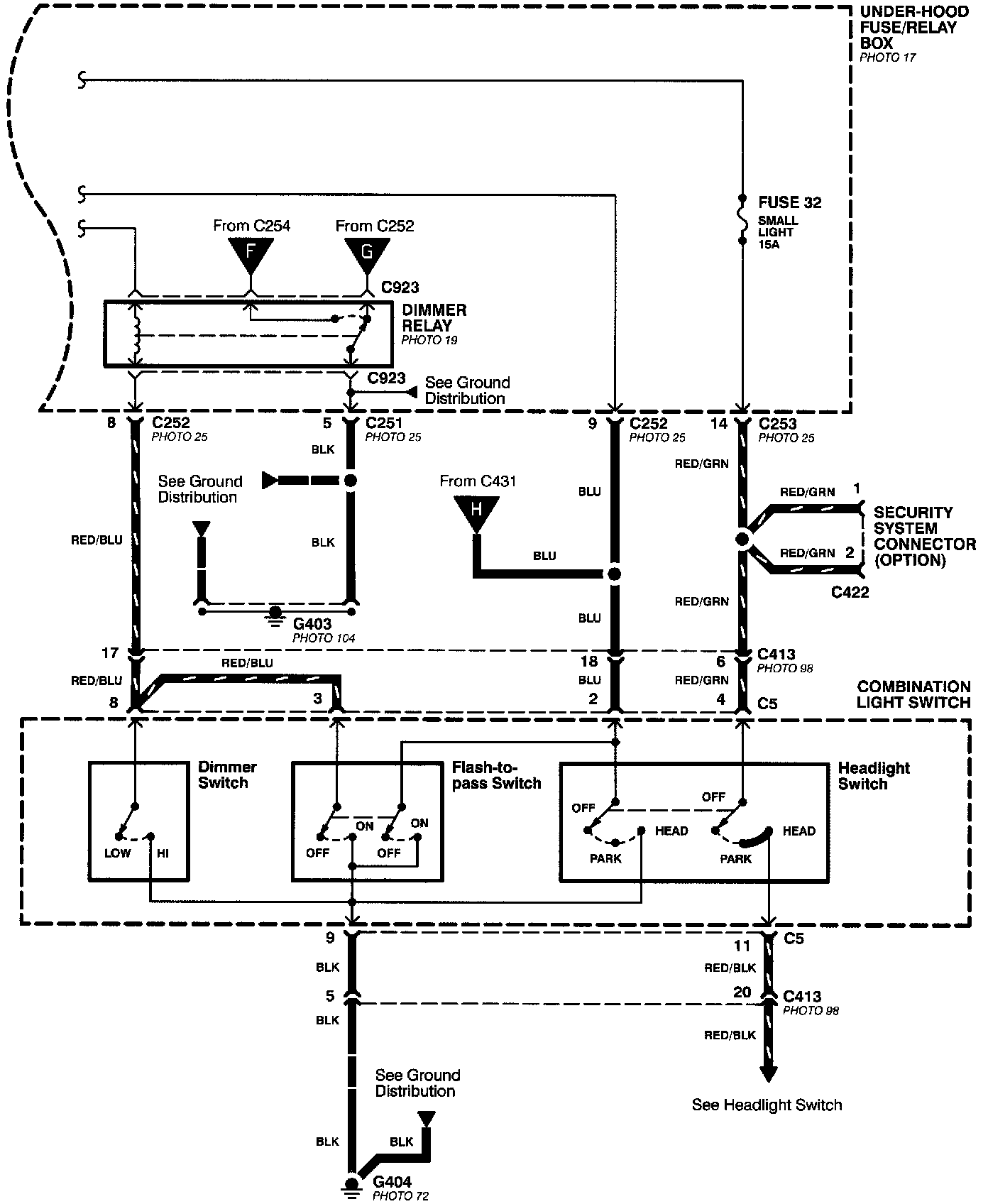

Headlights - Canada (Part 1 Of 3):

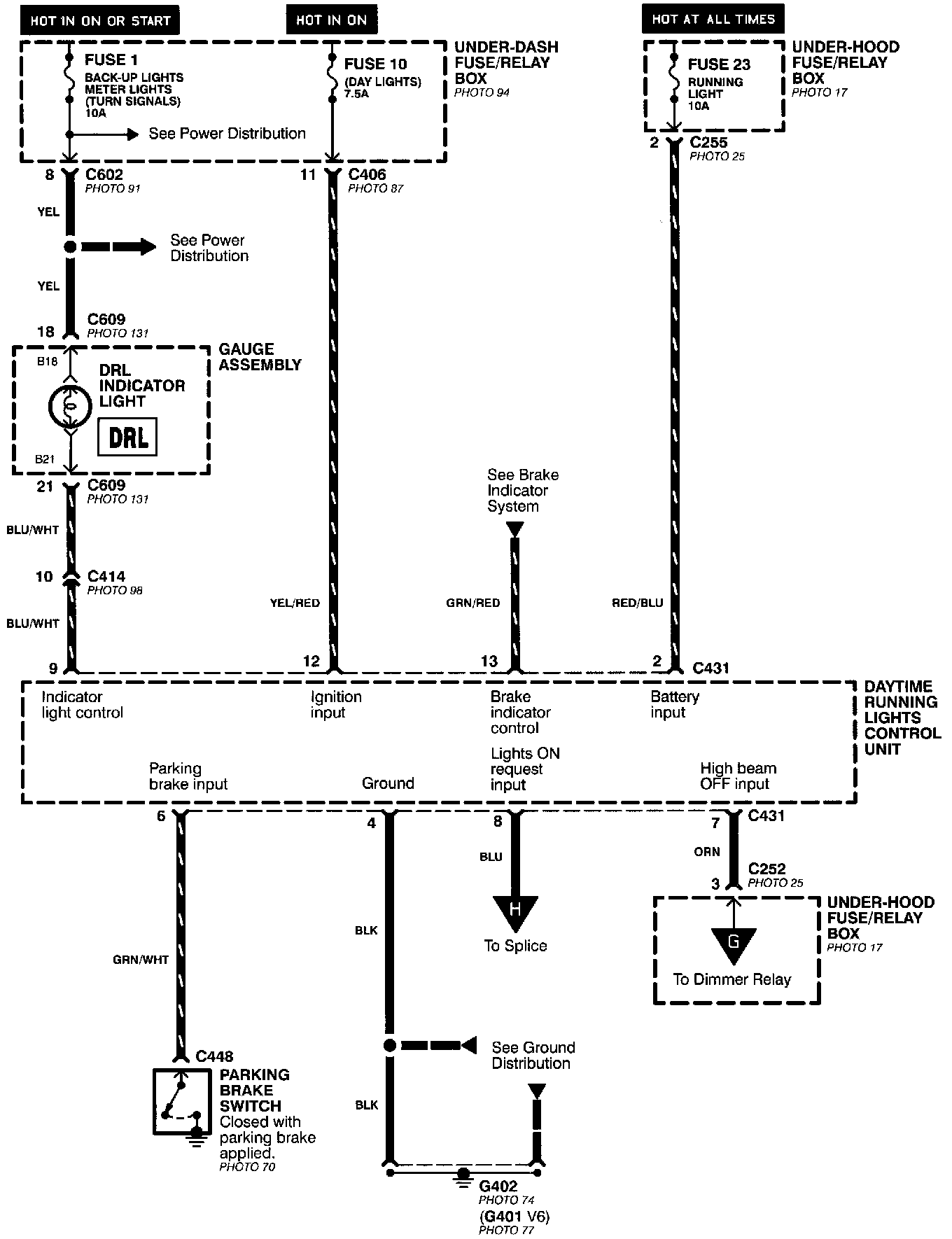

Headlights - Canada (Part 2 Of 3):

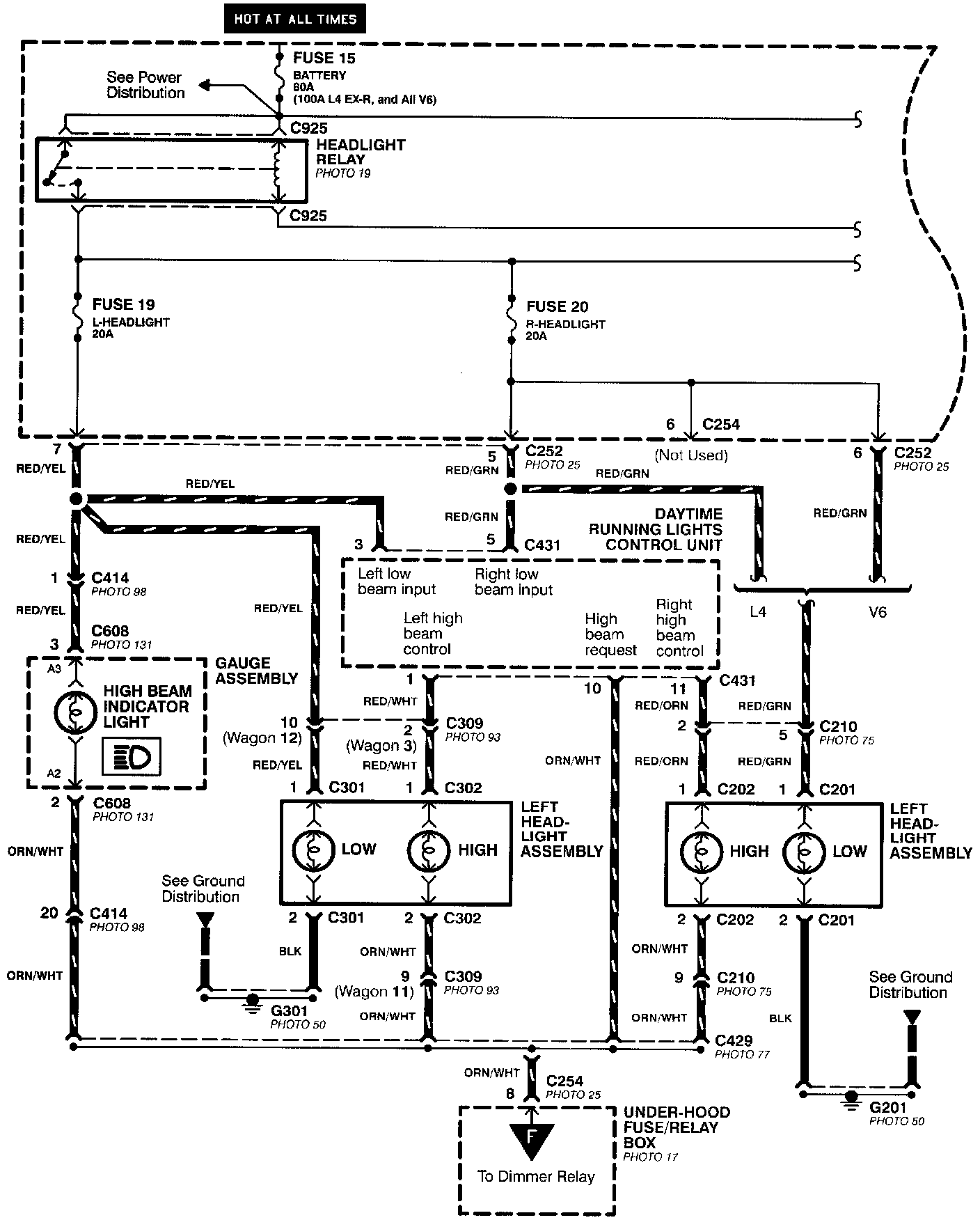

Headlights - Canada (Part 3 Of 3):
