Home >> Honda >> 1996 >> Accord Wagon L4-2.2L SOHC (16 Valve) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> System Diagram >> USA

USA

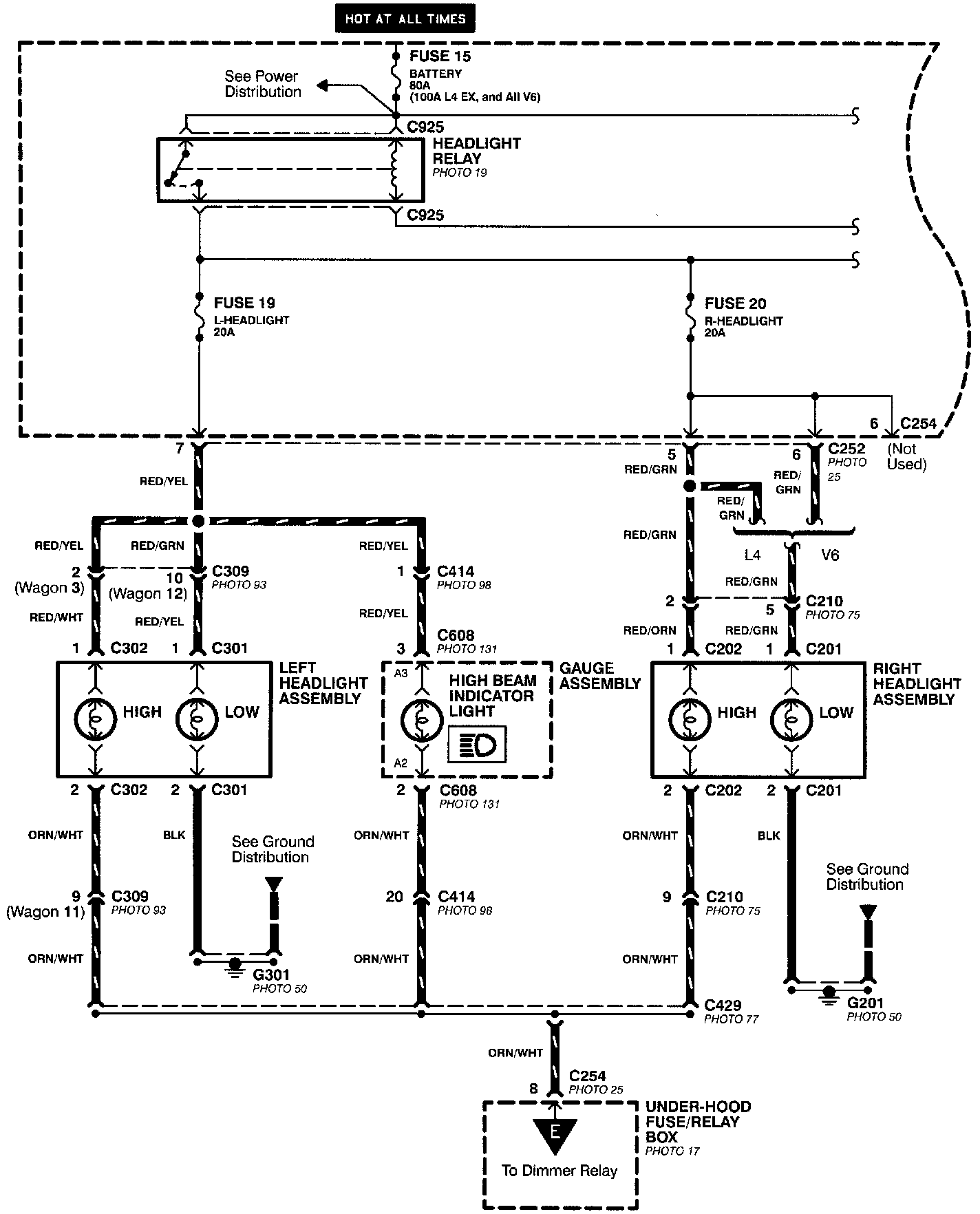

Headlights - USA (Part 1 Of 2):

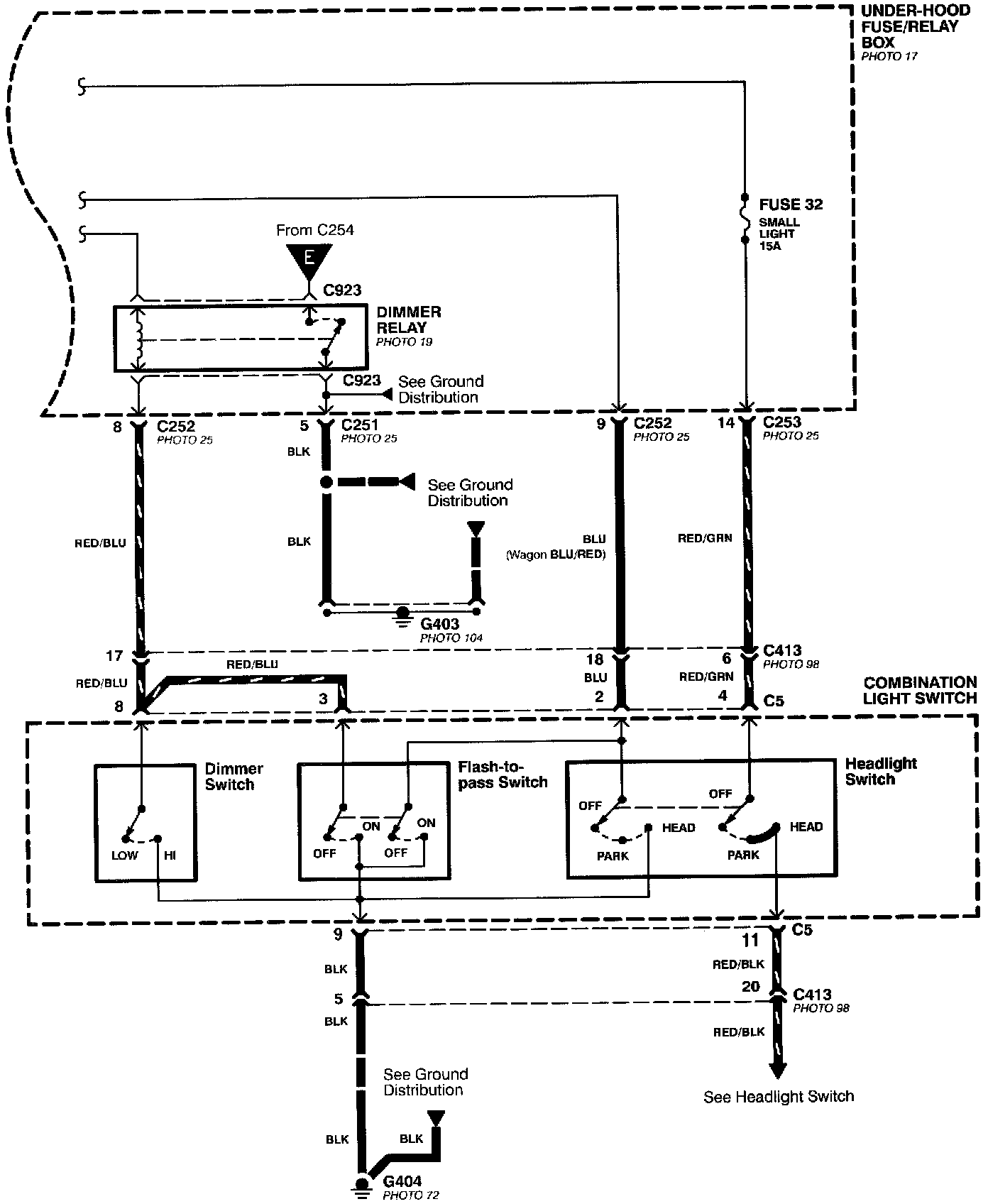

Headlights - USA (Part 2 Of 2):
