Honda
>>
1996
>>
Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Low Fuel Lamp/Indicator
Low Fuel Lamp/Indicator

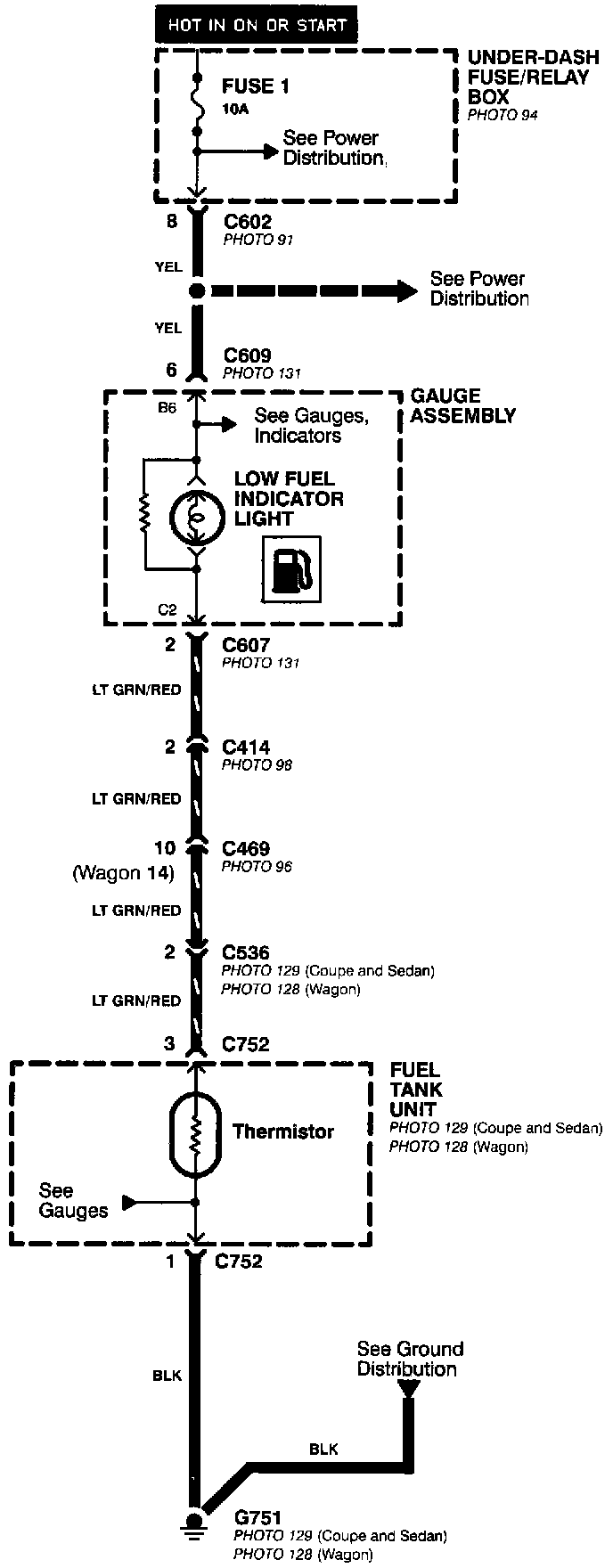

Low Fuel Indicator System:
