Instrument Panel, Gauges and Warning Indicators
>>
Transmission Shift Position Indicator Lamp

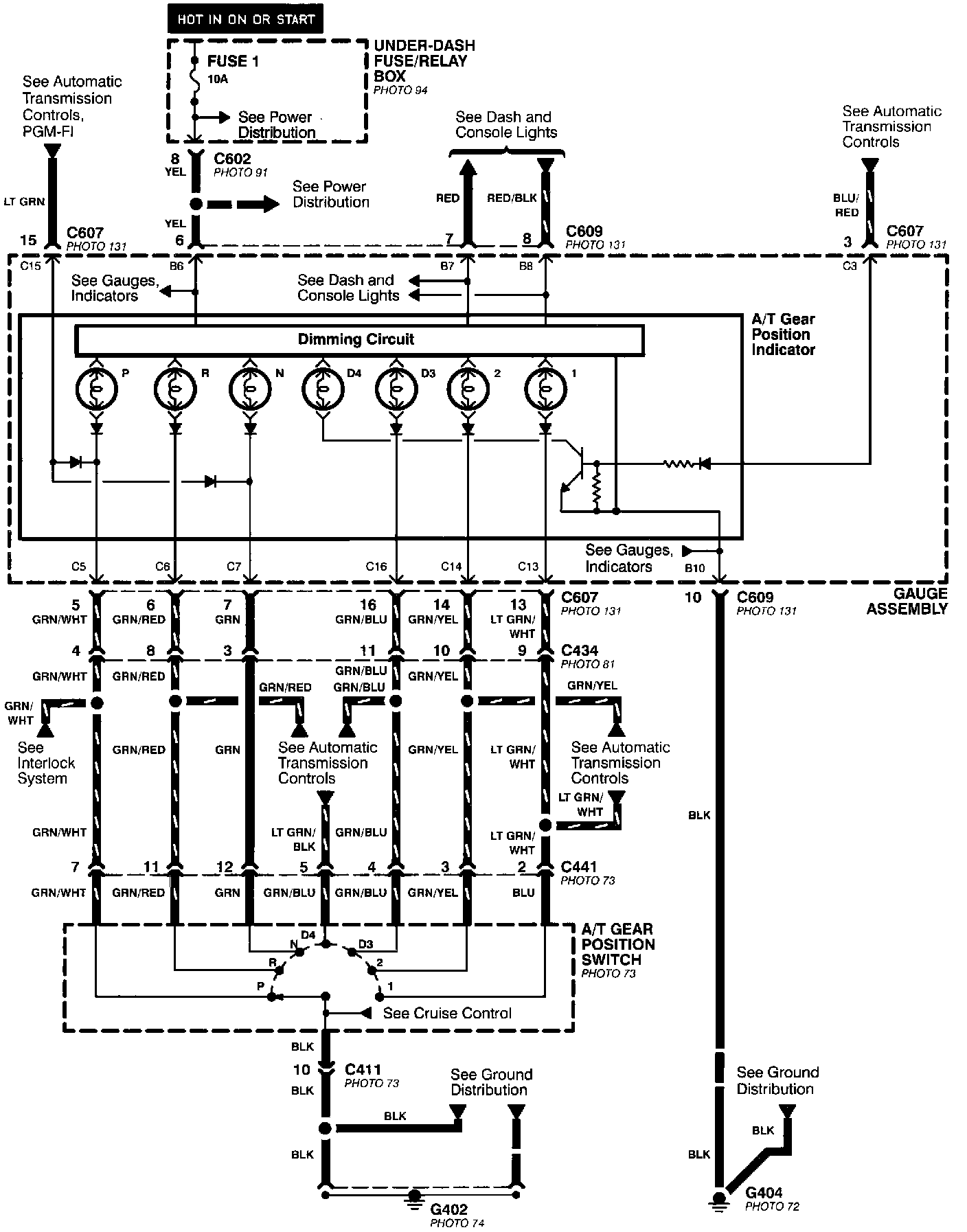

Transmission Shift Position Indicator Lamp
A/T Gear Position Indicator:
