Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

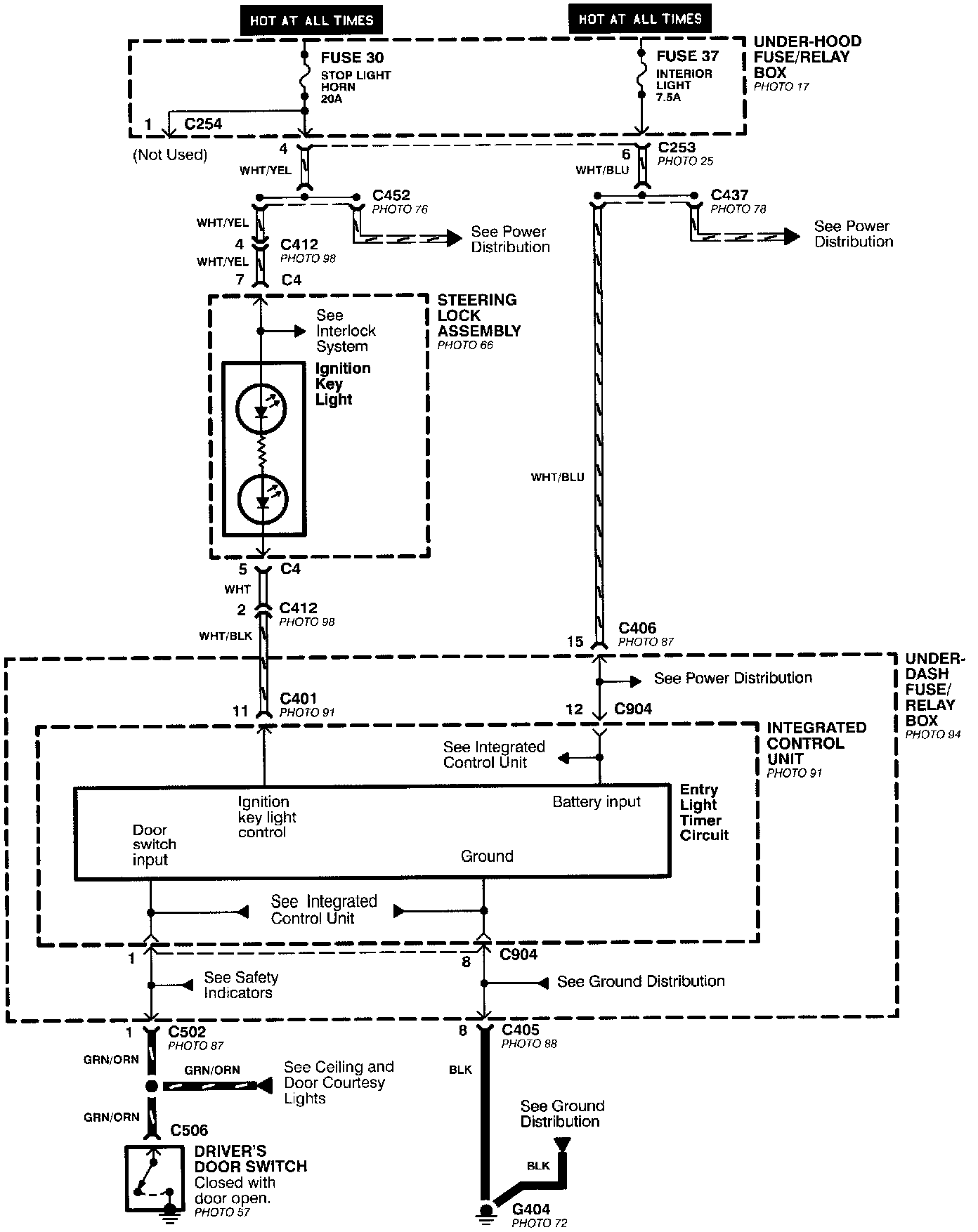

Key Cylinder Lamp
Key Cylinder Lamp
Entry Light Timer System:
