Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Oil Pressure Warning Lamp/Indicator
Oil Pressure Warning Lamp/Indicator

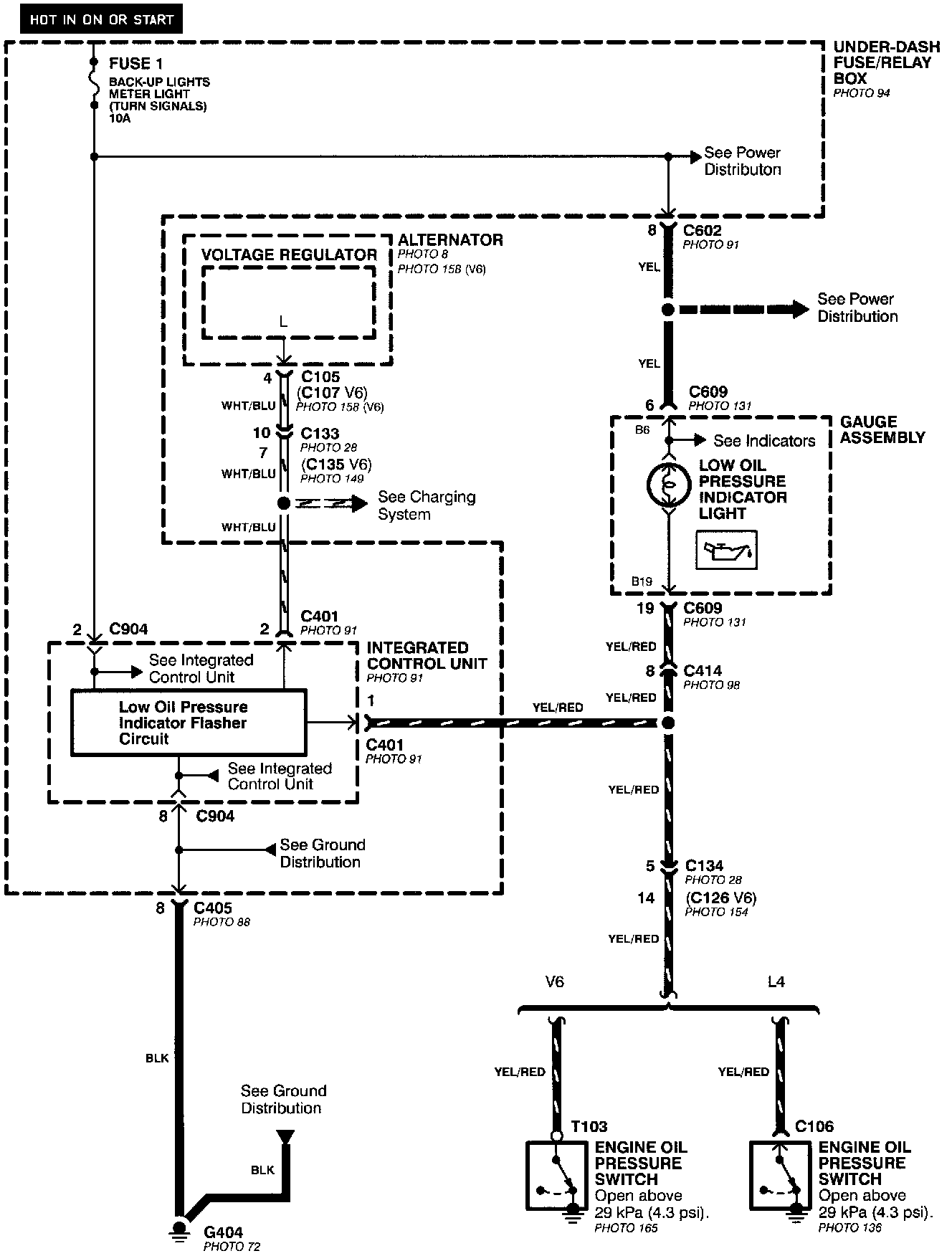

Oil Pressure Indicator System:
