DX, LX, and Canada Ex
DX, LX, and Canada Ex

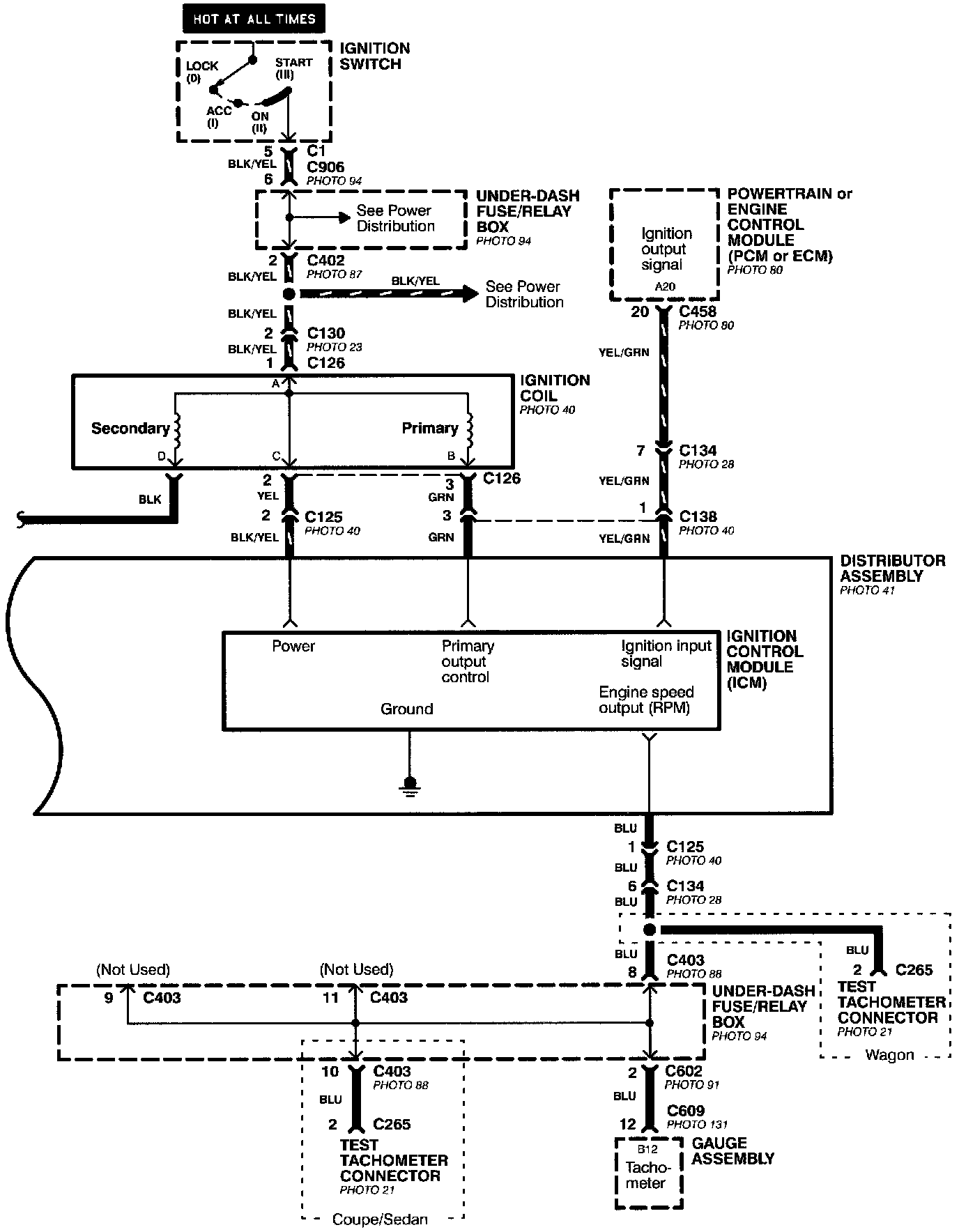

Ignition System - L4 (DX, LX, And Canada EX) (Part 1 Of 2):
Ignition System - L4 (DX, LX, And Canada EX) (Part 2 Of 2):
