Integrated Control Unit
Integrated Control Unit

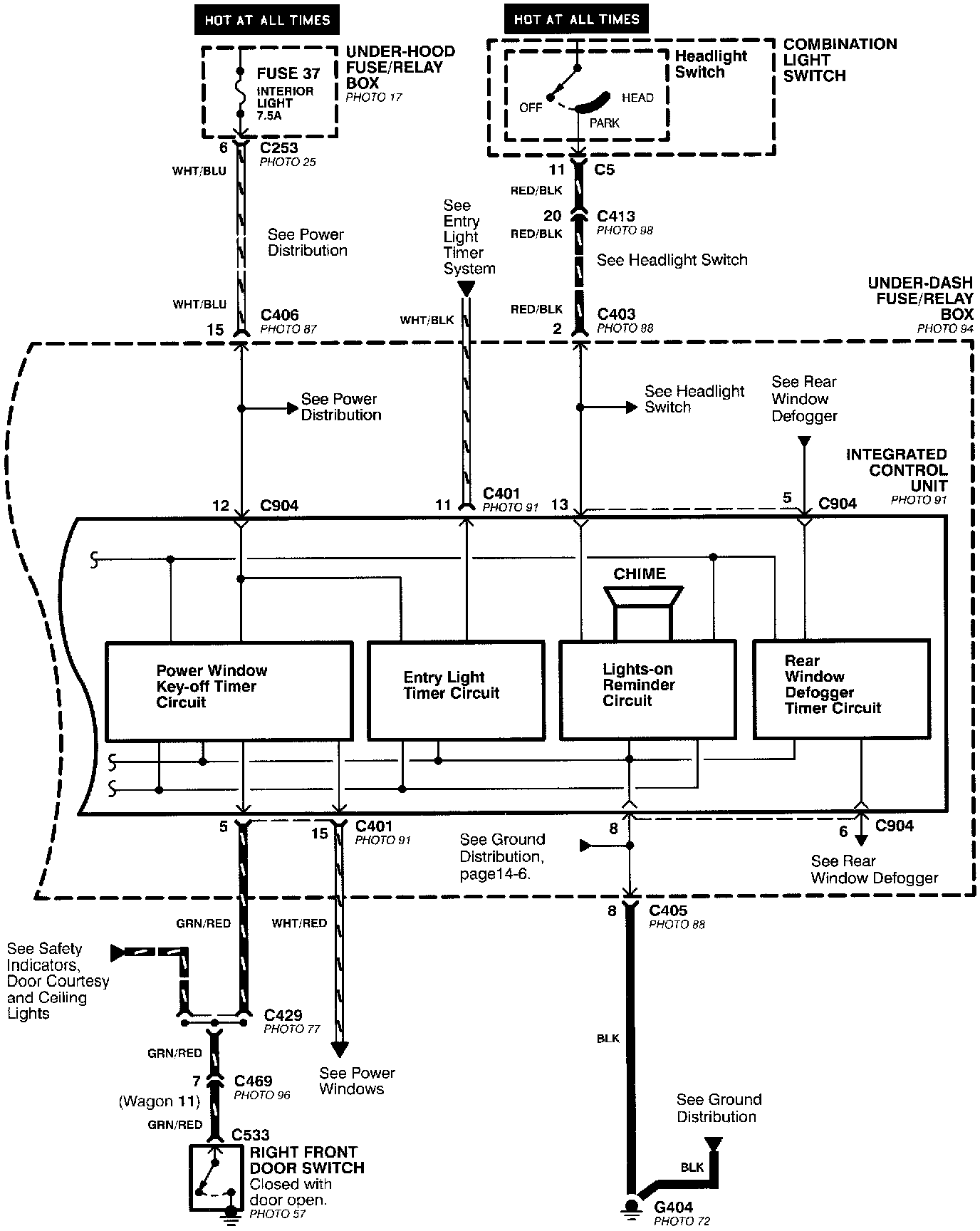

Integrated Control Unit (Part 1 Of 2):

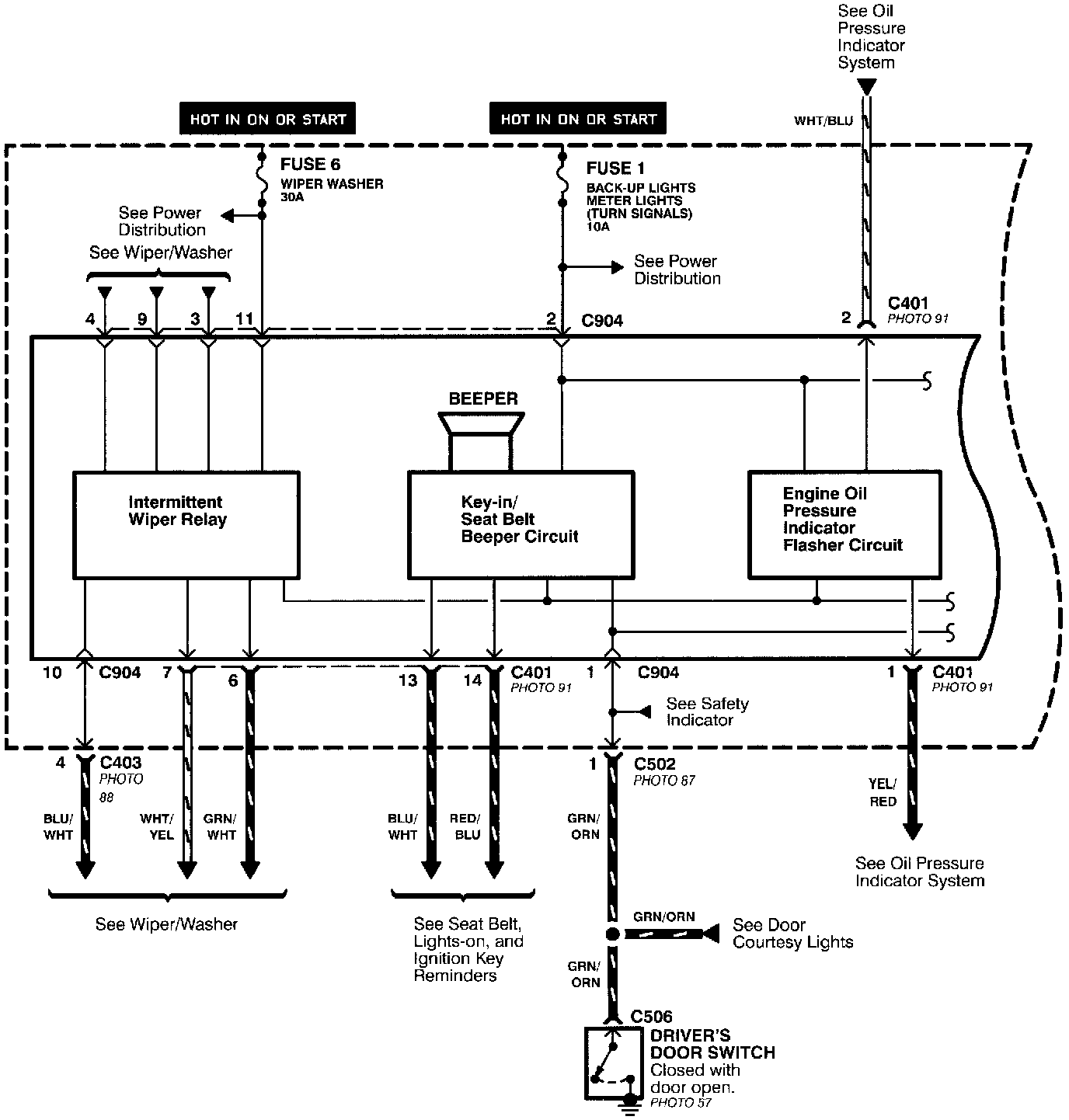

Integrated Control Unit (Part 2 Of 2):
