USA Ex, Canada Ex-R

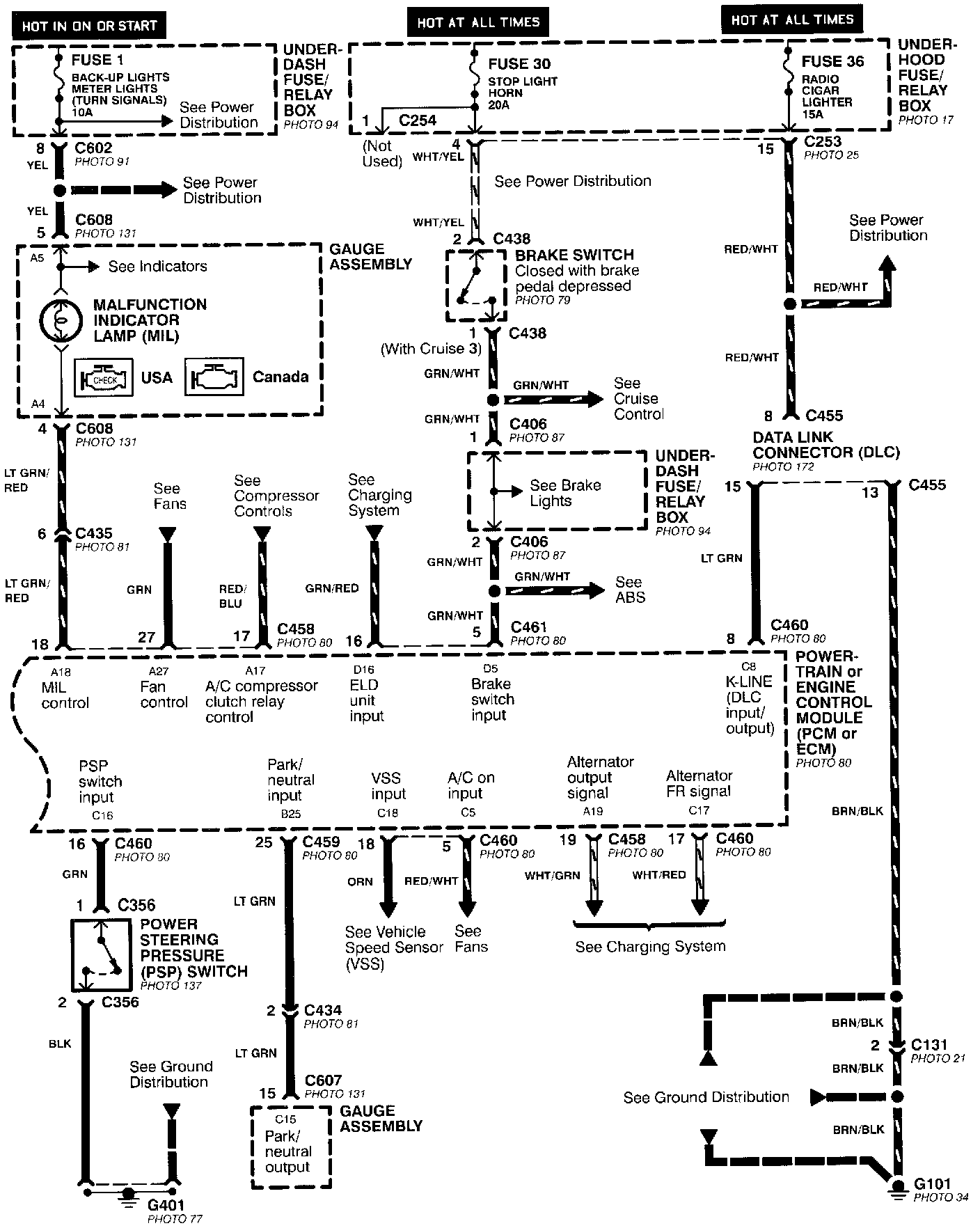

Programmed Fuel Injection System (PGM-FI) (Part 1 Of 6):

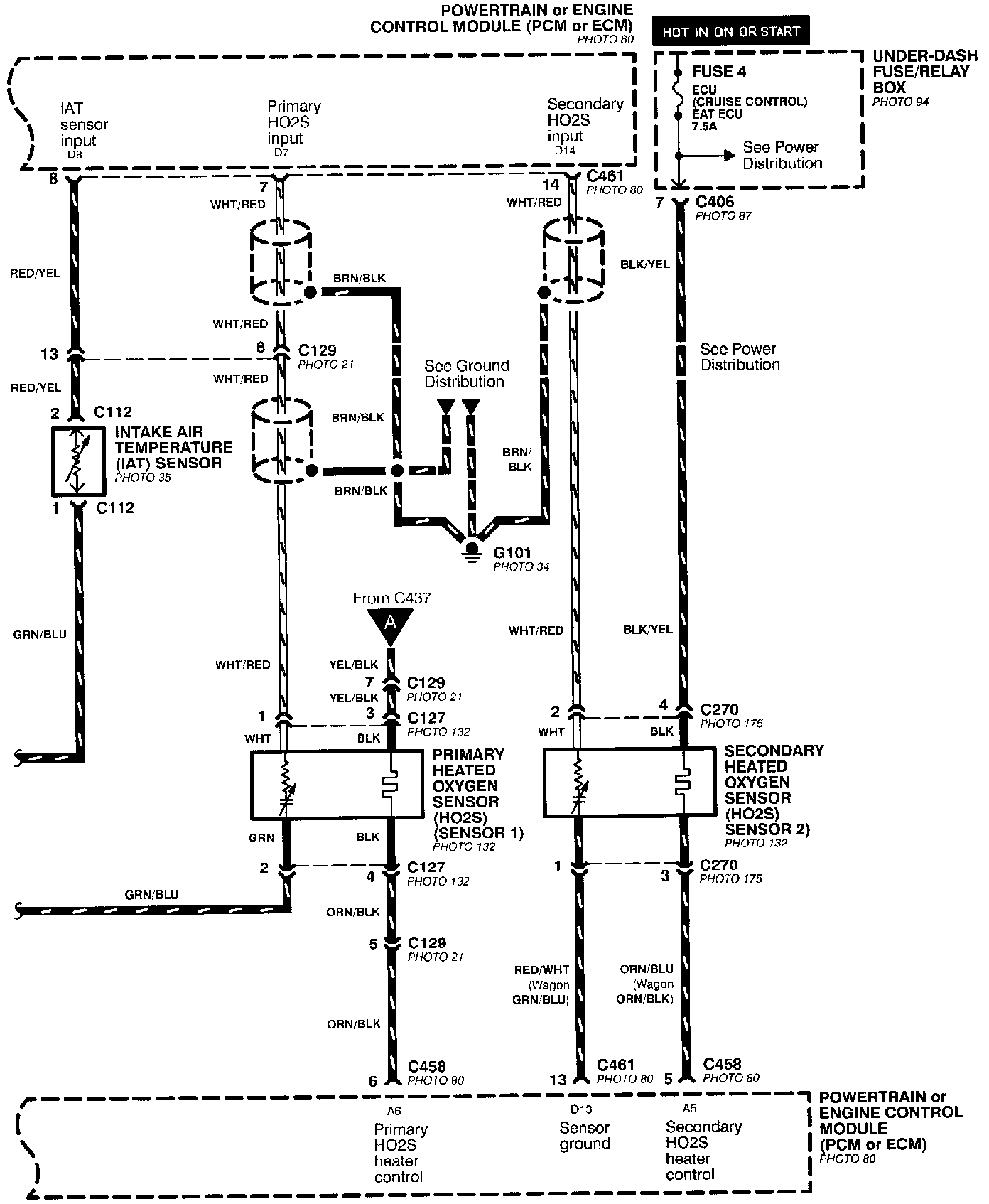

Programmed Fuel Injection System (PGM-FI) (Part 2 Of 6):

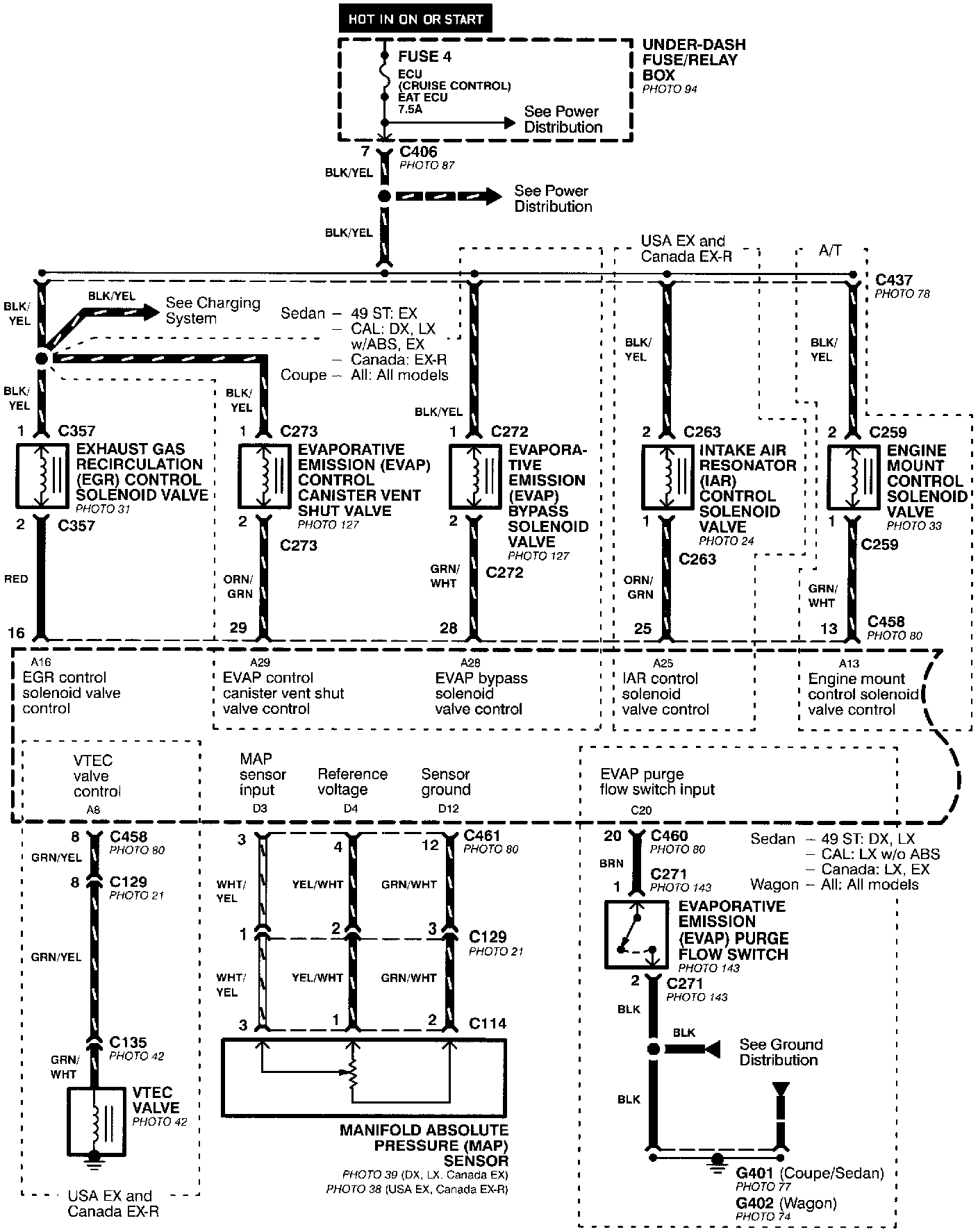

Programmed Fuel Injection System (PGM-FI) (Part 3 Of 6):

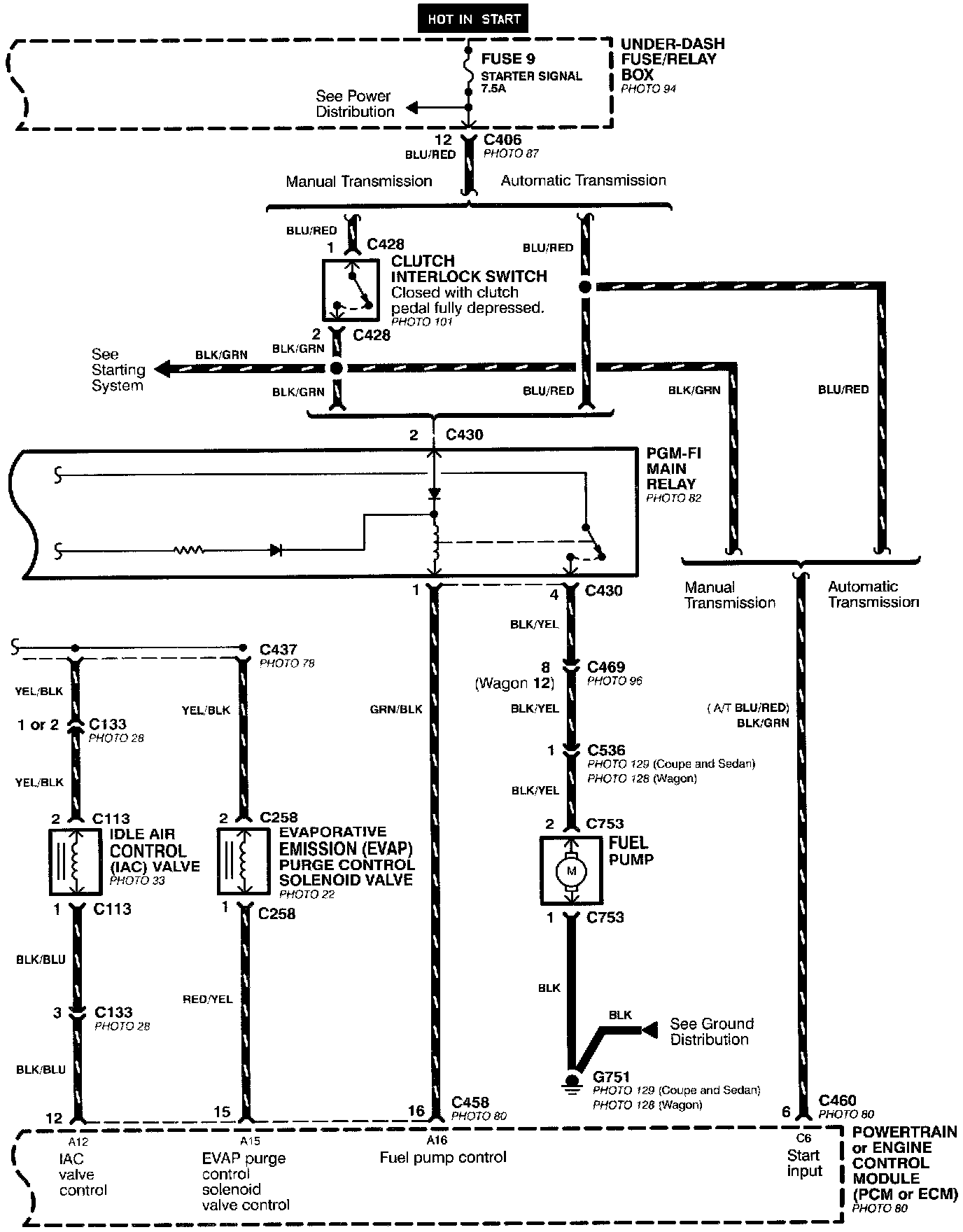

Programmed Fuel Injection System (PGM-FI) (Part 4 Of 6):

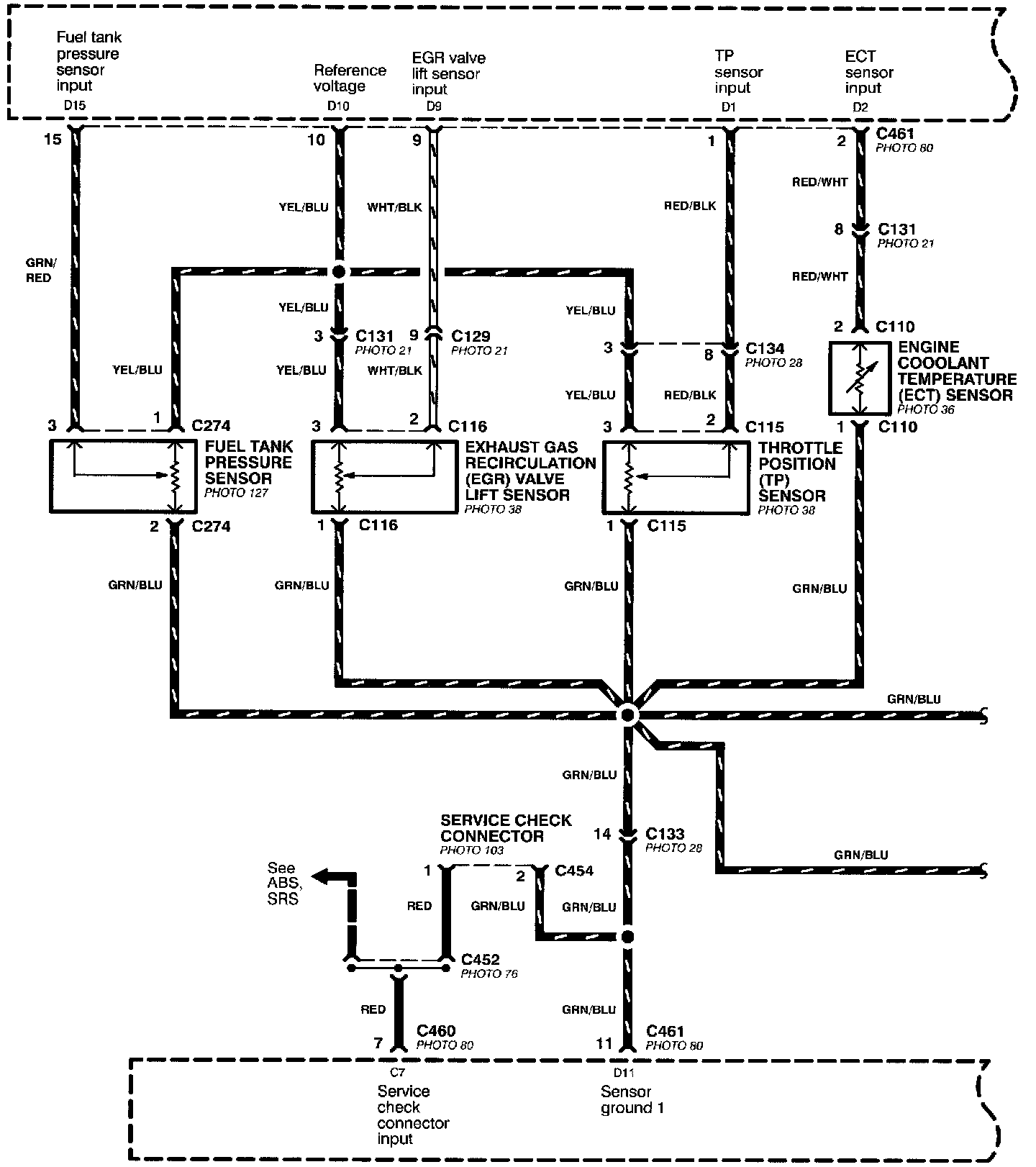

Programmed Fuel Injection System (PGM-FI) (Part 5 Of 6):

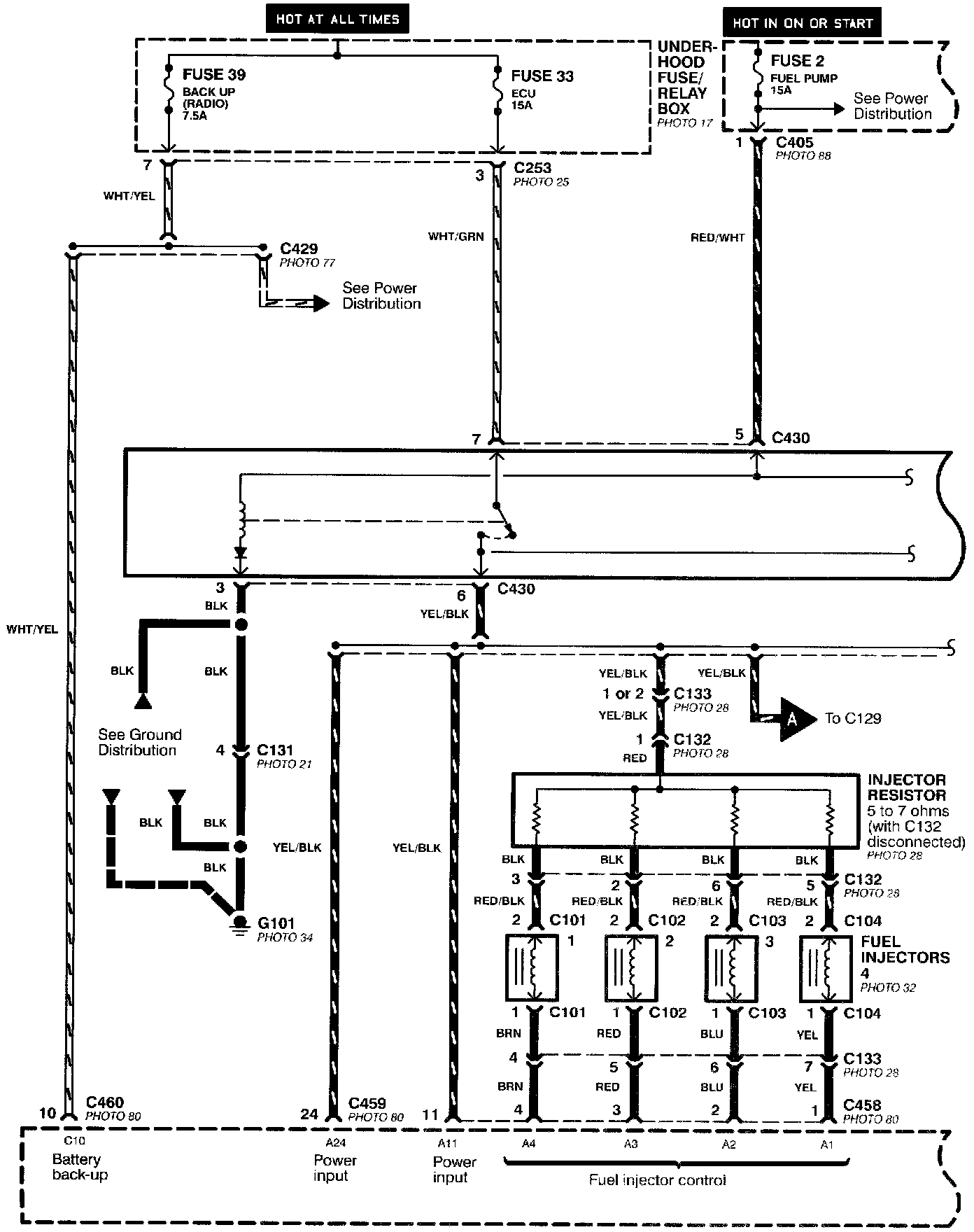

Programmed Fuel Injection System (PGM-FI) (Part 6 Of 6):

Programmed Fuel Injection System (PGM-FI) (USA EX, Canada EX-R) (Part 1 Of 2) Note: On USA EX & Canada EX-R Models C116 Connects Directly Onto The EGR Valve Lift Sensor.:

Programmed Fuel Injection System (PGM-FI) (USA EX, Canada EX-R) (Part 2 Of 2):
