Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk Lamp
>>
Ex
Ex

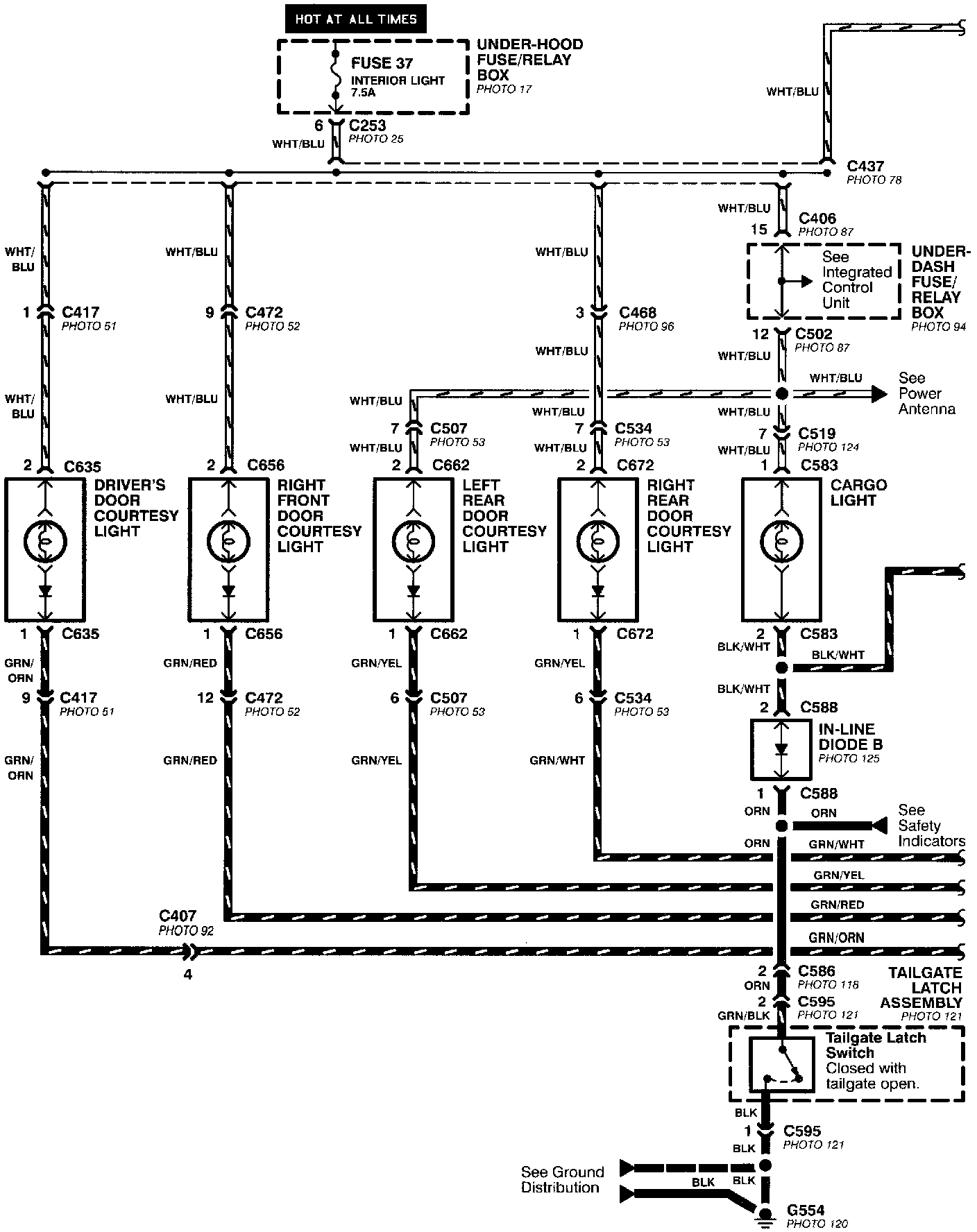

Ceiling, Door Courtesy, Spot And Cargo Lights- EX (Part 1 Of 2):

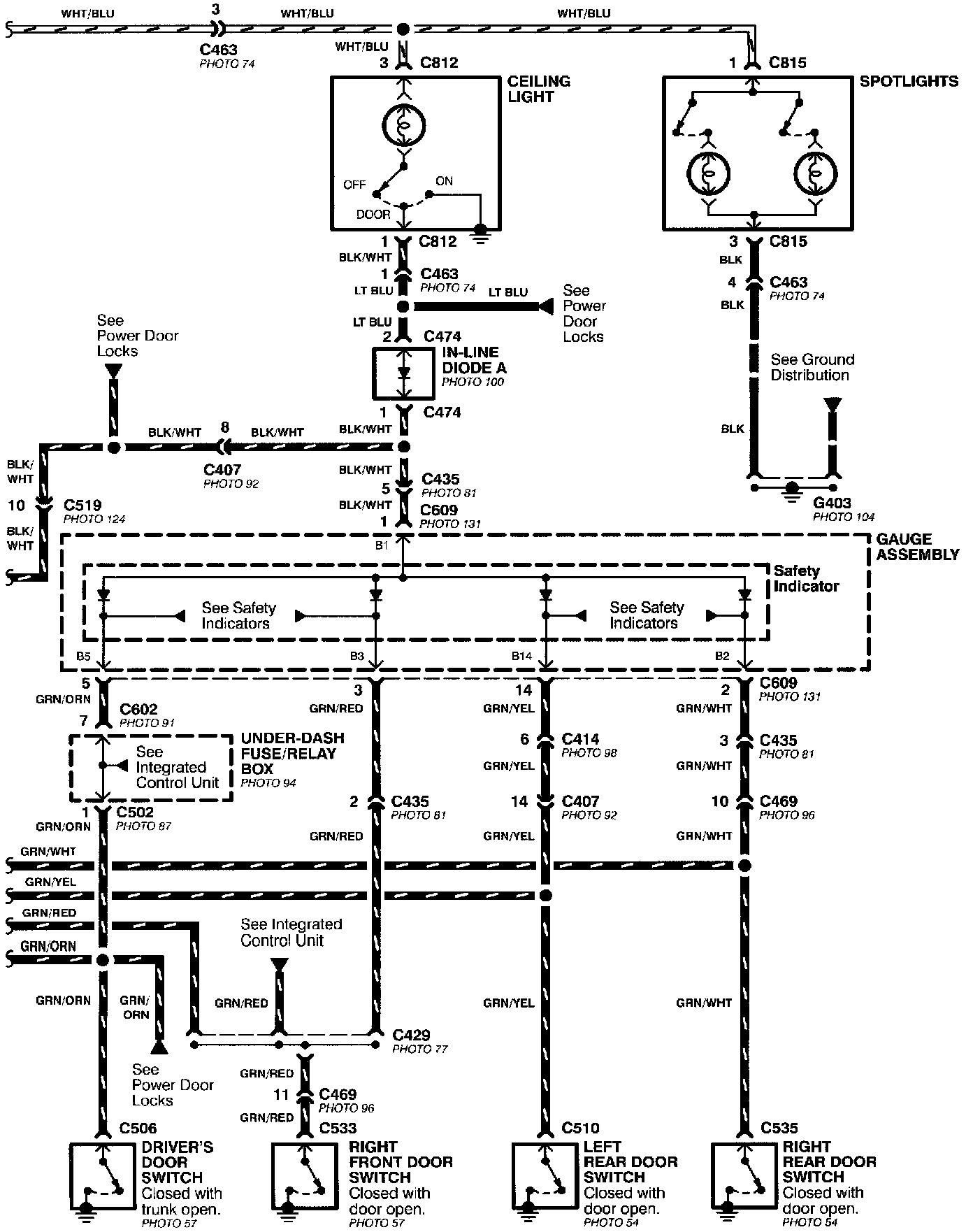

Ceiling, Door Courtesy, Spot And Cargo Lights- EX (Part 2 Of 2):
