Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

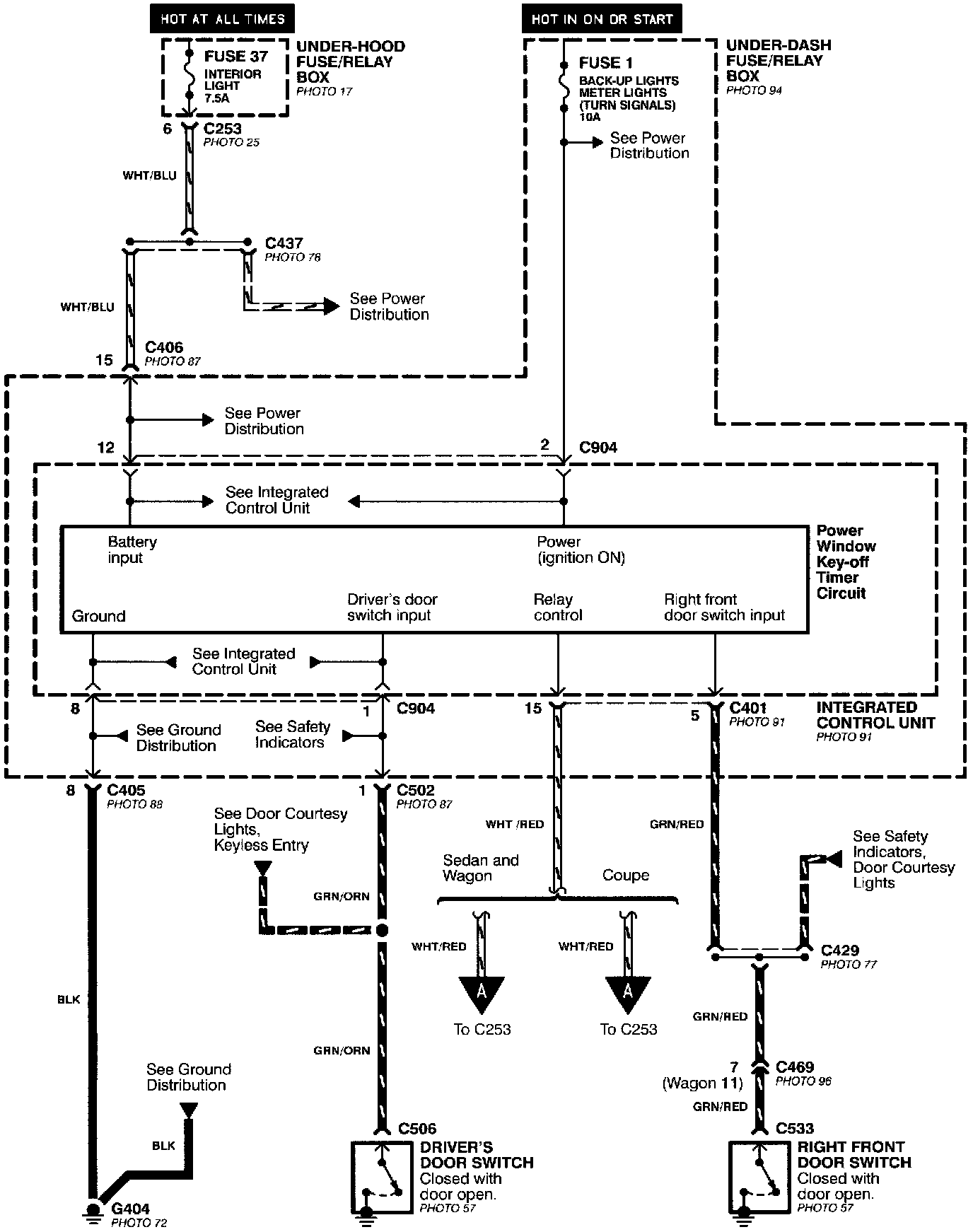

Power Windows - Key-OFF Timer Circuit:

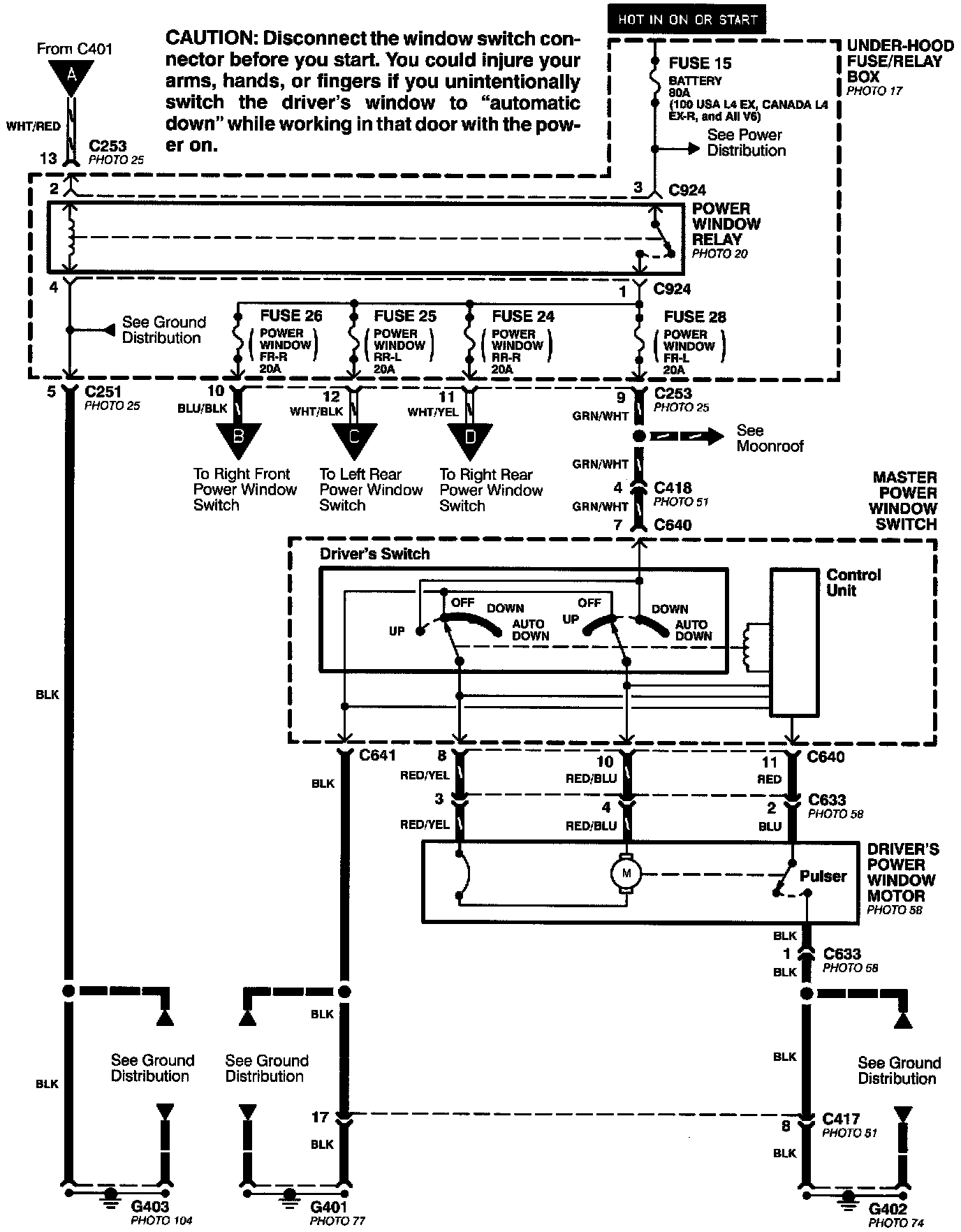

Power Windows - Driver's Door:

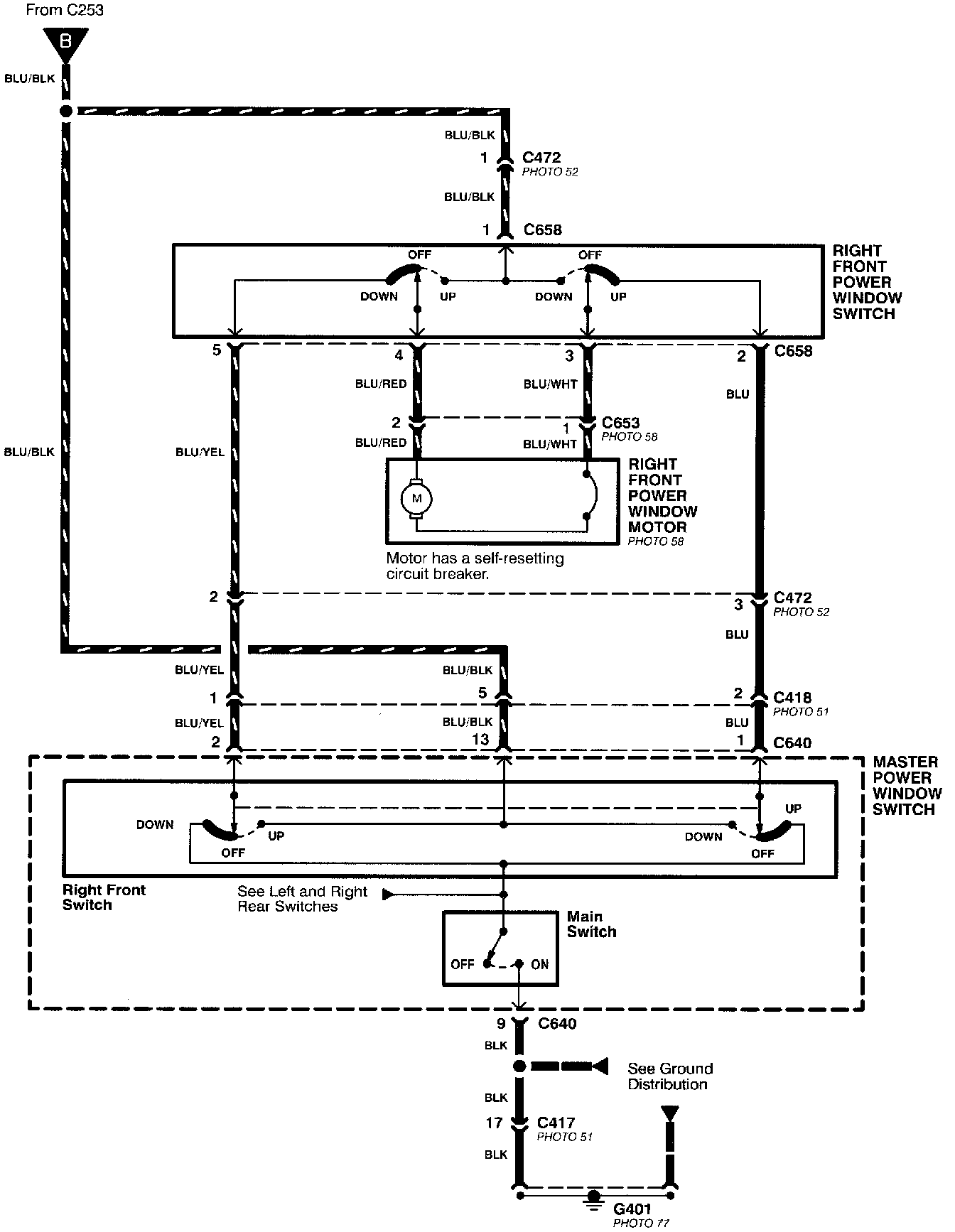

Power Windows - Right Front Door:

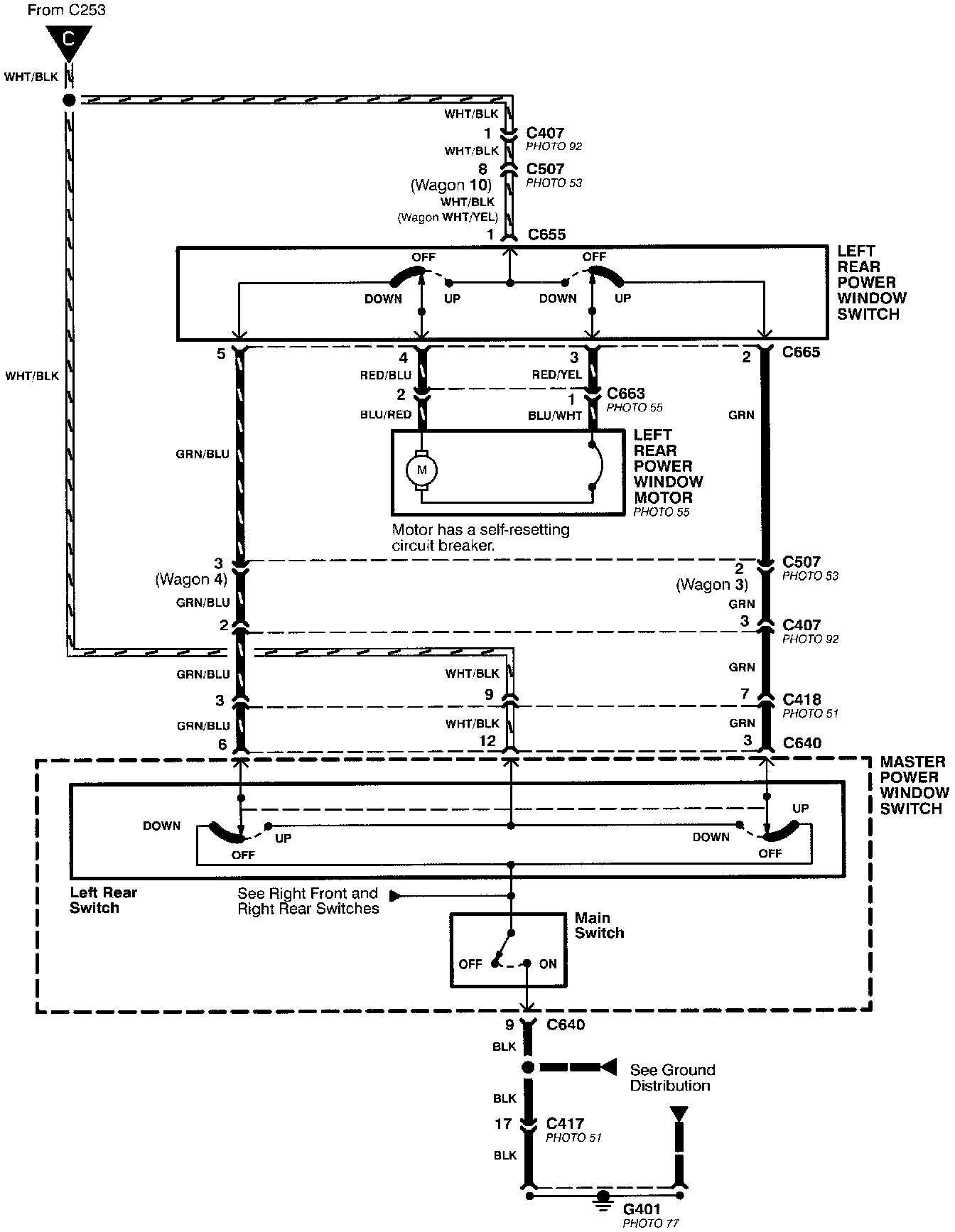

Power Windows - Left Rear Door:

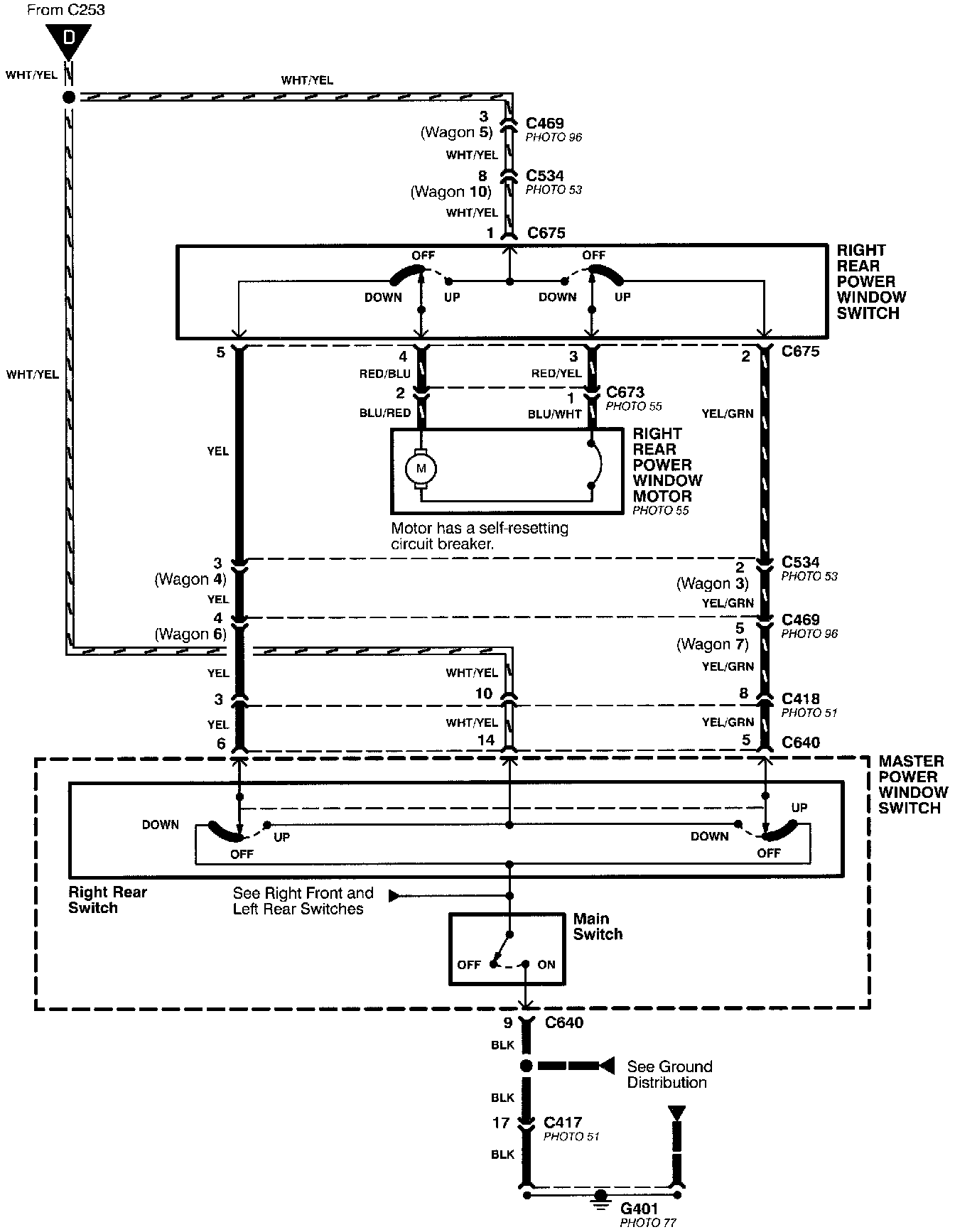

Power Windows - Right Rear Door:
