Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

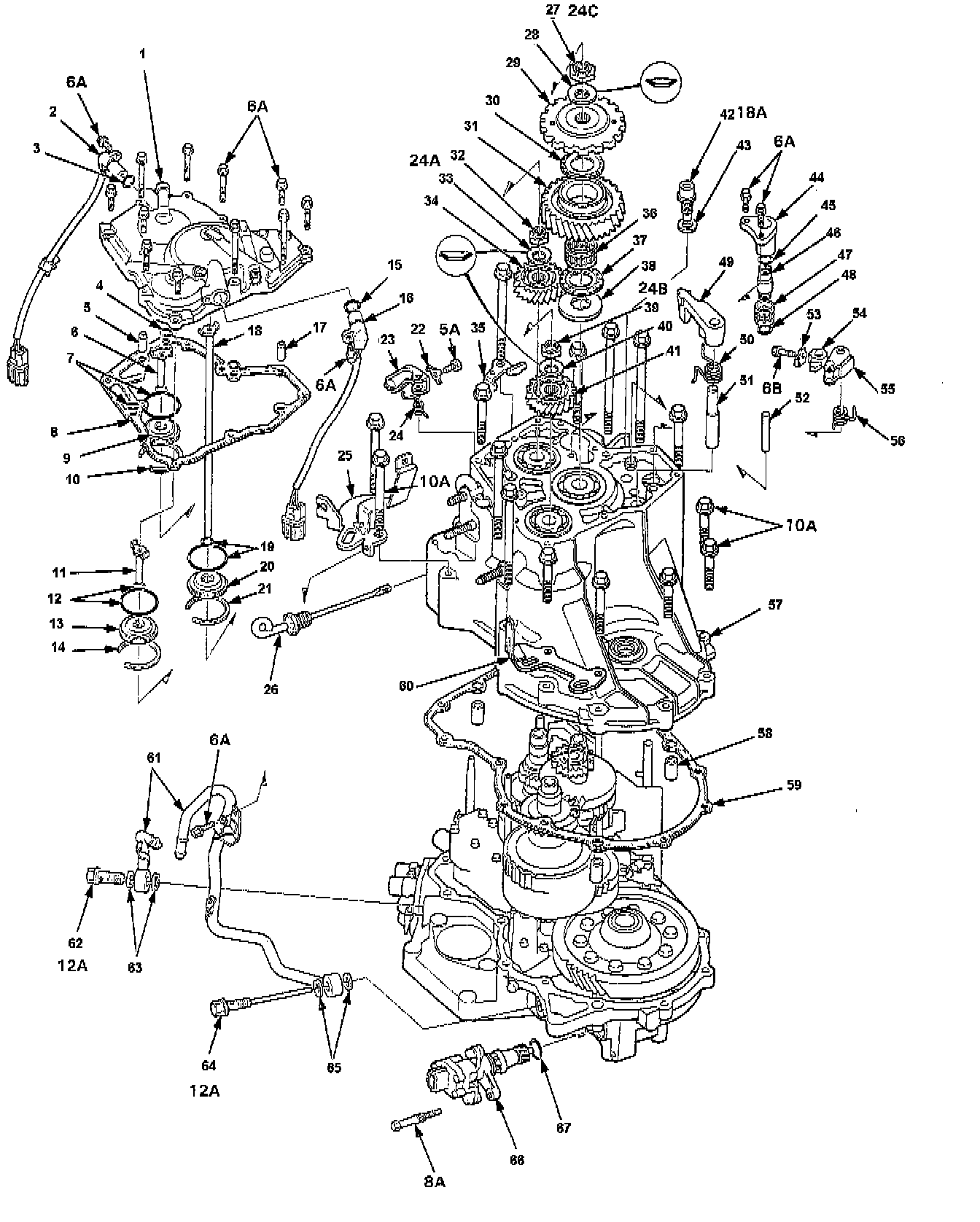

Part 1 Of 2:

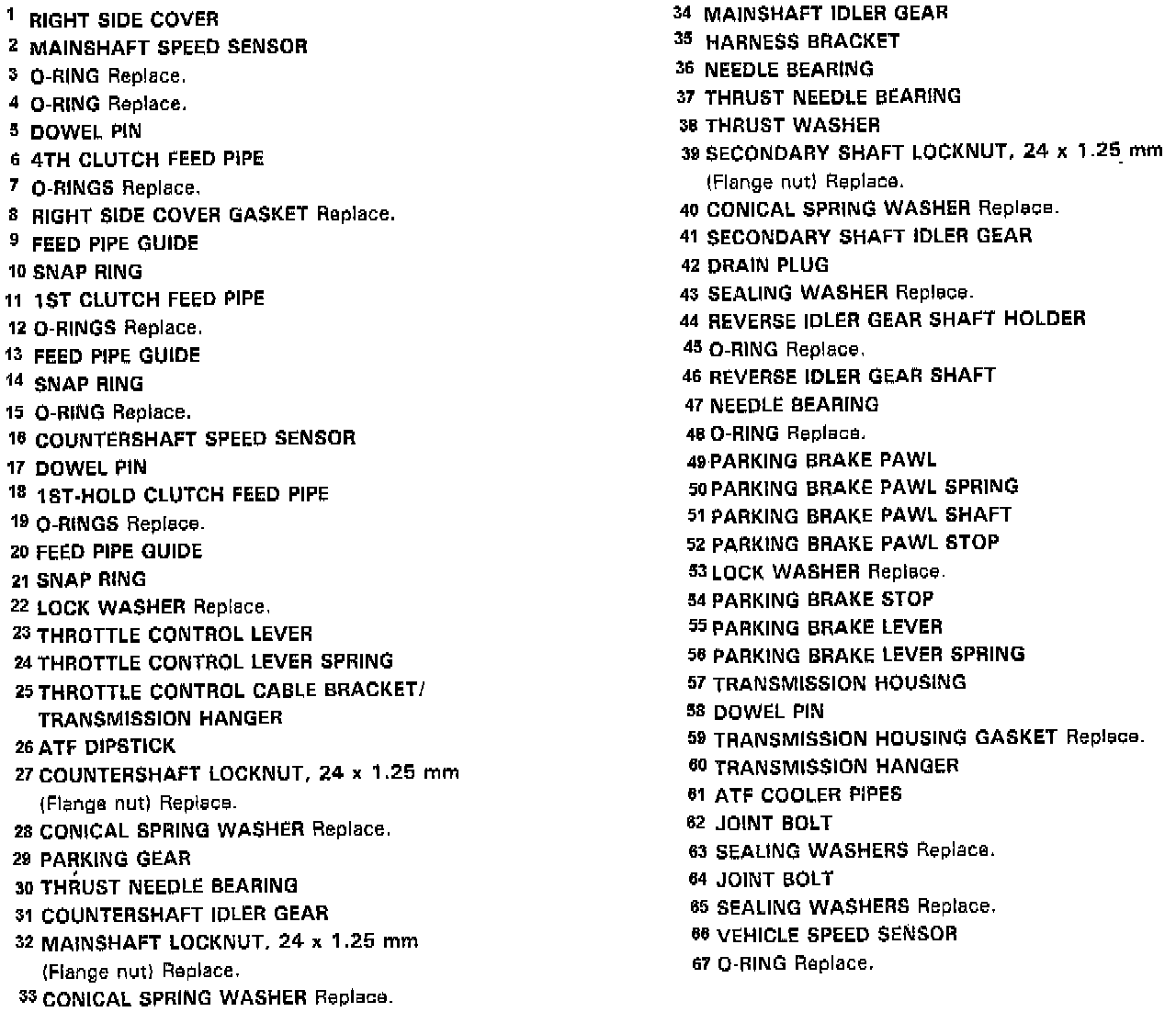

Part 2 Of 2:
