Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

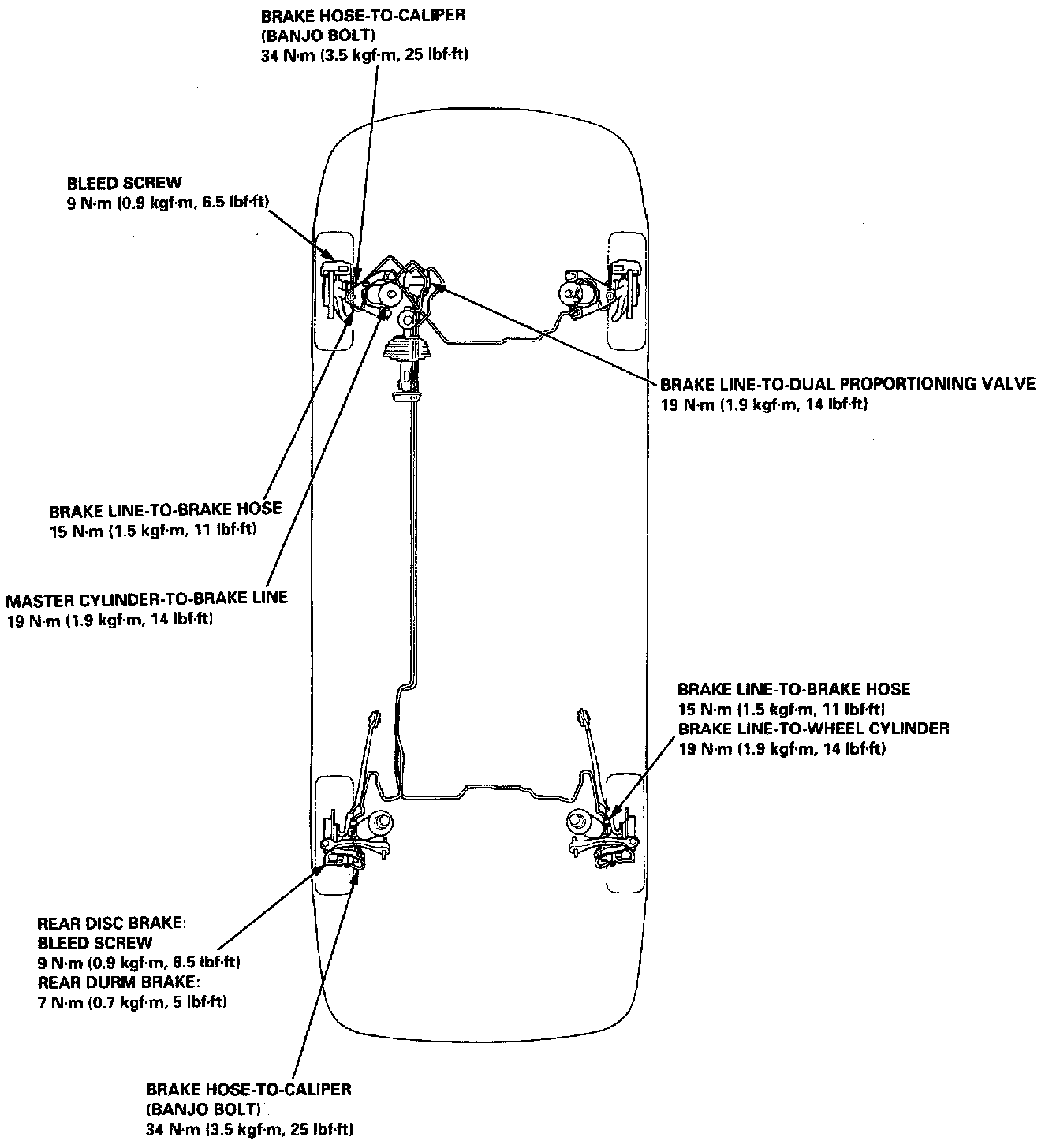

BRAKE HOSES AND PIPES

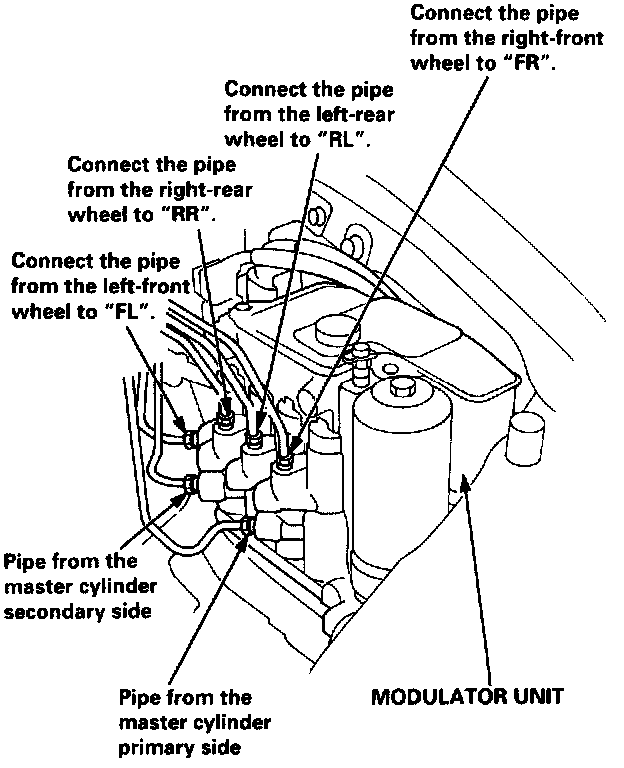

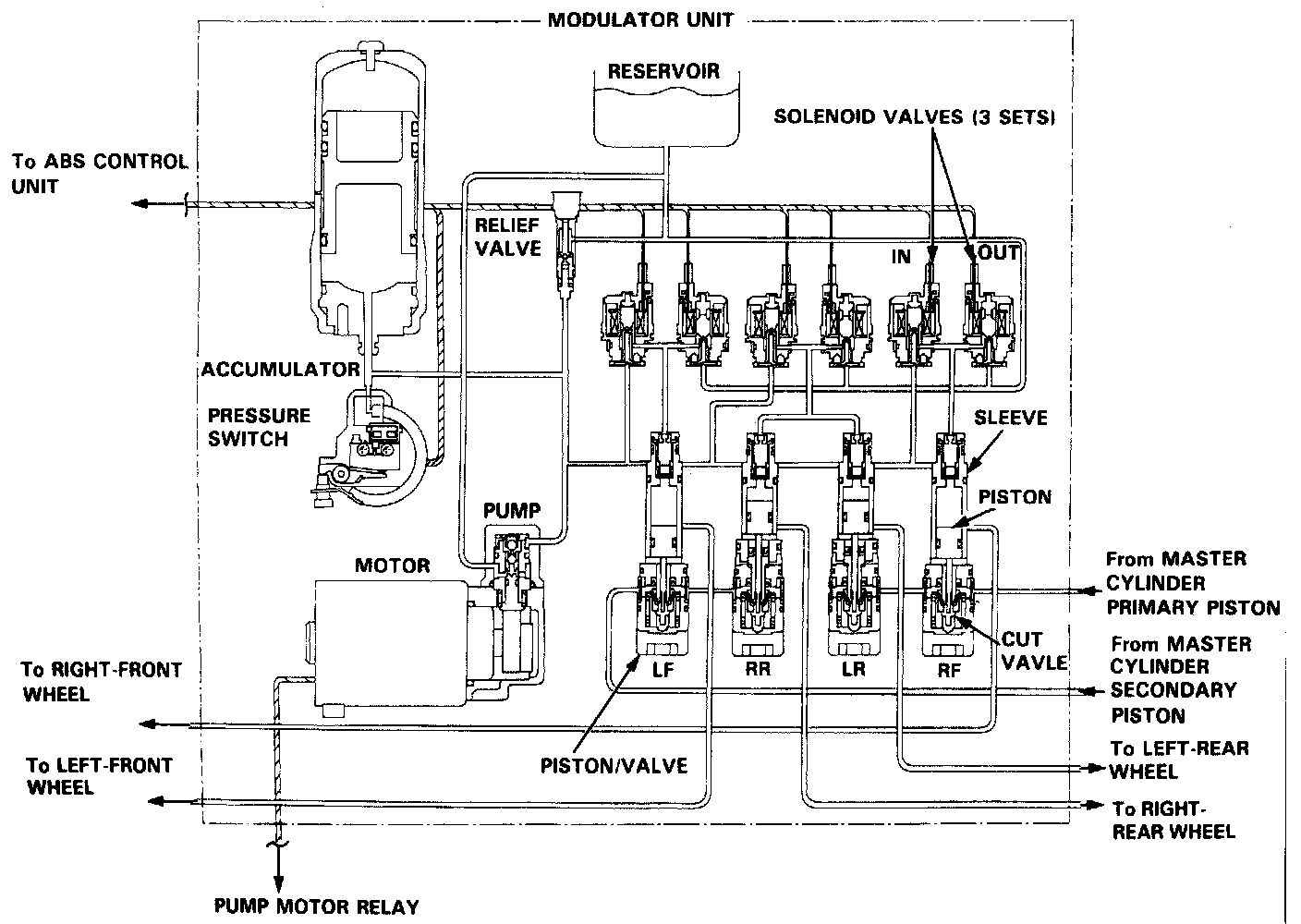

BRAKE MODULATOR UNIT
