Front Passenger's Door Wire Harness

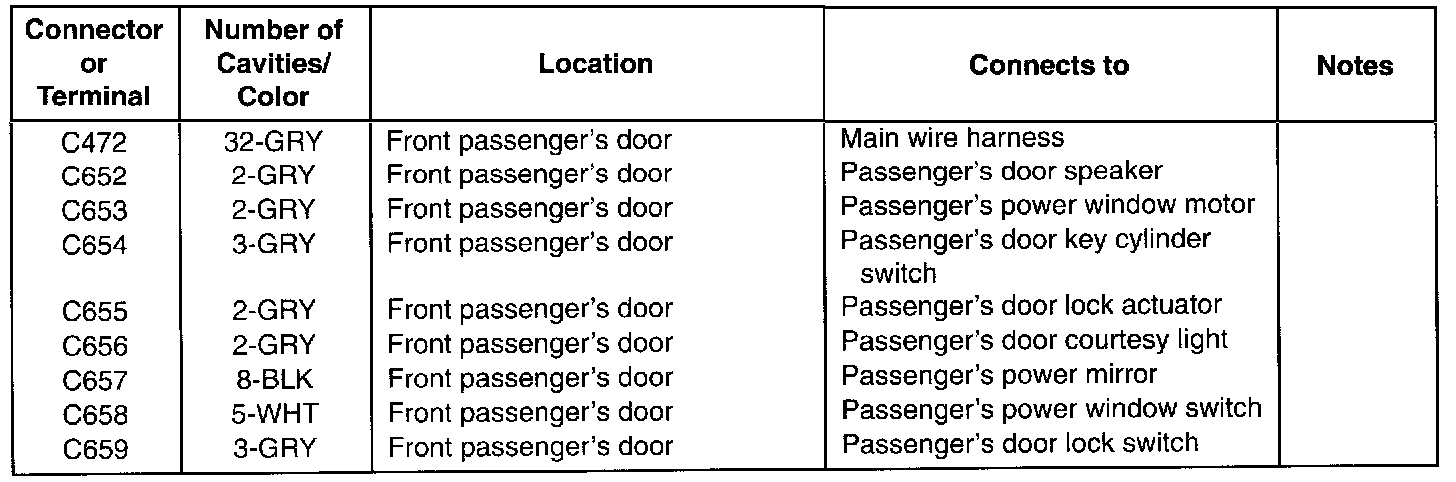

Front Passenger's Door Wire Harness:

Front Passenger's Door Wire Harness:
