Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

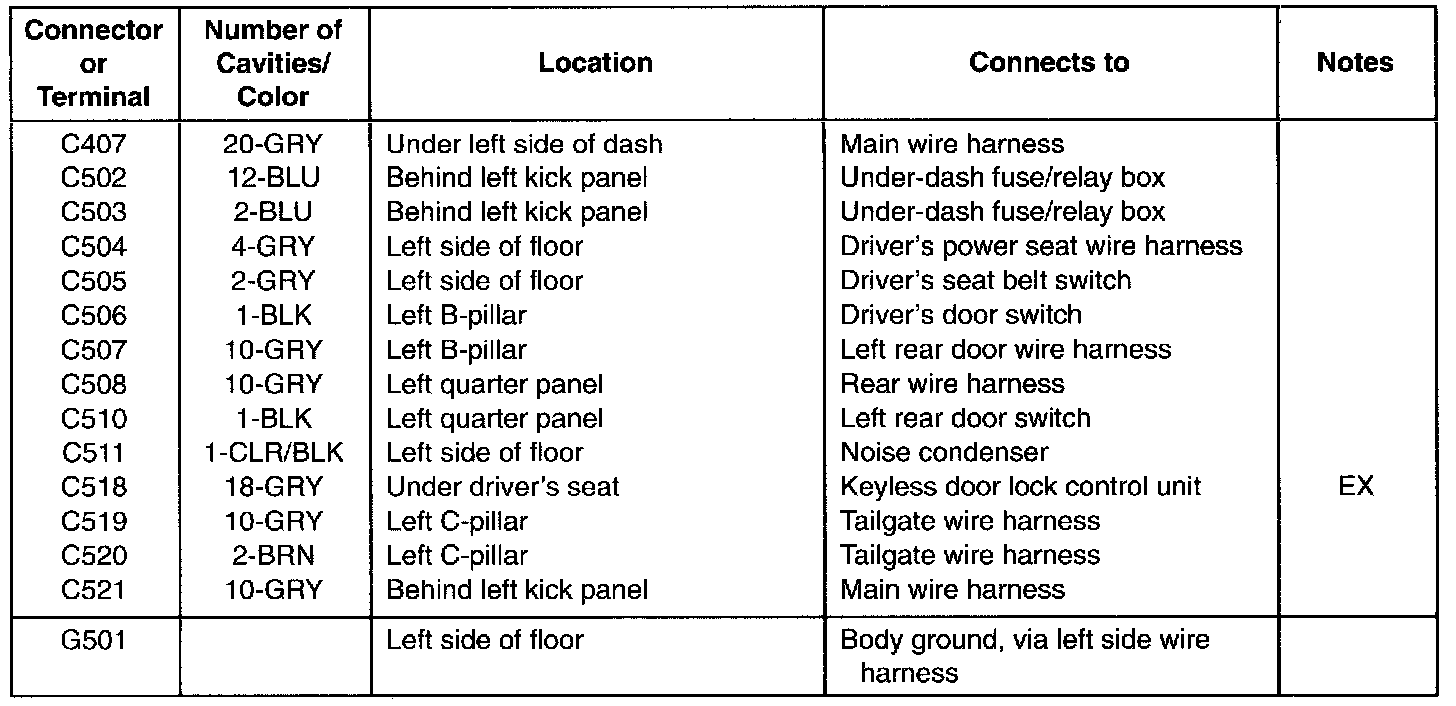

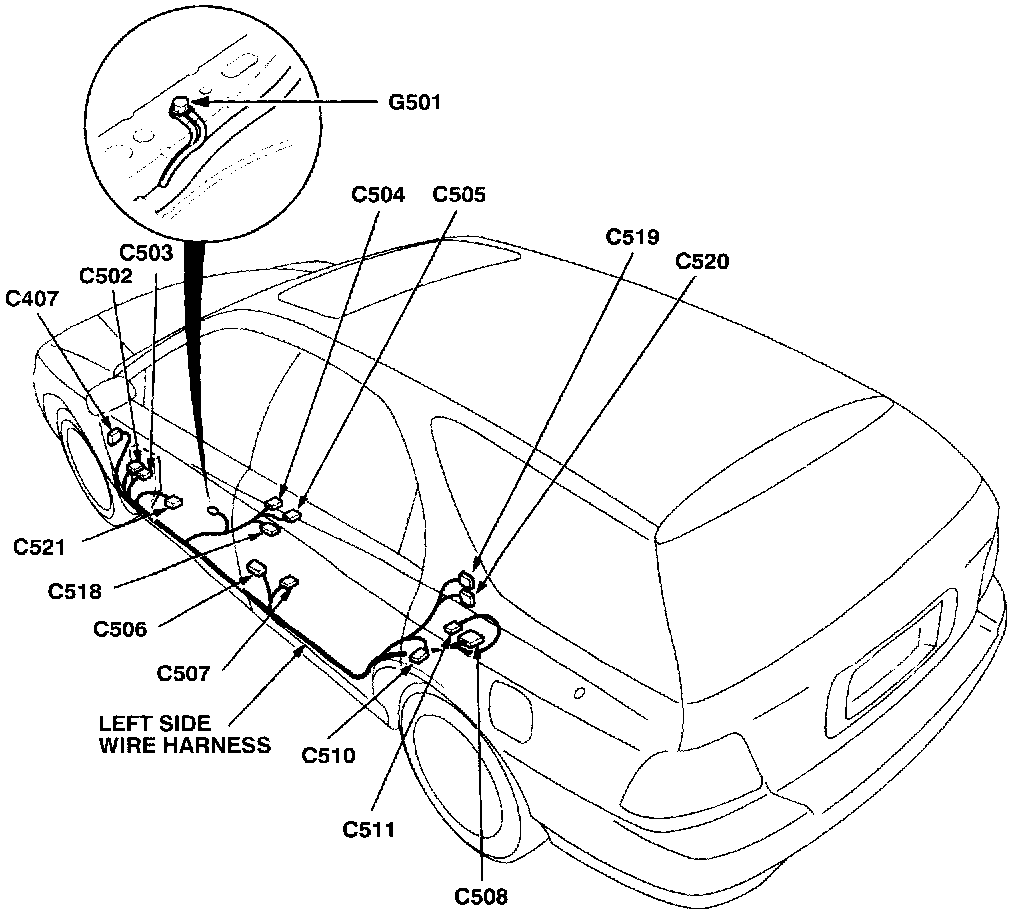

Left Side Wire Harness
Left Side Wire Harness
Left Side Wire Harness:
Left Side Wire Harness:
