Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

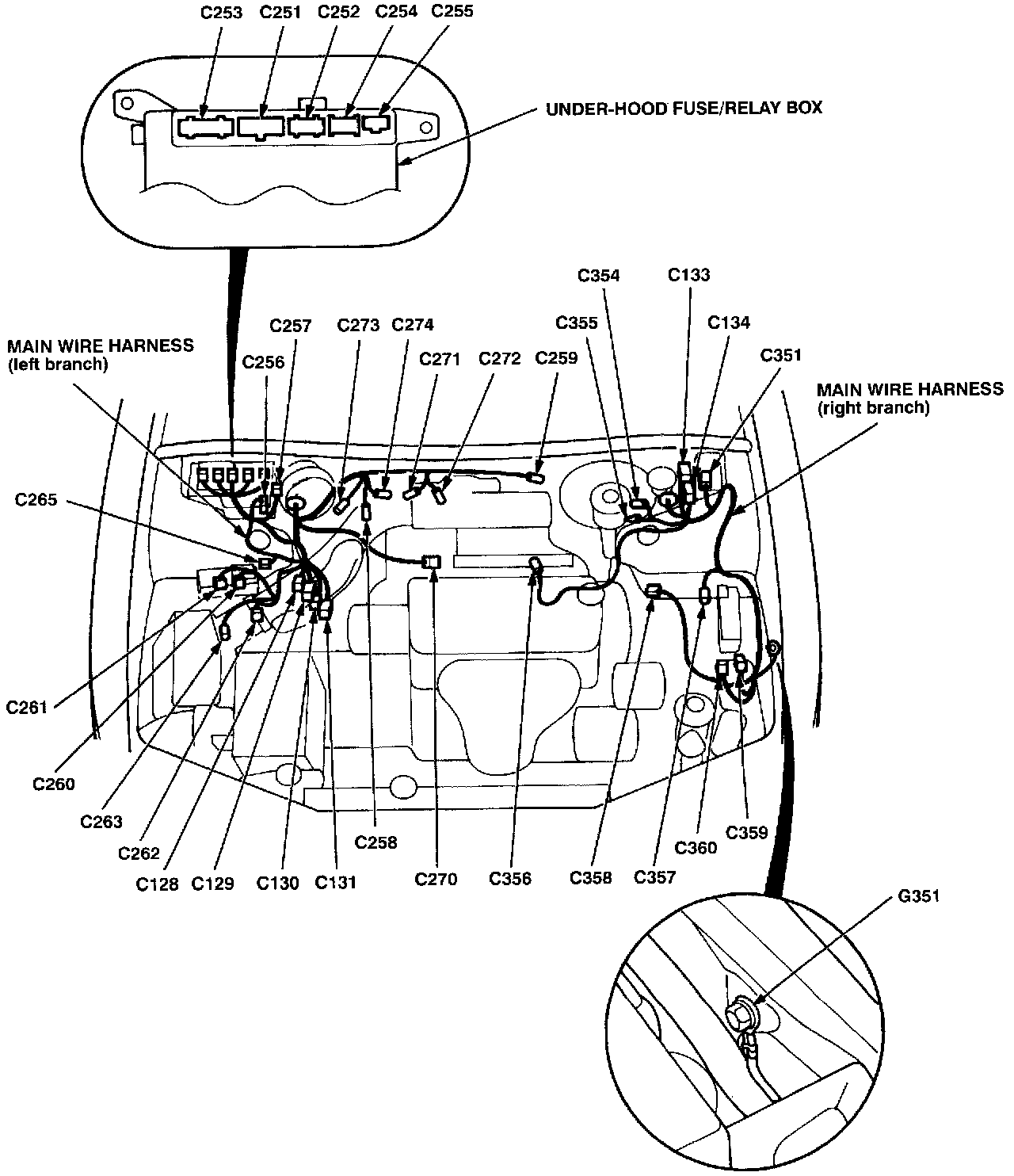

Main Wire Harness (Engine Compartment Left and Right Branches)
Main Wire Harness (Engine Compartment Left and Right Branches)

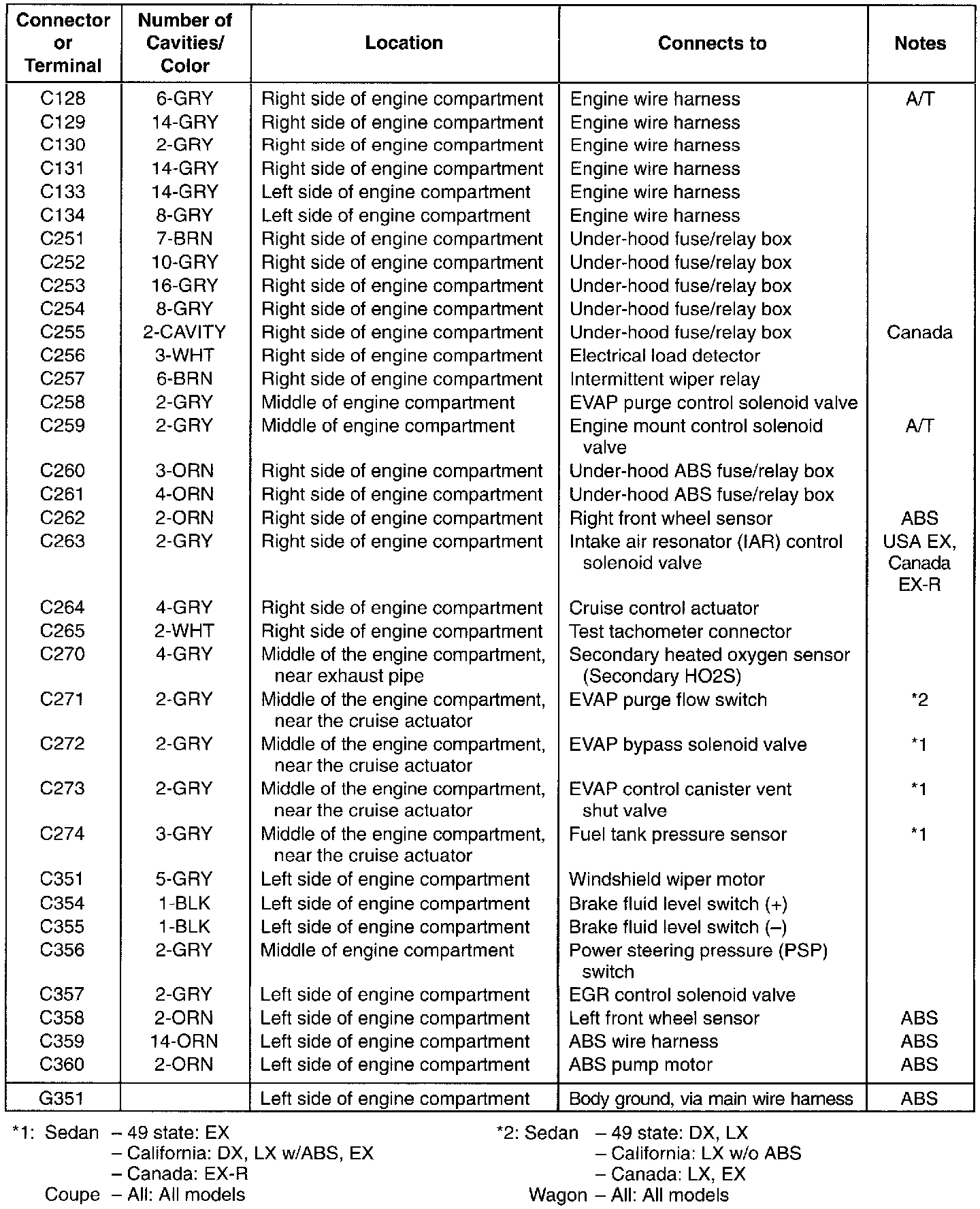

Main Wire Harness (Engine Compartment Left And Right Branches):
Main Wire Harness (Engine Compartment Left And Right Branches):
