Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Roof Wire Harness
Roof Wire Harness

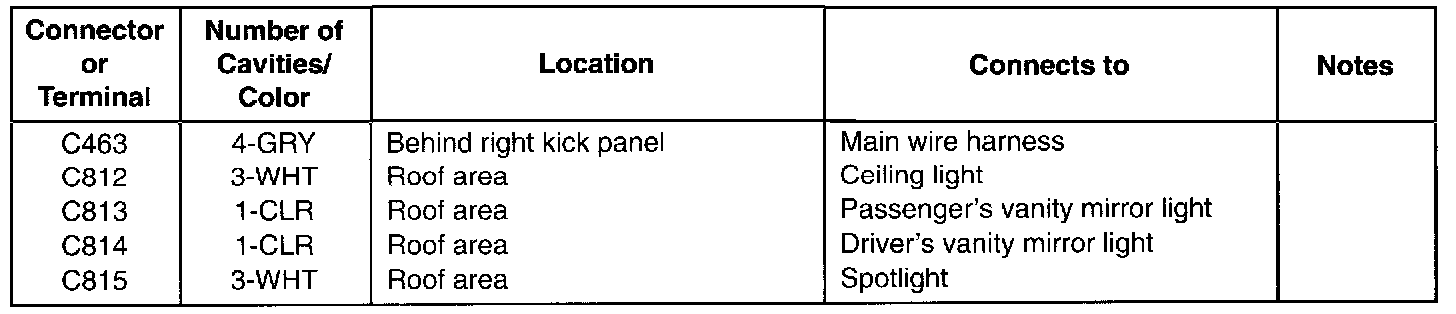

Roof Wire Harness:

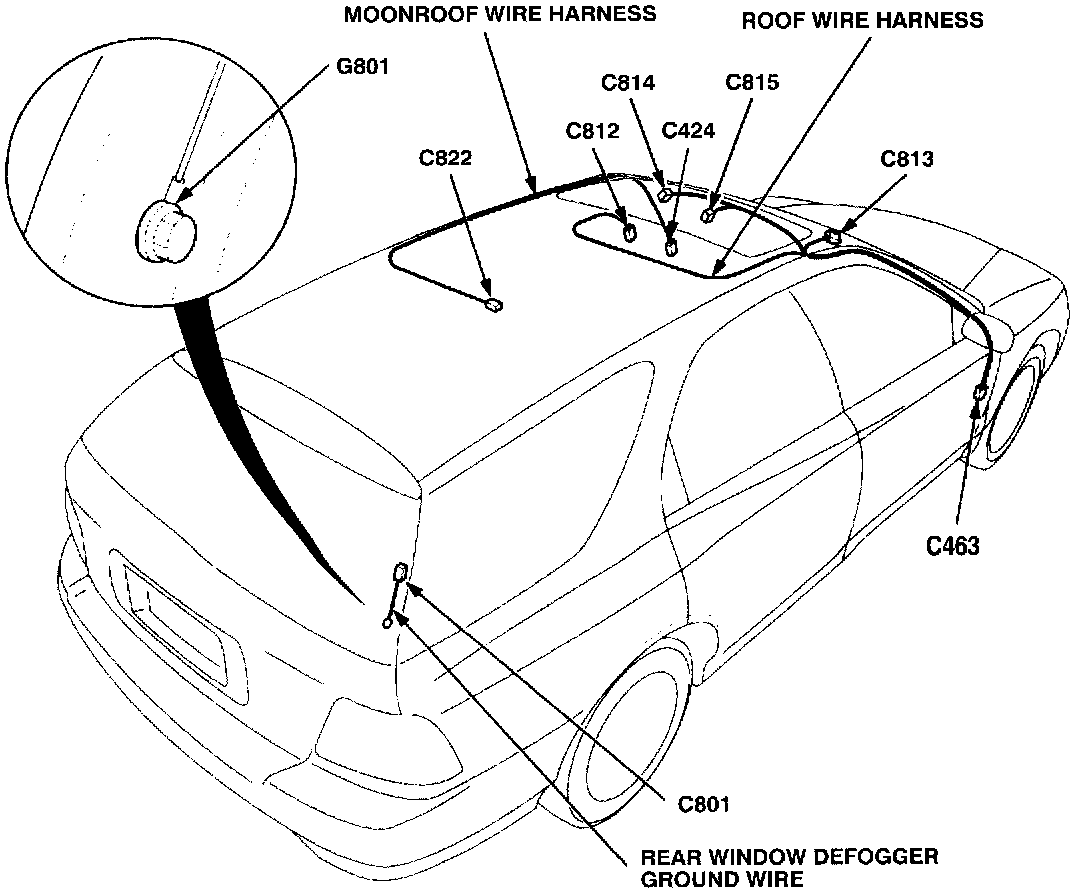

Wire Harness Routing:
