Diesel Data: Automotive Repair

Home >> Honda >> 1996 >> Accord Wagon L4-2.2L SOHC (16 Valve) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Thermostat >> Service and Repair

Thermostat: Service and Repair

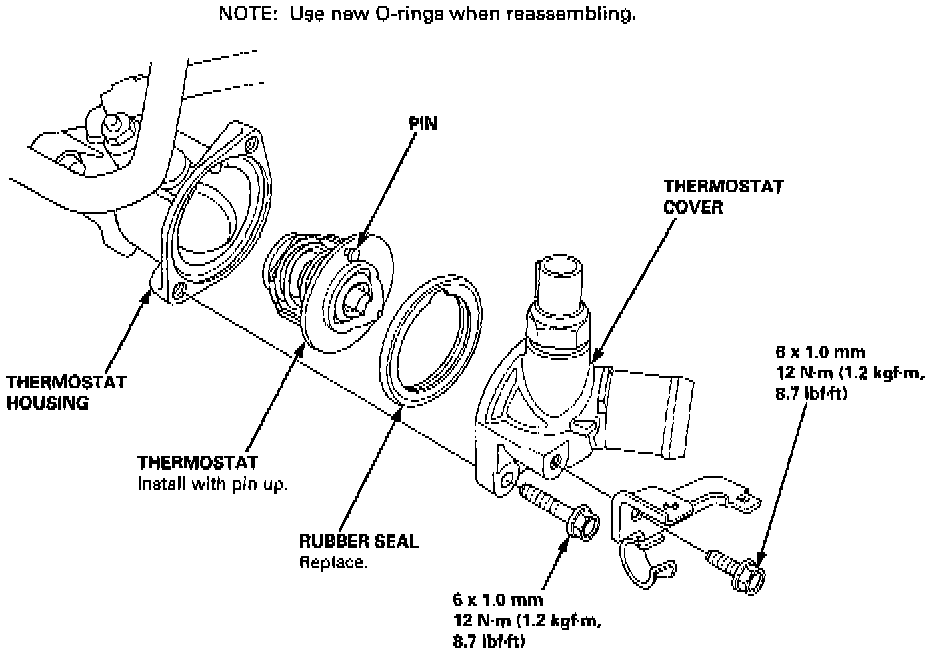

Fig. 65 Thermostat Replacement:

Refer to Fig. 65, for thermostat replacement.
