Installation

Installation

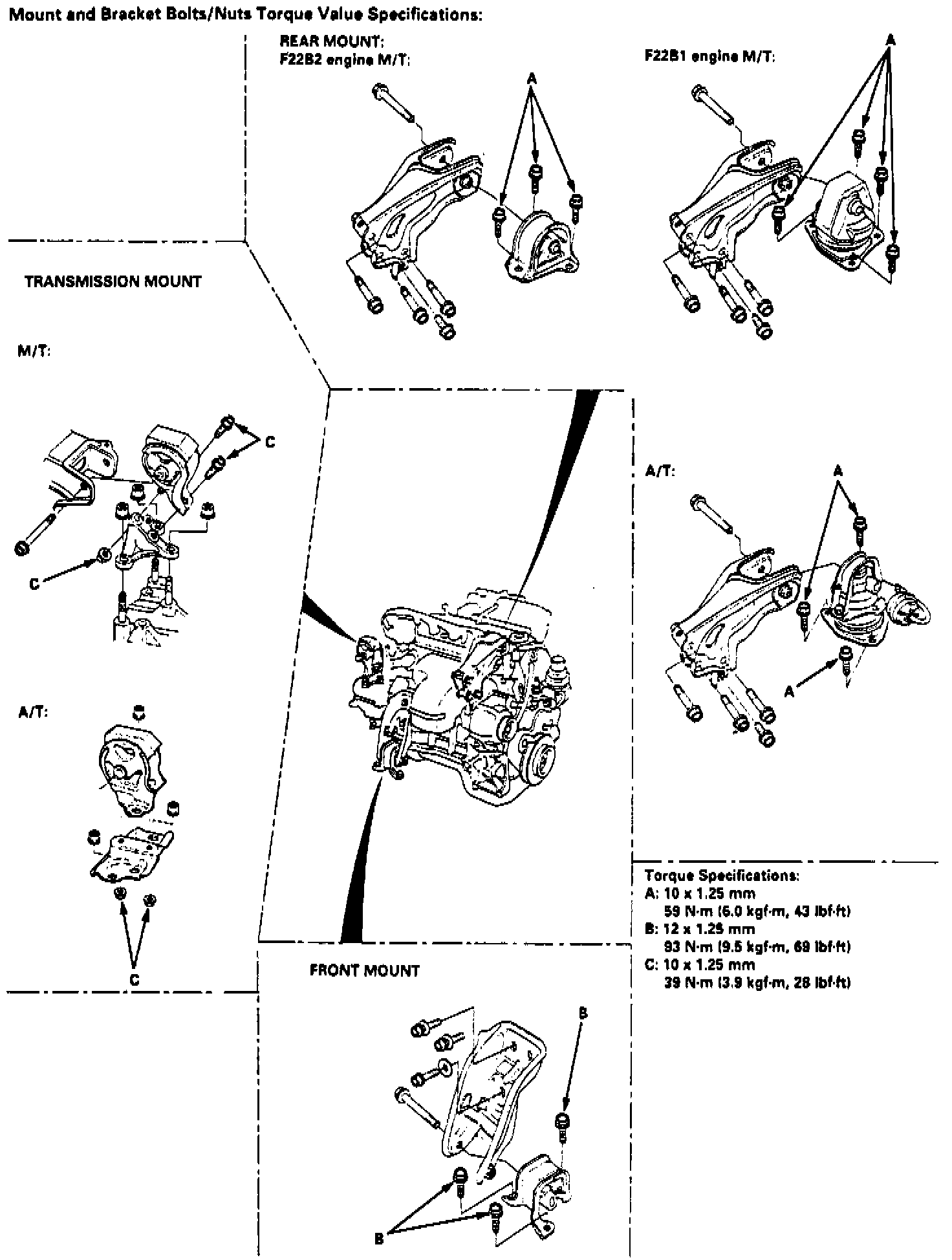

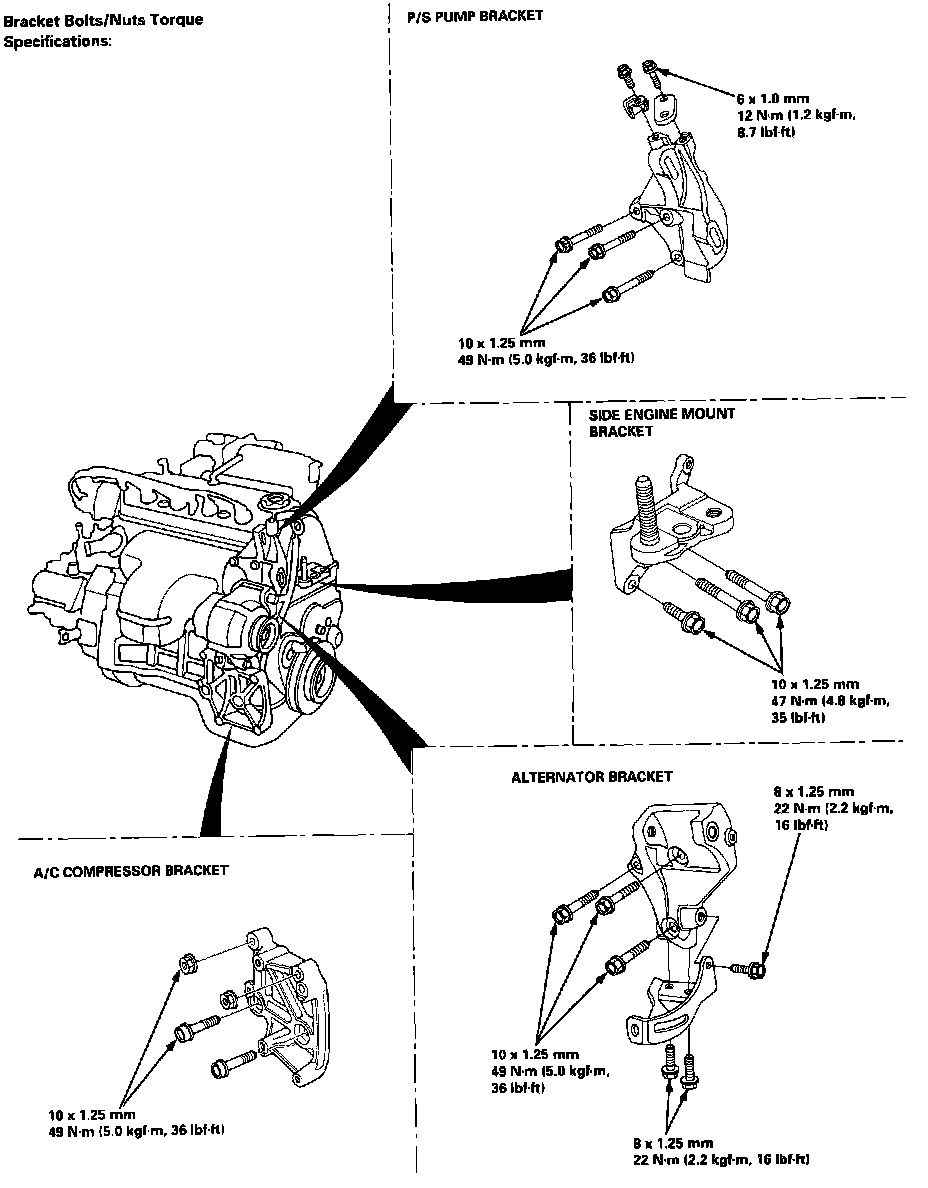

Bracket Bolts/Nuts Torque
Specifications:

Engine Installation
Install the engine in the reverse order of removal. Reinstall the mount bolts/nuts in the following sequence. Failure to follow these procedures may cause excessive noise and vibration, and reduce bushing life.

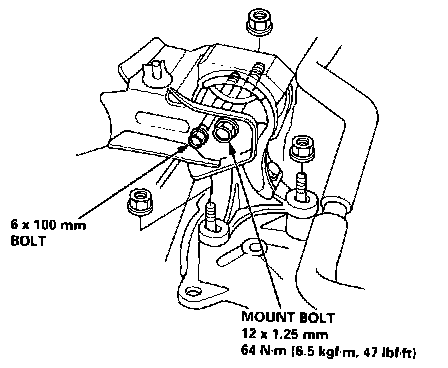

1. Position the side engine mount.

2. Tighten the mount bolt, then remove the 6 X 100 mm bolt.

NOTE: Do not tighten the bolt/nut on the engine side.

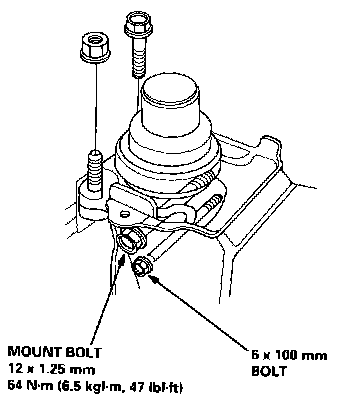

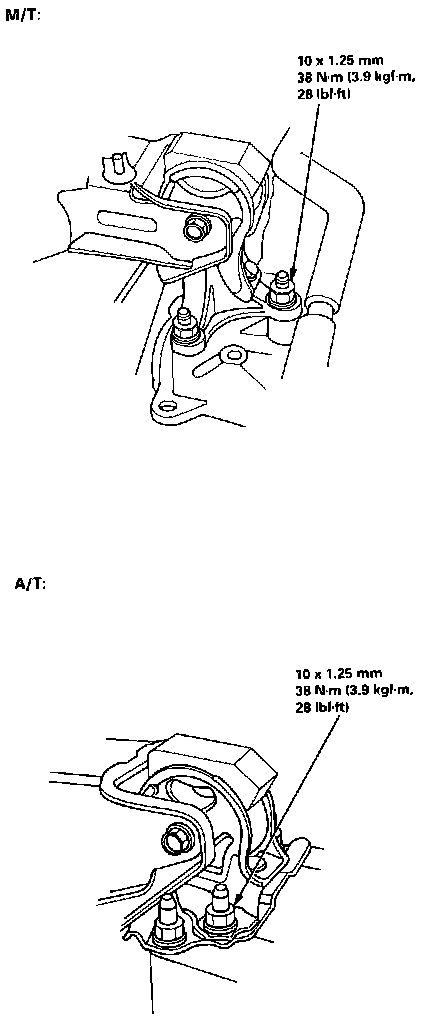

3. Position the transmission mount.

4. Tighten the mount bolt, then remove the 6 X 100 mm bolt.

NOTE: Do not tighten the nuts on the transmission side.

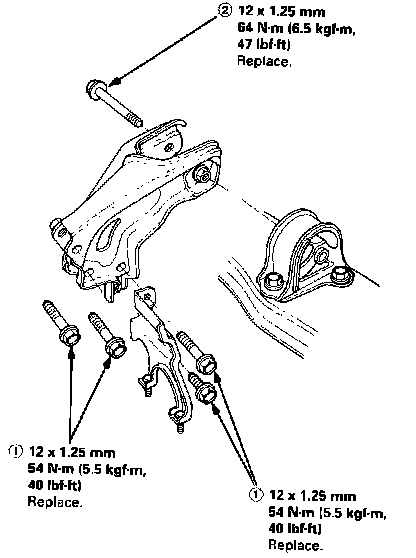

5. Install the rear mount bracket then tighten the bolts in the numbered sequence as shown (1) - (2).

- Except sedan LX without ABS model of Engine Serial Number: F22B2 - 21XXXXX.

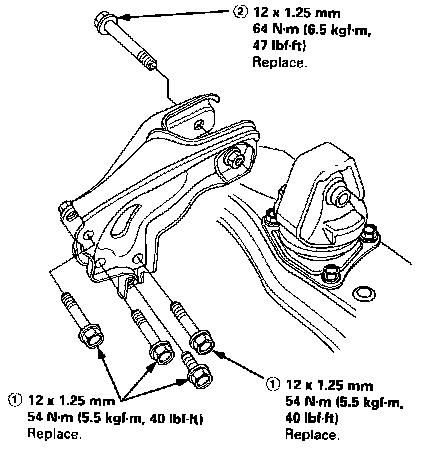

- Sedan LX without ABS model of engine Serial Number. F22B2 - 21XXXXX.

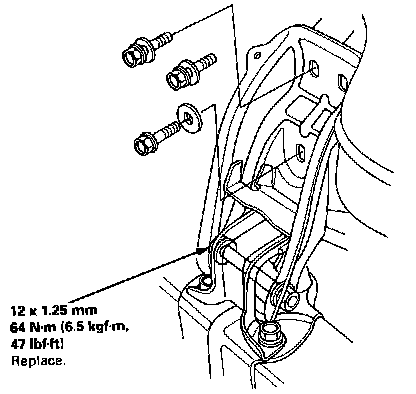

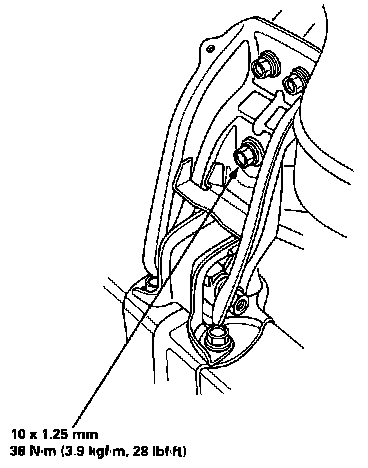

6. Install the front mount bracket then tighten the mount bolt.

NOTE: Do not tighten the bolts on the engine side.

7. tighten the bolt/nut on the side engine mount.

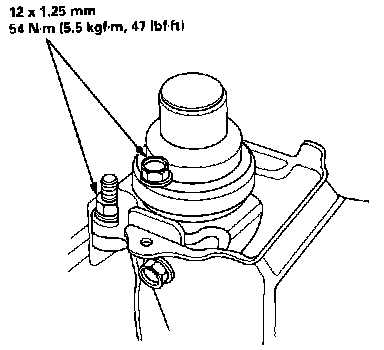

8. Thighten the nuts on the transmission mount.

9. Tghten the nuts on the transmission mount bracket.
- Check that the spring clip on the end on each driveshaft clicks into place.

CAUTION: Use new spring clips.

- Bleed air from the coollg system at the bleed bolt with the heater valve open.
- Adjust the throttle cable.
- Check the clutch pedal free play.
- Check that the transmission shifts into gear smoothly.
- Adjust the tension of the following drive belts.
Alternator belt.
P/S pump belt.
A/C compressor belt.
- Clean battery posts and cable terminals with sandpaper, assemble, then apply grease to prevent corrosion.
- Inspect for fuel leakage.
- After assembling fuel line parts, turn on the ignition switch (do not operate the starter) so that the fuel pump operates for approximately two seconds and the fuel line pressurizes. Repeat this operation two or three times, and check for fuel leakage at any point in the fuel line.

Installation

Fig. 2 Engine Mount Tightening Sequence:
