Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Diagrams
>>
Exploded Views
Exploded Views

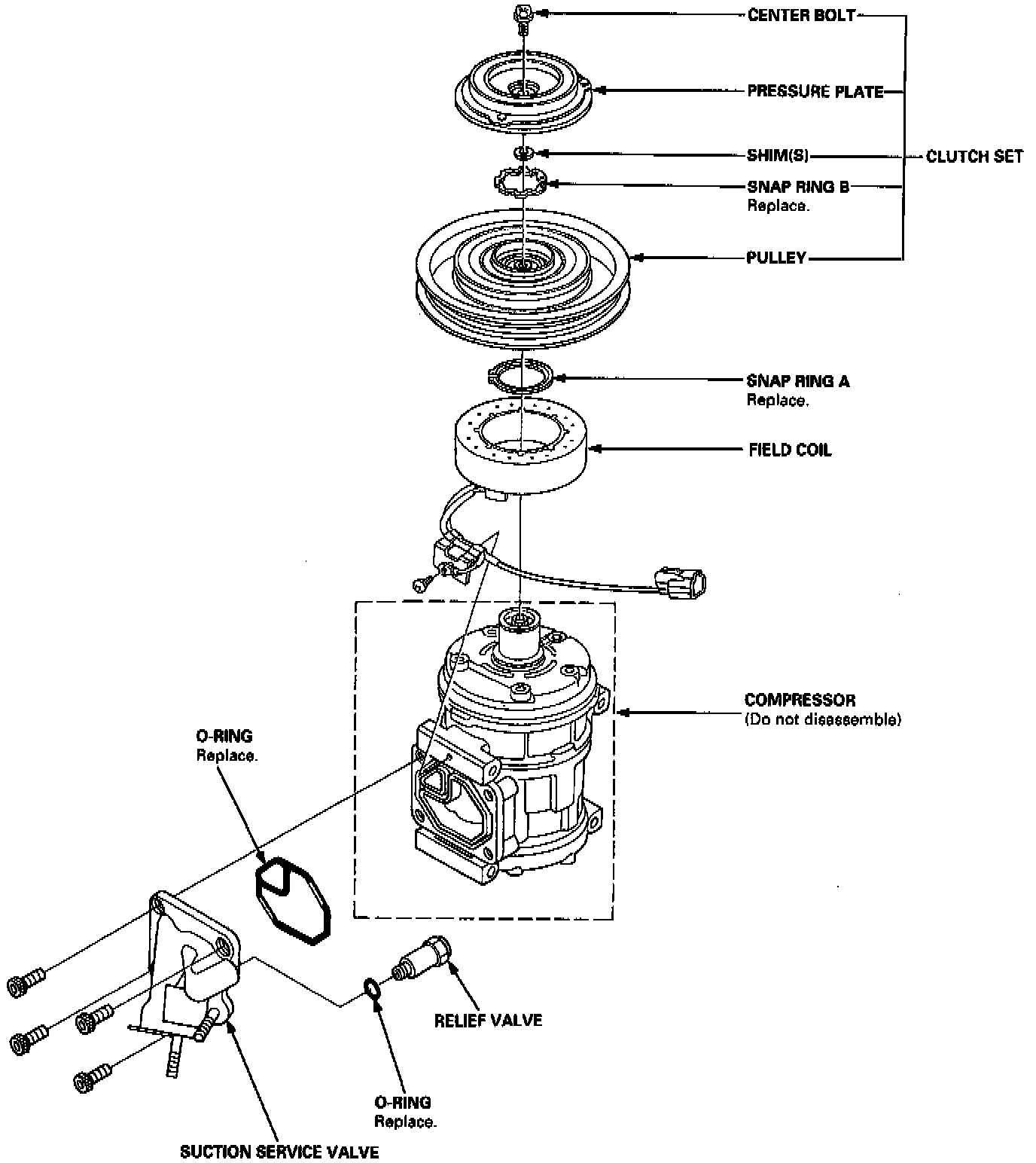

Nippondenso Compressor:
