Fuel Gauge Sender: Service and Repair

WARNING; Do not smoke while working on the fuel system Keep open flames away from your work area.

1. Remove both rear seat-backs, the spare tire lid, and the mid floor cover (Wagon).

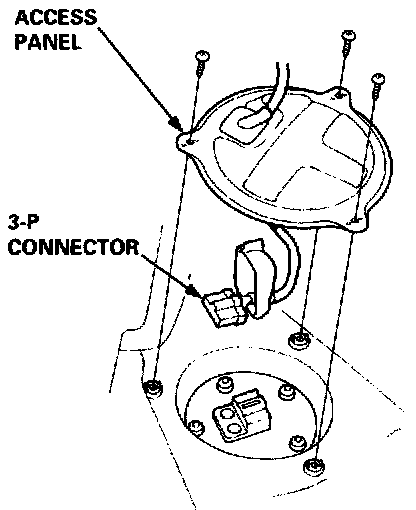

2. Remove the fuel tank access panel.






3. With the ignition switch OFF, disconnect the 3-P connector from the fuel gauge sending unit.

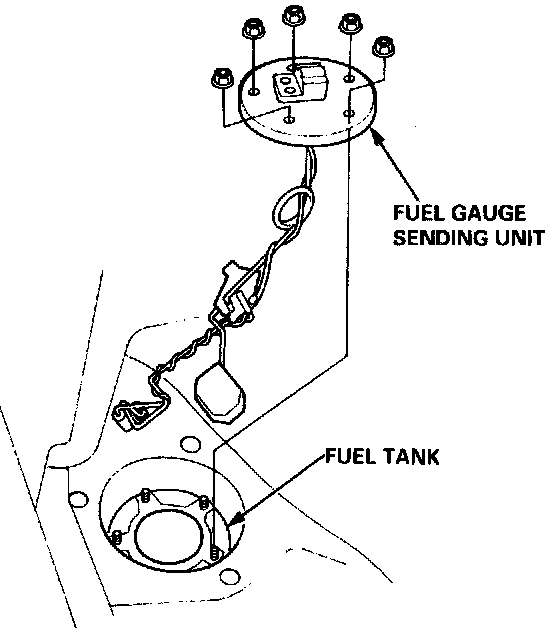

4. Remove the five nuts, and take the fuel gauge sending unit out of the fuel tank.

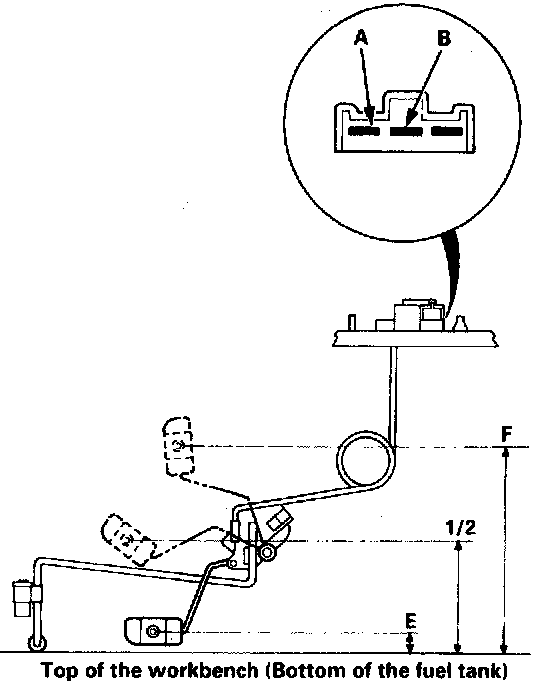

5. Measure the resistance between the A and B terminals at E (EMPTY), 1/2 (HALF FULL)and F (FULL) by moving the float.






If unable to obtain the above readings, replace the fuel gauge sending unit.
