Home >> Honda >> 1996 >> Accord Wagon L4-2.2L SOHC (16 Valve) >> Repair and Diagnosis >> Locations >> Harness Locations >> Engine Wire Harness >> DX, LX, Canada Ex

DX, LX, Canada Ex

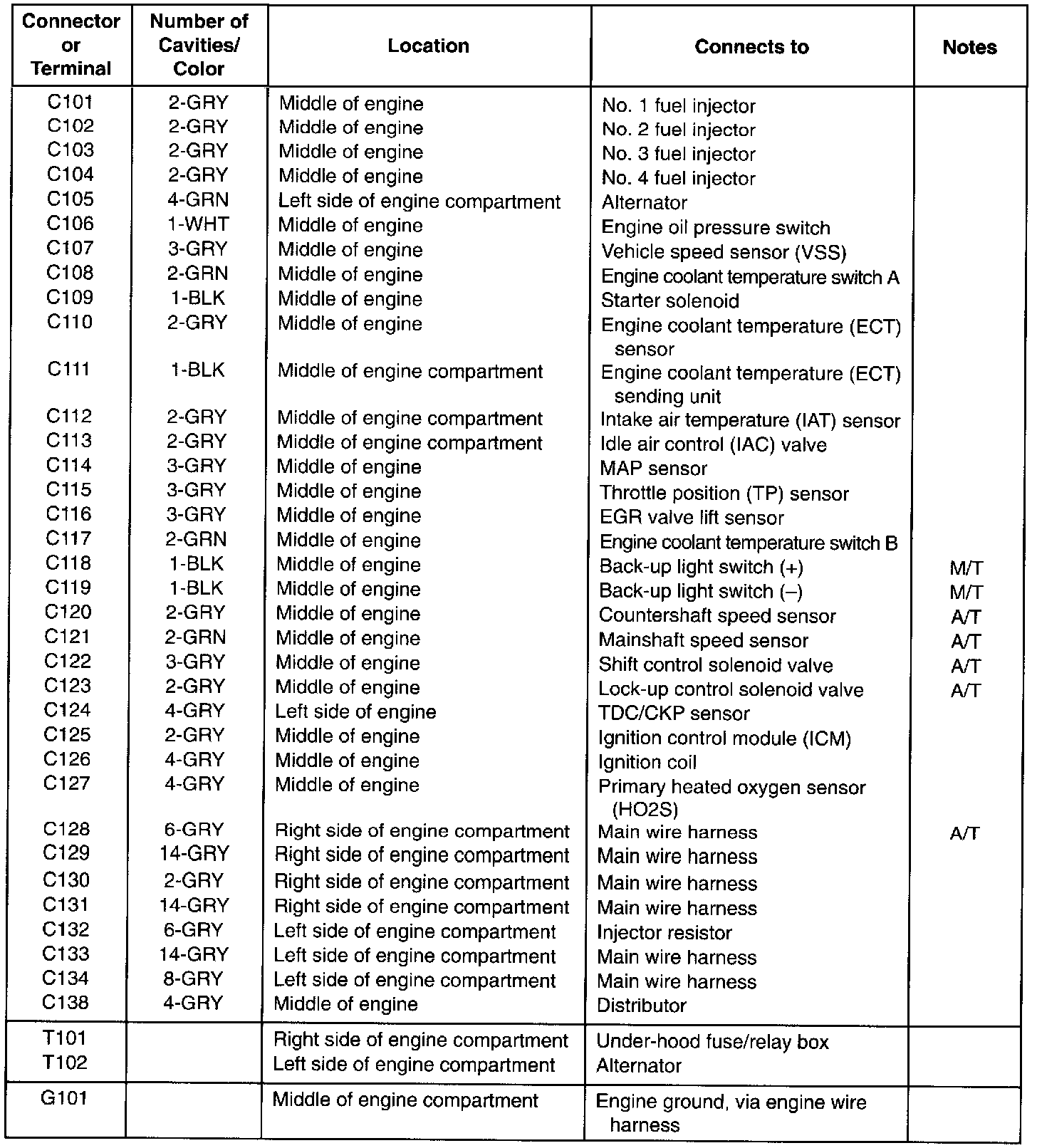

Engine Wire Harness (DX, LX, Canada EX):

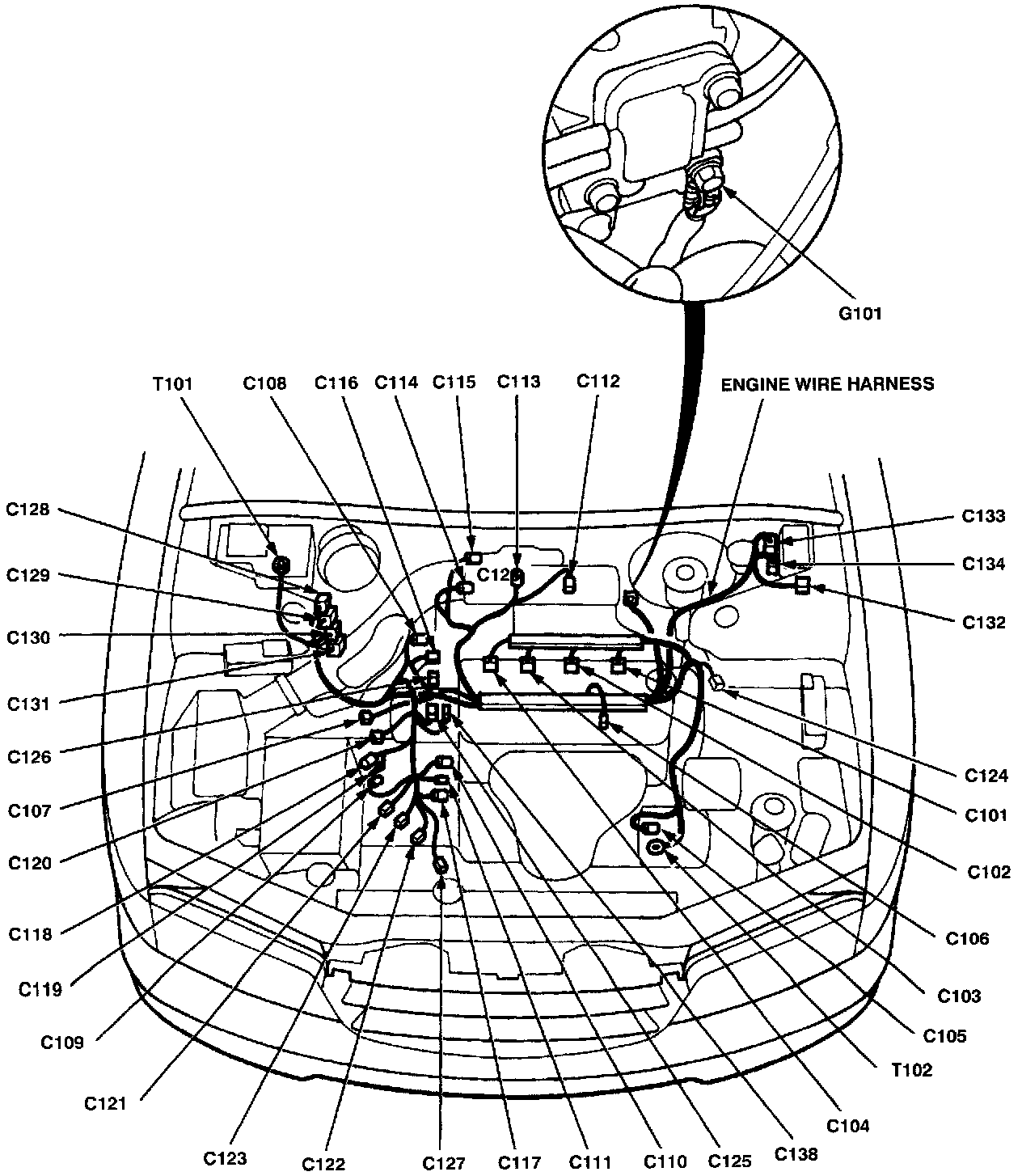

Engine Wire Harness (DX, LX, Canada EX):
