G1, G2, and G101

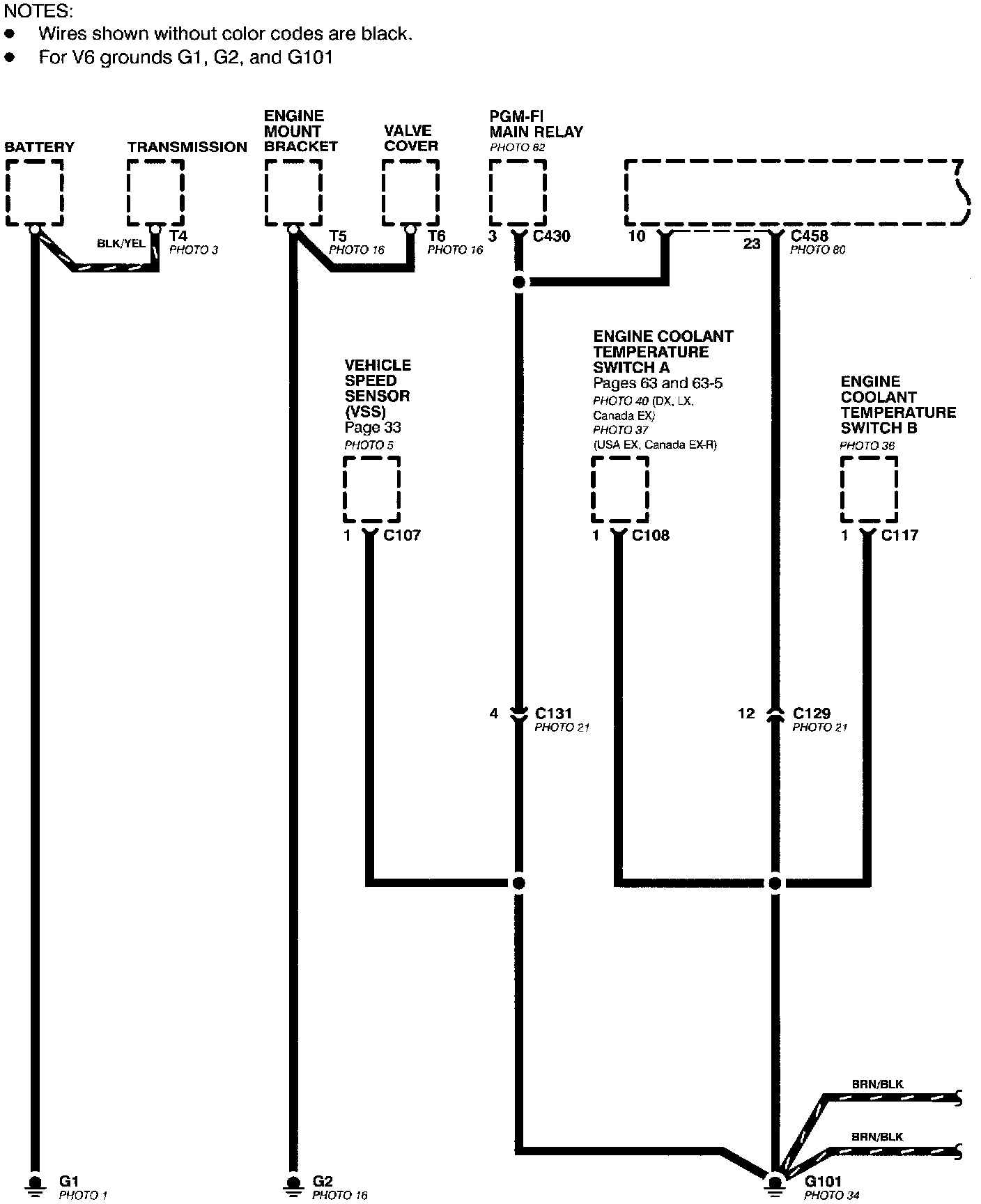

Ground Distribution - G1, And G101 (Part 1 Of 2):

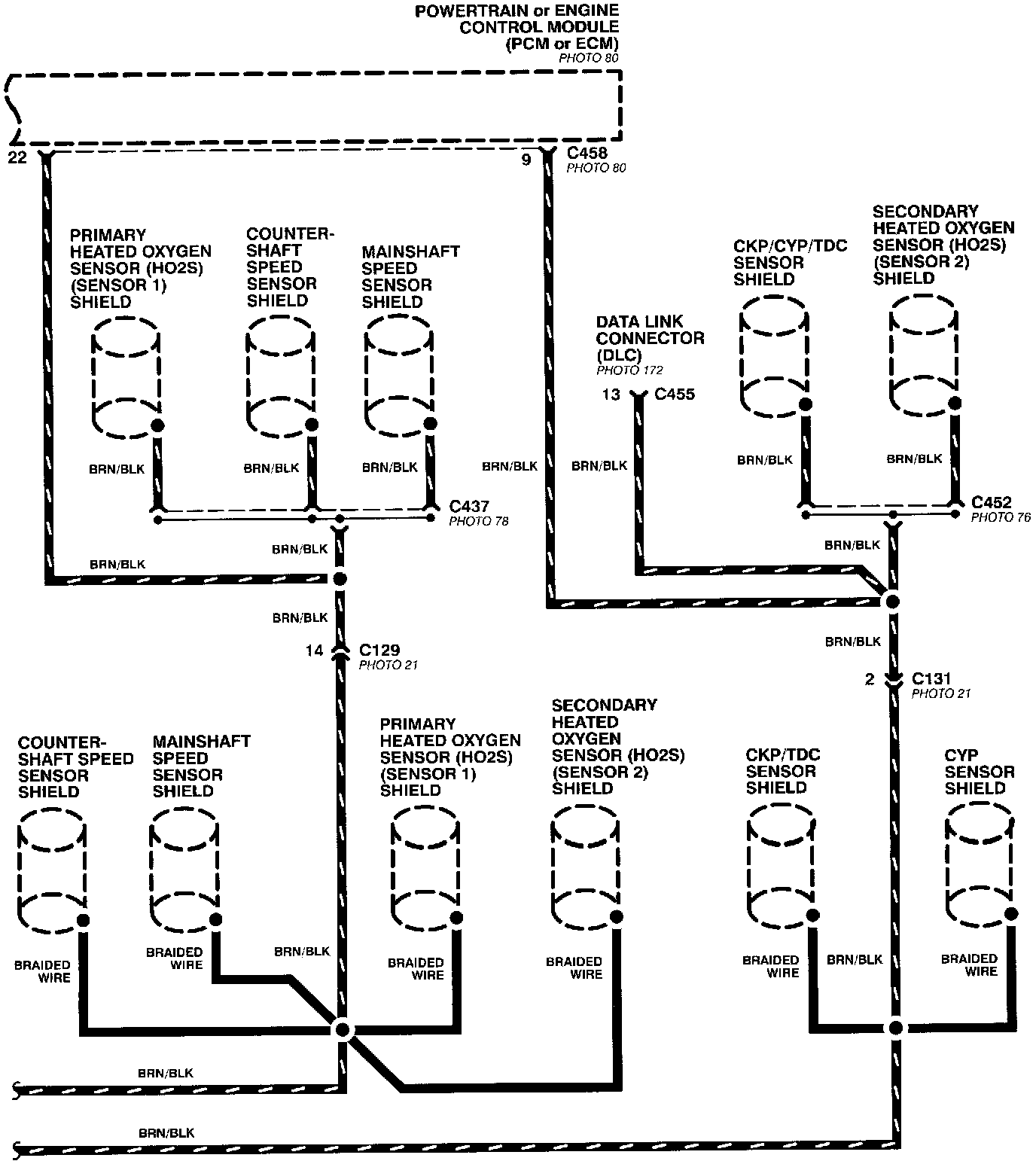

Ground Distribution - G1, And G101 (Part 2 Of 2):
