Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

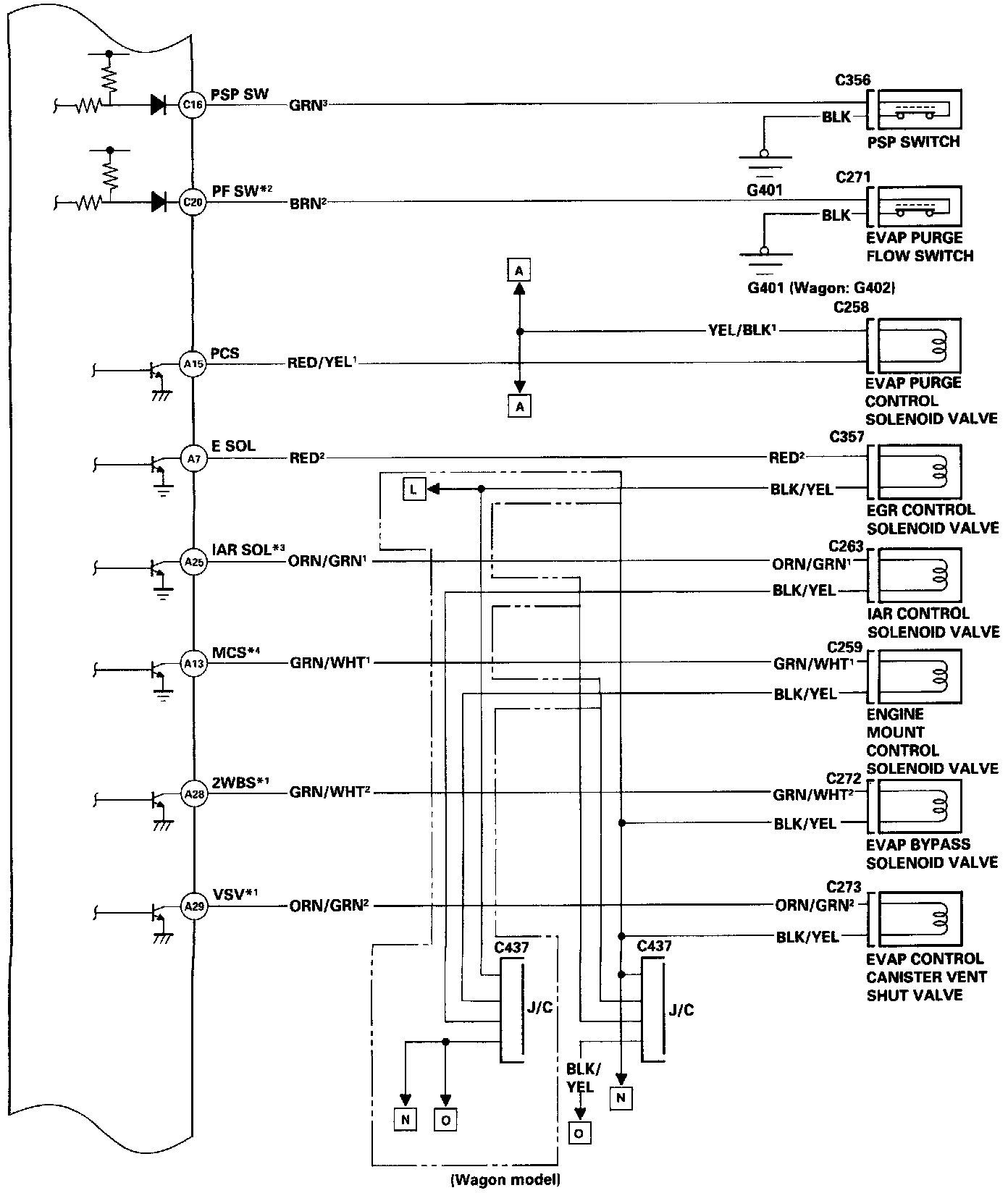

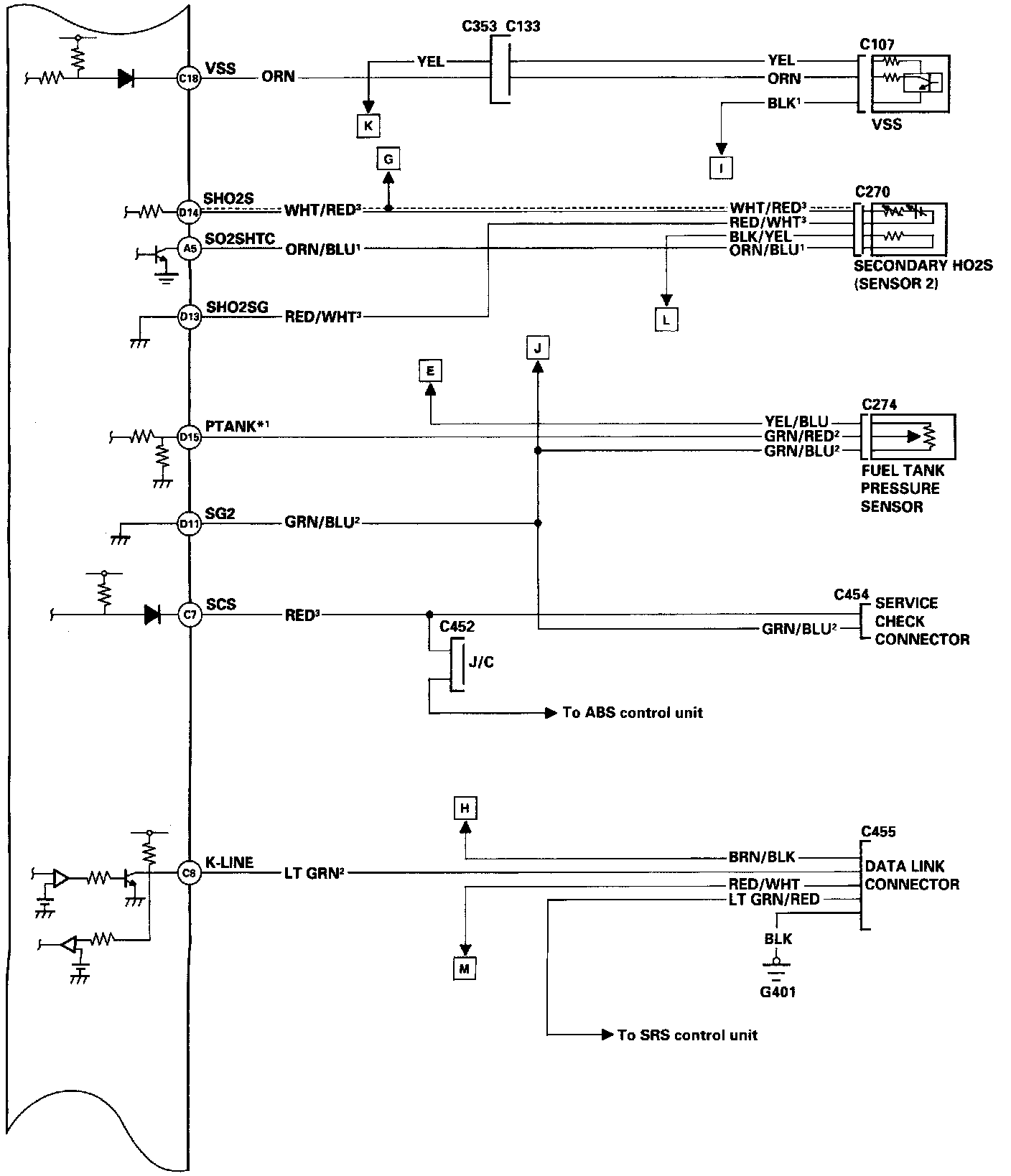

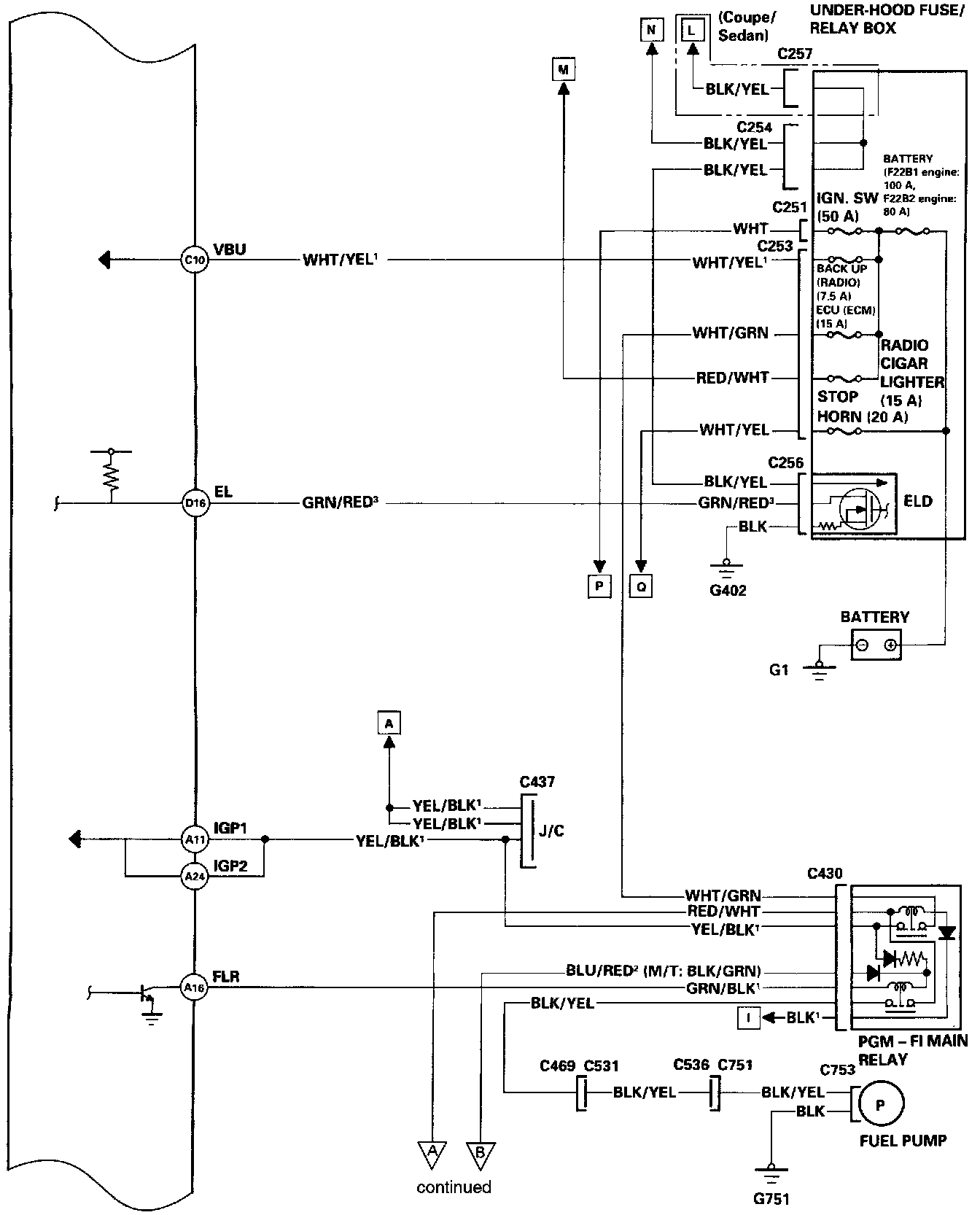

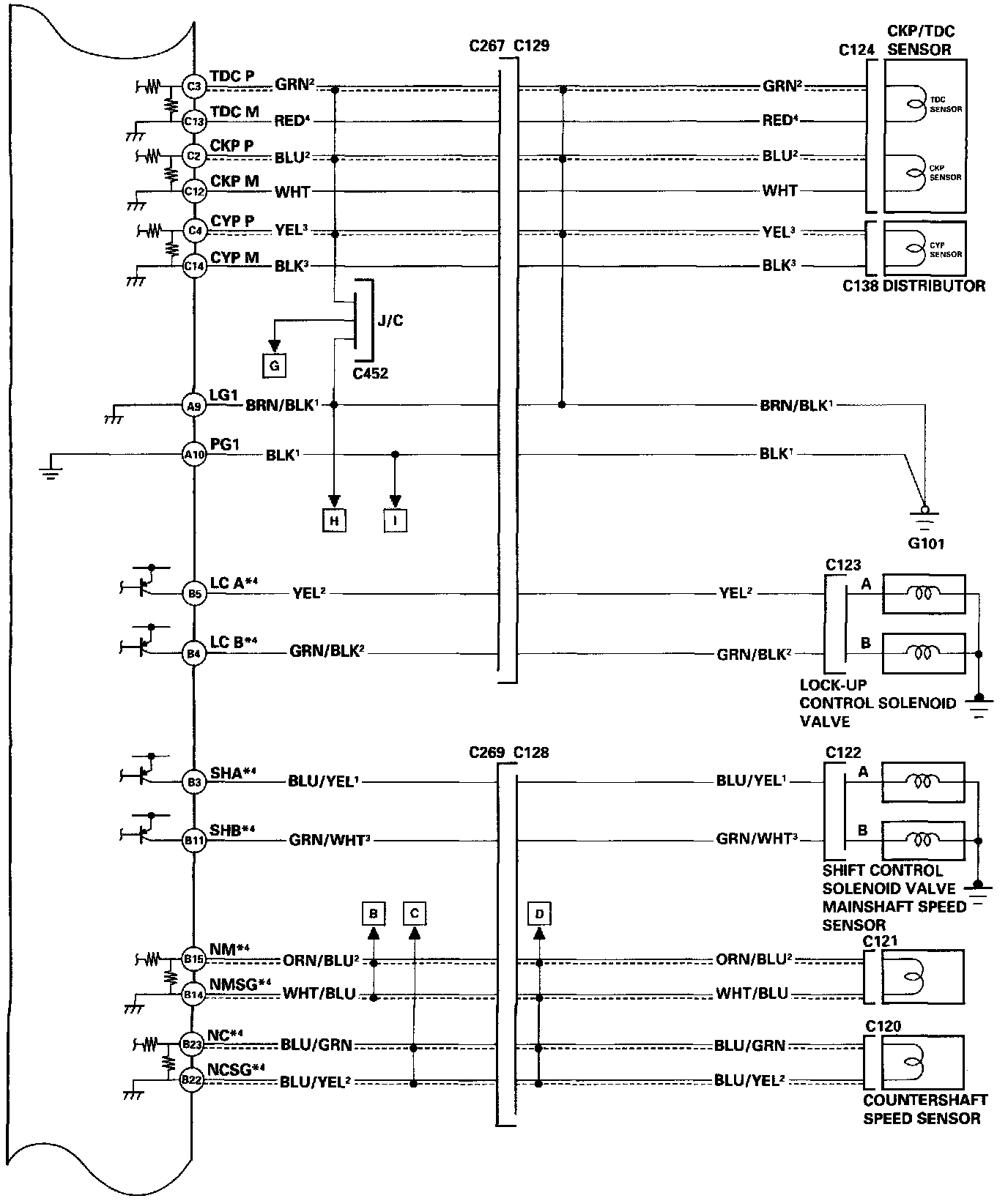

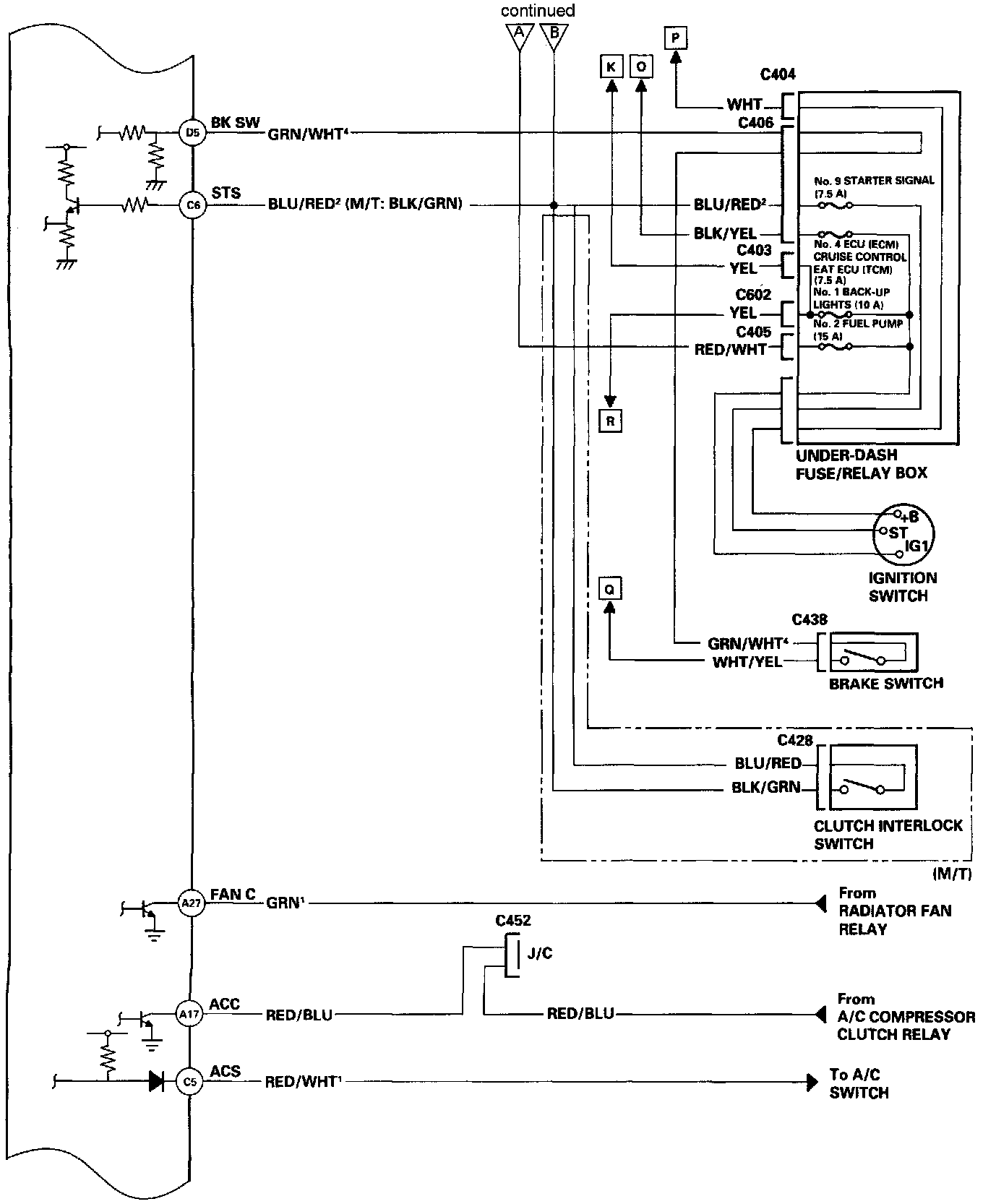

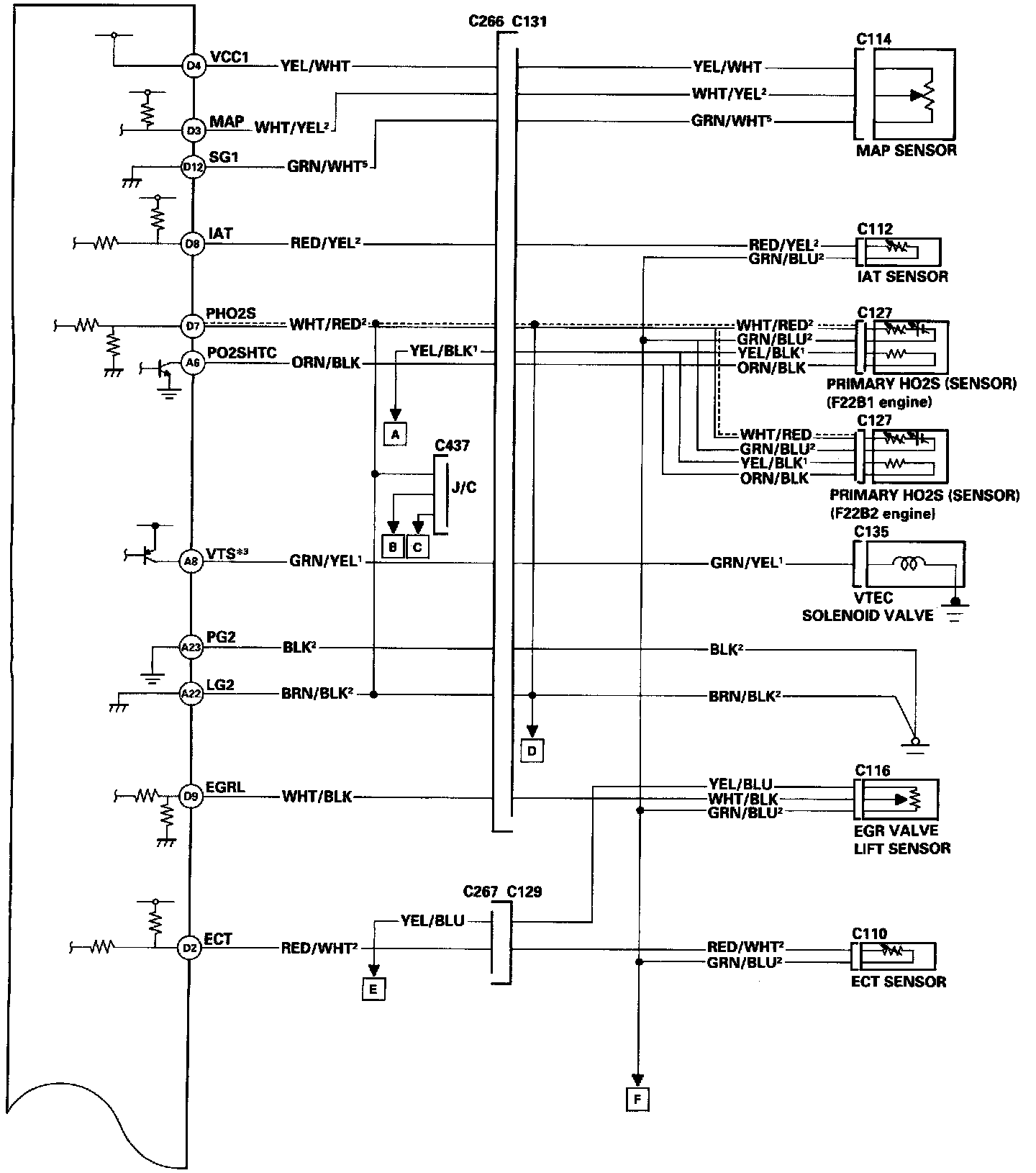

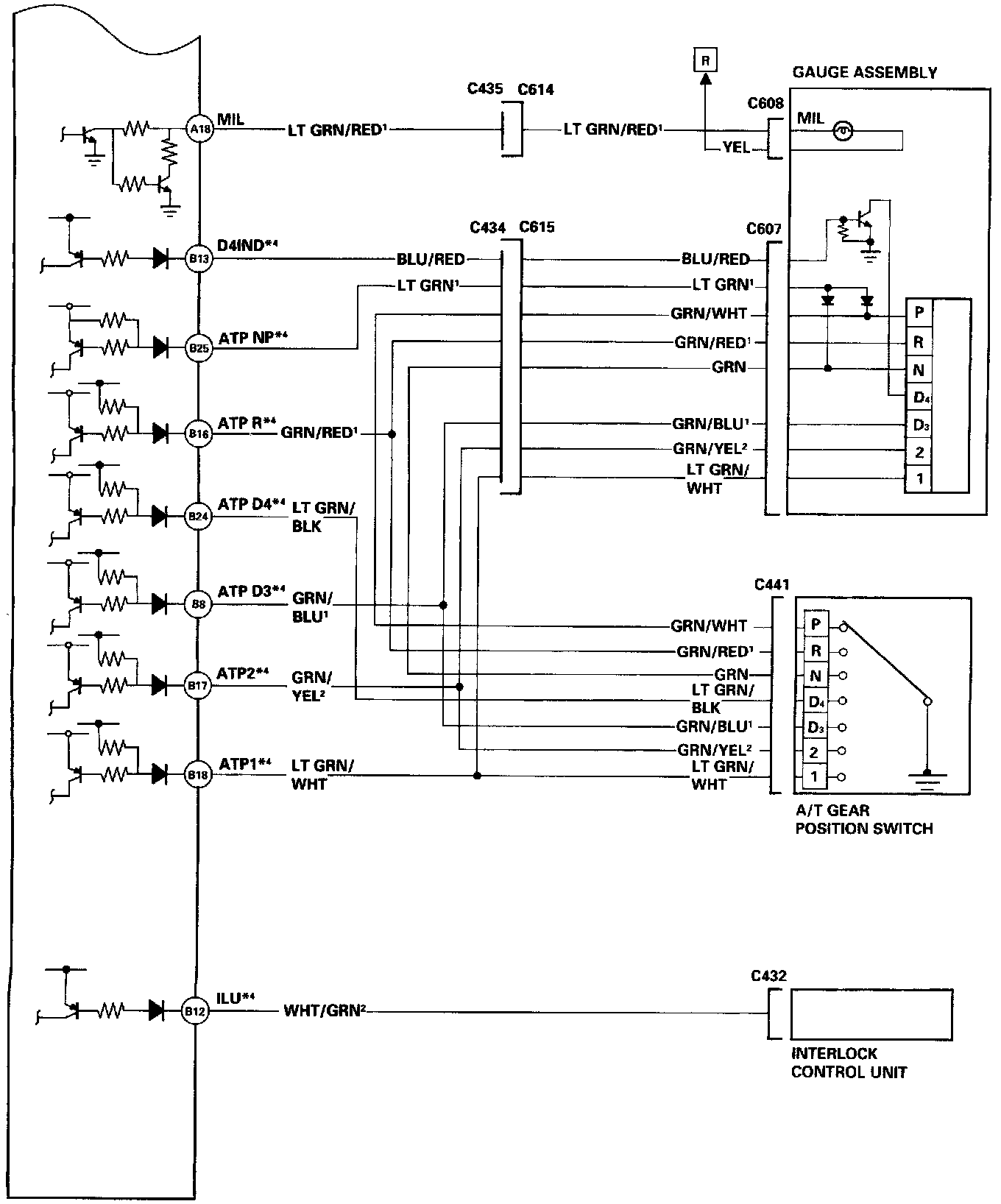

Electrical Connections
Electrical Connections
