Throttle Body: Service and Repair

REMOVAL

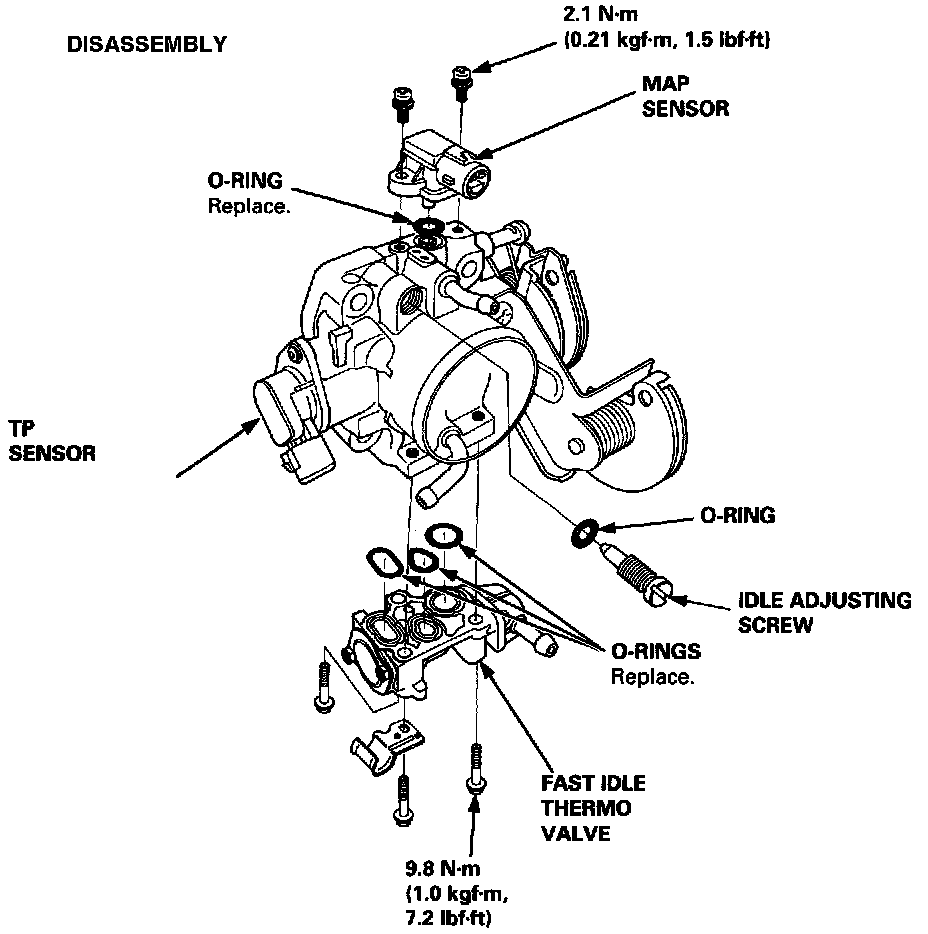

DISASSEMBLY

CAUTION:
- The throttle stop screw in non-adjustable.
- After reassembly, adjust the throttle cable, and cruise control cable.
- The TP sensor is not removable.
