Ignition Control System
Ignition Control System

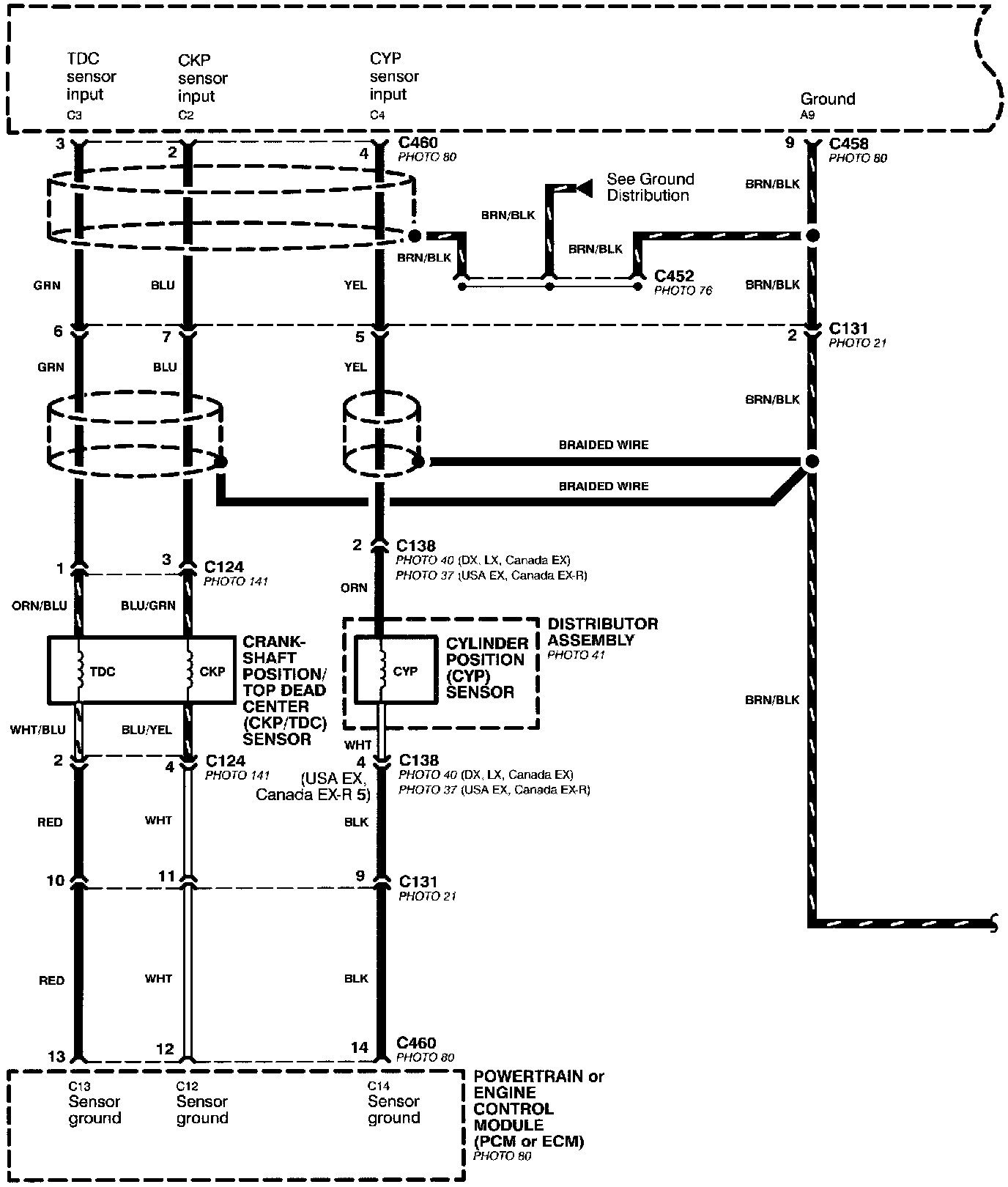

Programmed Fuel Injection System (PGM-FI) (Part 3 Of 6):

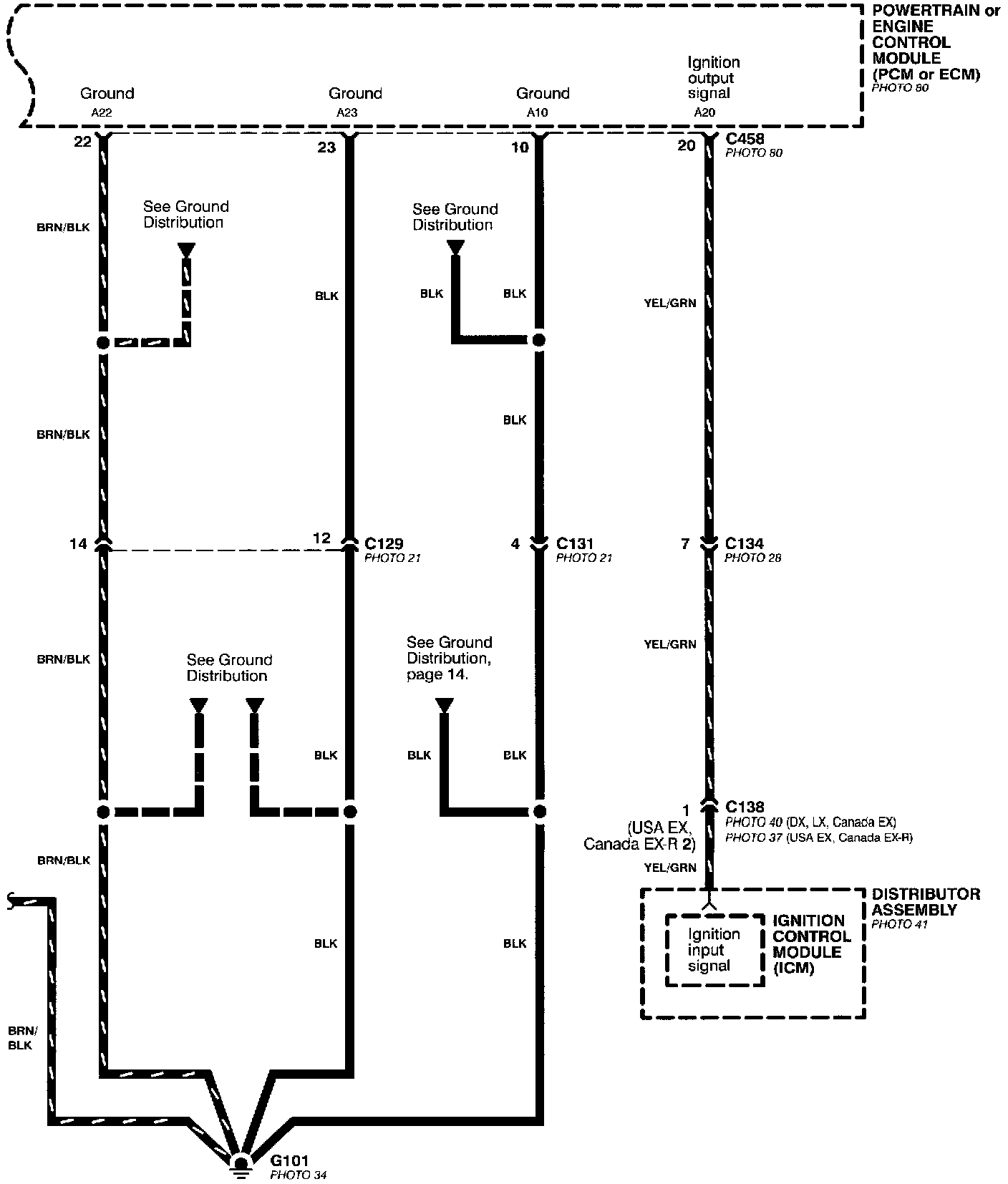

Programmed Fuel Injection System (PGM-FI) (Part 4 Of 6):
